Eaton 215645 EVG-3PHAS/9MODUL Euro-Vario busbar Ie=63A

Your rating:
Average rating
product review for Eaton 215645 EVG-3PHAS/9MODUL Euro-Vario busbar Ie=63A
( 4.2 / 5 ) 9 ratings

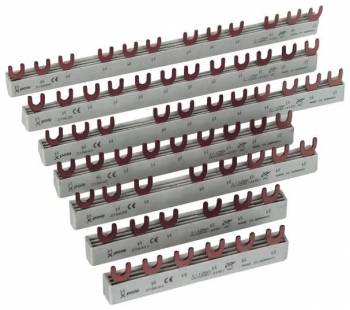

Eaton 215645
This image may differ from the desired article.
Eaton 215645Eaton 215645Eaton 215645
9,65 EUR
incl. 0,46 EUR copper surcharge
( 11,48 EUR incl. VAT )
≈ £8.08  |  ≈ $10.61
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x Eaton 215645 EVG-3PHAS/9MODUL Euro-Vario busbar Ie=63A
Datasheet:file_download Download
Lieske Part No.:374624
Mfg Part No: 215645
UPC/EAN: 9010238140318
Weight:0.123 kg
Type:EVG-3PHAS/9MODUL
Graduated prices net
From piecesPrice per pieces
259,10 EUR
508,55 EUR
1008,00 EUR
2507,44 EUR

Product information for Eaton 215645:

The Eaton EVG-3PHAS/9MODUL is a busbar for use in meter enclosures and distribution systems. It is specifically designed for mounting in Euro-Vario distributors and serves for safe and efficient power distribution over three phases. The busbar is finished in red and enables a compact, reliable connection of power switches, fuses, and other components within the enclosure. The design is intended for reduced mounting time, with the manufacturer stating a saving of up to 30 % compared to conventional solutions.

Applications

The busbar is intended for use in industrial and commercial electrical installations, particularly in distribution boxes with Euro-Vario module system. It is suitable for installations where stable and secure power distribution over three phases is required. The busbar is rated for a nominal current of 63 A, making it suitable for typical distribution systems in electrical installations. It is used in enclosed enclosures, where it functions as a central power distribution unit.

Functions and Equipment in Detail

A central feature of the EVG-3PHAS/9MODUL is the minimization of flashovers, which increases electrical safety. The construction of the busbar prevents unintended electrical discharges between the individual phases, especially at high voltages or under mechanical stress. Another advantage is the elimination of end caps – these are not required during installation, simplifying and accelerating the process. The busbar is equipped with a fork connection, ensuring a secure and mechanically stable connection to connected components.

Technology Explained Simply

The busbar is designed for a cross-section of 10 mm², which allows sufficient power transmission for the nominal load of 63 A. The 9-TE form factor (technical unit) corresponds to the standard for Euro-Vario modules and enables compact mounting in distribution boxes with modular construction. The red colouring serves as visual identification and facilitates phase recognition within the enclosure.

Compatibility and Accessories

The EVG-3PHAS/9MODUL is specifically developed for use in Euro-Vario distributors and adapts to the modular system. It is compatible with components mounted in 9-TE modules, such as power switches, fuses, or other distribution elements. The busbar is designed for use in 3-phase systems and enables simultaneous power distribution over three conductors. The specification “10qmm” refers to the cross-section of the busbar, which is sufficient for the nominal current of 63 A.

Mounting and Installation

Mounting is carried out in an Euro-Vario distributor, where the busbar is inserted into the designated mounting sockets. The fork connection allows for a direct and secure connection to connected components. Due to the design, end caps are not required, reducing mounting time. Installation is performed by inserting into the module unit, with no additional tools or mounting aids required.

Advantages in Operation

The EVG-3PHAS/9MODUL provides safe and reliable power distribution over three phases. The minimization of flashovers increases electrical safety during operation. The elimination of end caps and the compact design reduce mounting time and facilitate maintenance. The busbar is rated for a nominal current of 63 A, making it suitable for typical distribution systems. Use in Euro-Vario systems ensures standardized and modular integration into existing installations.

Features
Product colourRed
Quantity per pack1 pc(s)


Please note...
This article contains a copper surcharge of 0,46 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Eaton 215645, EAN: 9010238140318

Questions & answers

What is the delivery time of Eaton 215645 EVG-3PHAS/9MODUL Euro-Vario busbar Ie=63A ?

The article Eaton 215645 EVG-3PHAS/9MODUL Euro-Vario busbar Ie=63A is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 215645 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 215645 EVG-3PHAS/9MODUL Euro-Vario busbar Ie=63A always at the best possible price. We can give you a discount of 2% on Eaton 215645 EVG-3PHAS/9MODUL Euro-Vario busbar Ie=63A if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of Eaton 215645 EVG-3PHAS/9MODUL Euro-Vario busbar Ie=63A we can offer you a price of 9,10 EUR per piece. The more you buy, the cheaper the article will be.
