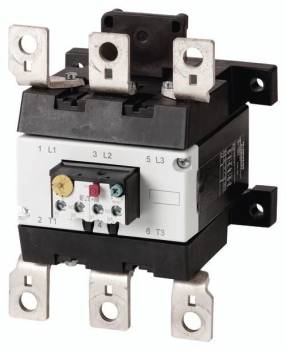

Eaton 210071 Z5-100/FF250 motor protection relay 70-100 A 1NO1NC
|
369,76 EUR |
|||||||||||
|
incl. 7,86 EUR copper surcharge ( 440,01 EUR incl. VAT ) ≈ £309.49 | ≈ $406.37 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |||||||||||
| In Stock: 1 pieces | |||||||||||
| Lieske Part No.: | 580424 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 210071 | ||||||||||
| UPC/EAN: | 4015082100711 | ||||||||||
| Weight: | 1.842 kg | ||||||||||
| Type: | Z5-100/FF250 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 210071:
Applications
This relay is intended for use in industrial drive systems, particularly in installations operating with power contactors of the DILM250 series. It protects motors with a rated current range of 70 to 100 amperes. Applications include environments where reliable motor monitoring is required, such as in manufacturing, process engineering, or pump and fan systems. Phase failure sensitivity according to IEC/EN and VDE Part 102 ensures the device responds to the failure of one or more phases to protect the motor from damage.
Functions and Features in Detail
The relay includes a Test/Off button, enabling functional testing of the protection system without operating the motor. A Reset button allows resetting the relay to operational state, with options for manual or automatic reset. The free release ensures the relay disconnects the motor from the supply safely, independent of control. The auxiliary contacts consist of one normally open (1S) and one normally closed (1Oe) contact, usable for actuating signal or control devices.
Technology Explained Simply
The relay monitors the motor’s current consumption and responds when the set threshold is exceeded or in case of phase failure. Adjustment is made via a rotary dial covering the rated current range of 70 to 100 A. The protection functions are tailored to industrial drive requirements, with response time and sensitivity complying with IEC/EN and VDE Part 102 standards. The protection rating IP00 means the device is not protected against dust or water and must therefore only be used in enclosed, dry enclosures or environments without direct exposure to moisture or mechanical influences.
Compatibility and Accessories
The relay is specifically designed for use with power contactors of the DILM250 series. It can be mounted directly onto these contactors without additional brackets. Accessories include various button plates and terminal covers, for example, the flat red-labeled STOP button plate or the terminal cover Z5/FF250. These components improve operability and safety during commissioning and maintenance.
Mounting and Installation
Mounting is achieved by directly clipping the relay onto the DILM250 power contactor. No additional fastening is required. Electrical connections are made via integrated terminals connected to the respective wires. The auxiliary contacts are intended for controlling external devices and must be integrated accordingly into the control system. Installation must take place in a closed enclosure, as the IP00 protection rating does not allow direct exposure to environmental conditions.
Operational Advantages
The relay provides reliable motor monitoring with integrated protection functions safeguarding the motor against thermal and mechanical damage. Direct mounting on the contactor reduces installation time and space requirements. Integrated auxiliary contacts enable easy integration into existing control and signaling systems. Compliance with IEC/EN, VDE, UL, and CSA standards ensures conformity with international safety requirements.
Protection Rating and Environmental Conditions
The IP00 protection rating means the device is not protected against dust, water, or mechanical impacts. It must therefore only be operated in enclosed, dry enclosures protected from external influences.
| General | |
| Degree of protection | IP00 |
| Phase failure sensitivity | IEC/EN, VDE part 102 |
| Auxiliary contacts Normally open (NO) | 1 |
| Auxiliary contacts normally closed (NC) | 1 |
| Mounting type | Direct mounting |
| Application range | 70-100A |
| Suitable for | DILM250 |
| Standards and regulations | IEC/EN, VDE, UL, CSA |
| Functions | Test/Off button, Reset button Manual/Auto, Free release |
| Assortment | motor protection relay Z5 |
