Eaton 208295 DILM820-XKB-S belt terminals for DILM750/820 (3 pcs)

Your rating:
Average rating
product review for Eaton 208295 DILM820-XKB-S belt terminals for DILM750/820 (3 pcs)
( 4.9 / 5 ) 9 ratings

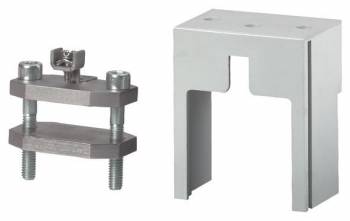

Eaton 208295
This image may differ from the desired article.
Eaton 208295Eaton 208295
137,73 EUR 143,53 EUR
( 163,90 EUR incl. VAT )
≈ £115.28  |  ≈ $151.37
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Eaton 208295 DILM820-XKB-S belt terminals for DILM750/820 (3 pcs)
Lieske Part No.:269295
Mfg Part No: 208295
UPC/EAN: 4015082082956
Weight:0.884 kg
Type:DILM820-XKB-S
Graduated prices net
From piecesPrice per pieces
5133,60 EUR
10129,47 EUR
15125,33 EUR
20121,20 EUR

Product information for Eaton 208295:

The article DILM820-XKB-S from Eaton is a flat ribbon cable terminal set, specifically developed for use with power contactors of the DILM580, DILM650, DILM750, and DILM820 series. It serves as accessory for secure and reliable connection of flat ribbon cables to the main contacts of the contactors. The terminals enable a stable electrical connection, which is required for operation in industrial applications with high current loads. The design is adapted to the mechanical and electrical requirements of the specified contactor types, ensuring optimal fit and contact quality.

Applications
The flat ribbon cable terminal set is used in industrial electrical installations where power contactors are employed to control motors, heaters, or other electrical loads. The terminals are particularly suitable for systems where flat ribbon cables are used for power supply or signal transmission, for example in manufacturing automation, packaging industry, or machine building. The use of flat ribbon cables enables compact and orderly cabling, thereby simplifying maintenance and servicing of the installation.

Functions and Equipment in Detail
The terminal set consists of three individual terminals, each designed for securing a flat ribbon cable to a main contact of the power contactor. The terminals are constructed to ensure a secure and durable connection, even under mechanical stress and high current loads. Material selection takes into account requirements for electrical conductivity, corrosion resistance, and mechanical strength. The terminals are designed for mounting on the main contacts of contactors in the DILM series, with precise fit ensured by the specific shape and dimensions of the terminals.

Technology Explained Simply
Flat ribbon cable terminals are used for secure attachment of flat ribbon cables, which are often used in industrial installations to bundle multiple conductors into a flat, flexible strip. The terminals prevent loosening or disconnection of the connection, which is particularly important under vibrations or machine movements. The use of flat ribbon cables reduces cabling volume and improves clarity of the installation. The terminals of type DILM820-XKB-S are optimized for use with the specified contactor types to ensure safe and reliable current transmission.

Compatibility and Accessories
The flat ribbon cable terminal set DILM820-XKB-S is compatible with power contactors of the DILM580, DILM650, DILM750, and DILM820 series. It is used as a replacement part or addition to existing installations to connect flat ribbon cables to the main contacts of the contactors. The terminals are not intended for other contactor types or cable types. Suitable power contactors that can be used with this terminal set include, for example, models such as DILM750/22(RA250), DILM820/22(RA250), or DILM750/22(RAC500), which are listed in the accessory catalog. The combination with these contactors enables a flexible and secure cabling solution for industrial applications.

Mounting and Installation
Mounting is performed by securing the terminals to the main contacts of the power contactor. The terminals are positioned so that the flat ribbon cable is safely inserted and clamped. The exact mounting instructions are provided in the respective contactor manual or in the manufacturer’s technical documentation. Installation does not require special tools, but careful fastening is necessary to ensure a reliable electrical connection. The terminals are designed for use in industrial environments and do not require additional protective measures during installation.

Advantages in Operation
The use of the flat ribbon cable terminal set DILM820-XKB-S provides a secure and durable connection between flat ribbon cables and the main contacts of power contactors. This reduces the risk of contact loss, which could lead to failures or damage. The terminals enable orderly and clear cabling, simplifying maintenance and servicing of the installation. Compatibility with multiple contactor types in the DILM series increases flexibility in planning and implementing electrical installations. The terminals are designed for industrial environments and offer a reliable solution for power supply to electrical loads.

General
Number of terminals3
CompatibilityDILM580, DILM650, DILM750, DILM820
Accessory typeFlat ribbon terminals


Questions & answers

What is the delivery time of Eaton 208295 DILM820-XKB-S belt terminals for DILM750/820 (3 pcs) ?

The article Eaton 208295 DILM820-XKB-S belt terminals for DILM750/820 (3 pcs) is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 208295 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 208295 DILM820-XKB-S belt terminals for DILM750/820 (3 pcs) always at the best possible price. We can give you a discount of 2% on Eaton 208295 DILM820-XKB-S belt terminals for DILM750/820 (3 pcs) if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 208295 DILM820-XKB-S belt terminals for DILM750/820 (3 pcs) we can offer you a price of 133,60 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
