Eaton 207604 KT-M32 membrane nozzle M32

Your rating:
Average rating
product review for Eaton 207604 KT-M32 membrane nozzle M32
( 4.3 / 5 ) 13 ratings
Eaton 207604
This image may differ from the desired article.
Eaton 207604Eaton 207604
0,60 EUR 0,62 EUR
( 0,71 EUR incl. VAT )
≈ £0.50  |  ≈ $0.66
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x Eaton 207604 KT-M32 membrane nozzle M32
Lieske Part No.:307752
Mfg Part No: 207604
UPC/EAN: 4015082076047
Weight:0.0044 kg
Type:KT-M32
Graduated prices net
From piecesPrice per pieces
500,58 EUR
1000,56 EUR
2500,53 EUR
5000,51 EUR

Product information for Eaton 207604:

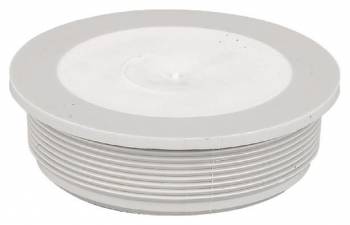

The KT-M32 from Eaton is a metric cable entry gland, specifically designed for use in distributors, meter enclosures, and other electrical enclosures, particularly in damp environment applications. The gland serves as a secure and weather-resistant cable entry through the enclosure wall, providing a protection rating in accordance with IP66, which is dust-tight and protected against ingress of water jets from any direction. This makes it suitable for outdoor use as well as in damp indoor environments where a high protection class is required. The integrated push-through membrane enables simple and reliable installation, with the cable inserted through the membrane and the seal automatically engaging.

Cable entry and drill size
The cable entry is equipped with a metric thread M32, allowing universal use in standard distributor enclosures. The required drill size is 32.5 mm, enabling precise installation into the designated holes. The gland is designed for cables with an outer diameter of 1 to 25 mm, covering a wide range of cable types and cross-sections. It is recommended to use cables of type NYM or NYY, suitable for electrical installations in both indoor and outdoor environments.

Material and construction
The gland is made of polyethylene (PE) and thermoplastic elastomer, materials known for their high chemical resistance, weather resistance, and mechanical strength. The use of halogen-free materials reduces the formation of toxic smoke in case of fire, which is particularly advantageous in enclosed spaces. The color of the gland is RAL 7035, a gray tone that integrates well visually into technical installations.

Compatibility and application
The KT-M32 is designed for use with cables of type NYM/NYY, particularly for 4-wire cables such as H03VV-F3x0,75. The gland is also suitable for larger cable cross-sections, such as NYM 4 x 16 mm² or 5 x 10 mm², making it applicable for a wide range of electrical installations in the field of distribution technology. The integrated membrane ensures a tight seal, maintaining the protective function even under mechanical stress or temperature fluctuations.

Installation and mounting
Mounting is done by simply screwing the gland into the pre-drilled opening using a suitable screwdriver or electric screwdriver. The integrated membrane ensures that the cable is automatically sealed when inserted. It is important not to pull the cable too tightly to avoid damaging the membrane. The gland is designed for easy and quick installation, without requiring additional tools or sealing materials.

The gland is designed for use in damp environment applications, where a high protection class against moisture and dust is required. The IP66 protection rating ensures reliable operation even under harsh environmental conditions. The gland is therefore particularly suitable for applications in industry, commerce, and outdoor environments, where high mechanical and chemical resistance is required.

Operational advantages
The KT-M32 provides a reliable and durable cable entry, ensuring the integrity of the electrical installation even under difficult conditions. The halogen-free material composition increases safety in case of fire, while the IP66 protection rating offers high resistance to environmental influences. The simple installation and universal compatibility with various cable types and cross-sections reduce installation time and costs. The gland is thus a proven solution for use in distributors and meter enclosures, particularly in damp environment applications.

General
Degree of protectionIP66
Cable entryM32
Bore size32,5 mm
Cable diameter1 to 25 mm
Cable typeNYM/NYY
MaterialPE and thermoplastic elastomer
ColourRAL 7035
Recommended cable cross-sectionsH03VV-F3x0.75, NYM 4 x 16/5 x 10 mm²
Halogen freeYes
