Eaton 207602 KT-M20 membrane bushing M20

Your rating:
Average rating
product review for Eaton 207602 KT-M20 membrane bushing M20
( 2 / 5 ) 1 ratings

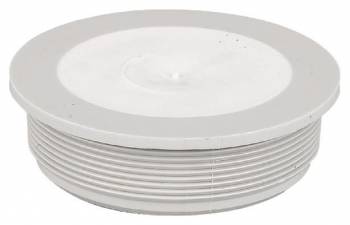

Eaton 207602
This image may differ from the desired article.
Eaton 207602Eaton 207602
0,60 EUR 0,62 EUR
( 0,71 EUR incl. VAT )
≈ £0.50  |  ≈ $0.66
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >500 pieces
1x Eaton 207602 KT-M20 membrane bushing M20
Lieske Part No.:201759
Mfg Part No: 207602
UPC/EAN: 4015082076023
Weight:0.0024 kg
Type:KT-M20
Graduated prices net
From piecesPrice per pieces
500,58 EUR
1000,56 EUR
2500,53 EUR
5000,51 EUR

Product information for Eaton 207602:

The KT-M20 from Eaton is a metric cable entry gland, specifically designed for use in distributors, meter enclosures, and other installation systems, particularly in damp environment applications. It serves as a secure and sealing connection between the enclosure and introduced cables, with the integrated push-through membrane ensuring a high protection class. The gland is designed for a cable entry with M20 thread and allows the passage of cables with an outer diameter of 1 to 13 mm. The hole in the enclosure measures 20.5 mm, enabling precise installation in standard installation systems.

Applications
The KT-M20 is intended for use in electrical distributors and switchgear, particularly in environments with increased humidity or outdoor use. The IP66 protection rating guarantees dust-tight and water-tight sealing, even against direct splashing water, making the gland suitable for use in industrial plants, outdoors, or in damp rooms. Use in ISO distributor and meter enclosure systems is typical, where reliable cable passage is required.

Features and Equipment in Detail
The gland features an integrated push-through membrane made of thermoplastic elastomer, which adapts elastically and ensures a tight seal around the cable. The membrane is halogen-free, improving fire behavior characteristics and reducing the emission of toxic gases in case of fire. The gland is designed for use with NYM and NYY type cables, including 4-wire cables such as H03VV-F3x0,75, as well as NYM cables with cross-sections from 5 x 1.5 mm² to 5 x 2.5 mm². The materials consist of polyethylene (PE) and thermoplastic elastomer, known for their chemical resistance and mechanical strength.

Technology Explained Simply
The IP66 protection rating means the gland is fully protected against dust and resistant to splashing water from any direction. This makes it suitable for use in damp or wet environments where high mechanical and electrical safety is required. The integrated membrane ensures that the cable is securely held and simultaneously sealed after insertion. The materials are designed for long service life and resist UV radiation as well as mechanical stresses during operation.

Compatibility and Accessories
The KT-M20 is specifically designed for use in distributors and meter enclosures, particularly in systems requiring IP66 protection. It is compatible with NYM, NYY, and H03VV-F3x0,75 type cables, supporting cross-sections up to 5 x 2.5 mm². The gland is used in conjunction with standard installation systems featuring a 20.5 mm hole.

Installation and Mounting
Installation is carried out by inserting the gland into the designated hole in the enclosure and then screwing in the M20 thread. The cable is pulled through the integrated membrane, which adapts elastically to ensure a tight seal. The gland is designed for simple and quick installation without requiring additional tools or mounting aids. The RAL 7035 (grey) color ensures visual harmony with standard installation systems.

Operational Advantages
The KT-M20 provides a reliable and durable cable passage with a high protection class. The halogen-free design reduces fire hazard and emission of toxic gases. The materials are resistant to UV radiation and mechanical stresses, enabling long service life in operation. The easy installation and compatibility with common cable types simplify installation in various application areas.

General
Degree of protectionIP66
Cable entryM20
Bore size20,5 mm
Outer cable diameter1 to 13 mm
Cable applicationNYM/NYY, H03VV-F3x0,75, NYM 5 x 1,5/5 x 2,5 mm²
MaterialPE and thermoplastic elastomer
ColourRAL 7035
Halogen-freeYes


Questions & answers

What is the delivery time of Eaton 207602 KT-M20 membrane bushing M20 ?

The article Eaton 207602 KT-M20 membrane bushing M20 is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 207602 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 207602 KT-M20 membrane bushing M20 always at the best possible price. We can give you a discount of 2% on Eaton 207602 KT-M20 membrane bushing M20 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Eaton 207602 KT-M20 membrane bushing M20 we can offer you a price of 0,58 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
