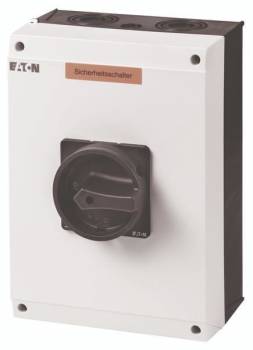

Eaton 207387 P3-100/I5-SI-SW safety switch with warning label
|
324,75 EUR 324,95 EUR |
|||||||||||
|
( 386,45 EUR incl. VAT ) ≈ £271.82 | ≈ $356.90 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 471613 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 207387 | ||||||||||
| UPC/EAN: | 4015082073879 | ||||||||||
| Weight: | 1.539 kg | ||||||||||
| Type: | P3-100/I5-SI-SW | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 207387:
Safety switch are essential in industrial electrical engineering for the safe disconnection of machines and systems. The P3-100/I5-SI-SW is designed for this purpose, enabling safe interruption of operation and allowing maintenance or inspection without electrical hazard. The STOP function ensures that the switch can be locked in the 0 position, preventing unintended re-energization. The locking mechanism is lockable, providing additional security, especially in environments with multiple operators or during maintenance work.
Functions and equipment in detail
The switch is 3-pole and suitable for disconnecting three-phase power systems. The rated continuous current is 100 A, making it suitable for applications with high current loads. The rated operational power at AC-23A, 50–60 Hz, and 400 V is 55 kW, highlighting its capability for typical industrial drives and machinery. The protection rating IP65 ensures that the switch is dust-tight and protected against water jets from any direction, making it suitable for outdoor use or in damp environments. Surface mounting allows for easy installation on enclosures or panels.
Technology explained clearly
The switch operates according to standards IEC/EN 60947, VDE 0660, and IEC/EN 60204, which govern the safety and reliability of electrical switching devices in industry. As a switch disconnector according to IEC/EN 60947-3, it is specifically designed for load disconnection and does not function as a protective device against short circuits or overloads. The locking in the 0 position with cover lock ensures that the switch can only be operated by authorized personnel. The integrated STOP function enables quick and secure disconnection, which is particularly important in emergencies or during maintenance.
Compatibility and accessories
Various accessories are available to extend functionality. These include, for example, the N-P3Z or N-P3E, which make the neutral conductor switchable, and the DE-P3 coupling drive for mechanical interlocks. The H-P3 terminal cover protects the connection terminals, while the KNK-P3 maintenance key enables secure operation. The KNB-P3 knob handle in black or the KNB-RT-P3 in red offers alternative operating options. Additionally, front plates such as ZFS61/62-P3 or FS(*)-P3 are available, allowing for additional labeling. The ZAV-P3 shaft extension and the UV-P3 locking component with N-/PE connection expand mounting and locking options. The ZVV-P3 locking extension and the SVB-T0 padlock barrier enhance security during maintenance work.
Mounting and installation
Mounting is done via surface fixation on a suitable panel or enclosure. Connections are made via the designated terminals, with auxiliary contacts or the neutral conductor to be installed by the customer. The locking device enables secure disconnection, which can be secured with a padlock or a special key. Installation must comply with applicable standards and regulations, particularly IEC/EN 60947 and VDE 0660.
Advantages in operation
The use of the safety switch P3-100/I5-SI-SW increases safety in the operation of machines and systems. The clear identification via the warning label and the STOP function ensure fast and unambiguous disconnection. The IP65 protection rating makes it robust against environmental influences, and the locking in the 0 position prevents unintended re-energization. Compatibility with various accessories allows individual adaptation to specific requirements in industrial applications.
| General | |
| Degree of protection | IP65 |
| Rated continuous current | 100 A |
| Rated operating power | 55 kW |
| Operating voltage | 400 V |
| Frequency | 50 - 60 Hz |
| Number of poles | 3 |
| Construction type | Surface mounting |
| Locking | lockable in 0-position with cover locking device |
| Function | STOP function |
| Warning label | Safety switch |
| Standards | IEC/EN 60947, VDE 0660, IEC/EN 60204 |
