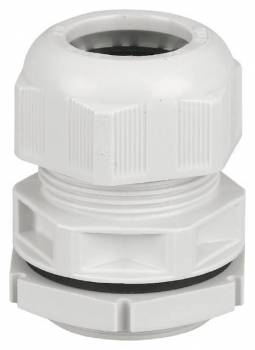

Eaton 206912 V-M32 cable gland M32

Your rating:
Average rating
product review for Eaton 206912 V-M32 cable gland M32
( 4.4 / 5 ) 12 ratings
Eaton 206912
This image may differ from the desired article.
Eaton 206912Eaton 206912
4,18 EUR 4,36 EUR
( 4,97 EUR incl. VAT )
≈ £3.50  |  ≈ $4.59
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: 5 pieces
1x Eaton 206912 V-M32 cable gland M32
Lieske Part No.:179587
Mfg Part No: 206912
UPC/EAN: 4015082069124
Weight:0.032 kg
Type:V-M32
Graduated prices net
From piecesPrice per pieces
504,05 EUR
1003,93 EUR
2503,80 EUR
5003,68 EUR

Product information for Eaton 206912:

The V-M32 cable gland from Eaton is a robust component for secure and durable cable entry into electrical distributors, enclosures, and other installation elements. It is specifically designed for use in damp and industrial environments where high requirements apply to protection rating and mechanical load capacity. The product features a thread connection M32 and is designed for cables with a bore size of 32.5 mm. It is particularly suitable for laying NYM and NYY cables, with the maximum cross-section for 4-wire cables being NYM 5 x 10 mm².

Cable gland
The V-M32 is a cable gland made of polyamide, which is halogen-free and therefore does not release toxic fumes in case of fire. The colour corresponds to RAL 7035, a grey tone that integrates well in technical installations. The construction includes an integrated strain relief, which prevents mechanical loads from being transferred to the cables, and a lock nut that ensures a secure and tight connection. The strain relief protects the conductors and insulation from mechanical wear, especially under vibrations or movements during operation.

Protection rating and operating conditions
The protection rating IP68 guarantees complete dust tightness and water tightness up to a pressure of 5 bar for a duration of 30 minutes. This makes the gland suitable for use in damp, wet, or even submerged environments, for example in manufacturing technology, the food industry, or outdoor applications. The IP68 certification is particularly important for installations exposed to high mechanical or chemical stress.

Technology explained simply
The use of polyamide as a material offers high mechanical strength, resistance to wear and chemical influences. The halogen-free composition meets modern safety requirements, especially in enclosed spaces. The flame class V2 according to UL94 indicates that the material has limited flammability at high temperatures and thus minimizes fire load. The integrated strain relief ensures that cables are not damaged by tensile forces, which increases the service life of the installation.

Compatibility and accessories
The V-M32 is compatible with NYM and NYY cables, particularly with 4-wire cables up to NYM 5 x 10 mm². As accessories, multi-seal gaskets for metric glands are available, for example MFD25 and MFD32, which enable additional sealing for multiple cables or in particularly demanding environments. These gaskets can be used additionally according to requirements to increase tightness.

Mounting and installation
Mounting is done by screw connection with the corresponding thread in the enclosure or distributor. The lock nut is tightened for secure fastening, where the integrated strain relief is automatically activated. The cable gland is designed to be mounted without additional tools or aids, with the exact tightening torque specified in the respective installation manual. The use of suitable tools is recommended to ensure a correct and tight connection.

Advantages in operation
The V-M32 cable gland provides a reliable and durable seal that remains stable even under high mechanical and thermal loads. The integrated strain relief reduces the risk of cable breaks and contact damage. The halogen-free and flame-retardant material composition increases safety in electrical installations. The IP68 protection rating enables use in demanding environments where other glands would fail. The combination of robust design and high safety standards makes the product a reliable solution for industrial and technical installations.

General
Cable entryM32
Bore size32,5 mm
Utilizationcable NYM/NYY, 4-wire = NYM 5 x 10 mm²
Degree of protectionIP68 up to 5 bar (30 minutes)
MaterialPolyamide
ColourRAL 7035
Tension reliefIntegrated
LocknutWith
Fire classV2 according to UL94
Halogen freeYes
