Eaton 206905 TS-CI-K5 support rail for CI small housing CI-K...

Your rating:
Average rating
product review for Eaton 206905 TS-CI-K5 support rail for CI small housing CI-K...
( 4.7 / 5 ) 17 ratings

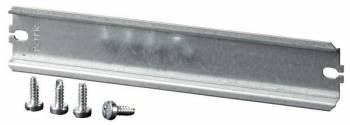

Eaton 206905
This image may differ from the desired article.
Eaton 206905Eaton 206905
-90% 8,70 EUR 87,02 EUR
( 10,35 EUR incl. VAT )
≈ £7.28  |  ≈ $9.56
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 10 pieces
1x Eaton 206905 TS-CI-K5 support rail for CI small housing CI-K...
Lieske Part No.:613636
Mfg Part No: 206905
UPC/EAN: 4015082069056
Weight:0.699 kg
Type:TS-CI-K5
Graduated prices net
From piecesPrice per pieces
258,44 EUR
508,18 EUR
1007,92 EUR
2507,66 EUR

Product information for Eaton 206905:

The TS-CI-K5 product from Eaton is a mounting plate shield, specifically designed for use in CI-K small enclosures. It serves as a support rail within empty enclosures and enables secure mounting of components inside distribution or meter enclosures. The rail is part of the CI-K small enclosures range and is particularly intended for use in damp environments, where a stable and insulating mounting structure is required. The height of the rail is 7.5 mm, ensuring a precise fit for the designated enclosures.

Mounting plate shield
The TS-CI-K5 is an insulating material enclosure that functions as a support rail. It is inserted directly into the designated mounting openings of CI-K small enclosures to securely mount electrical components such as switches, fuses, or connectors. The construction from insulating material ensures electrical isolation between the mounted components and the enclosure, increasing operational safety. The rail is designed for use in empty enclosures, which serve as a base for installing distribution or metering systems.

Applications
The shield is primarily intended for use in CI-K5 enclosures, which are used in electrical installations for distribution and metering systems. The application is particularly suited for damp environments, where high insulation performance and mechanical stability are required. The rail is suitable for mounting components that must be attached to a fixed, non-conductive structure to prevent short circuits or shock protection violations.

Functions and equipment in detail
The support rail provides a height of 7.5 mm, precisely matched to the mounting geometry of CI-K5 enclosures. This ensures secure and smooth mounting of components. As a mounting plate shield, the part is made of insulating material, enabling electrical isolation between mounted components and the metal enclosure. The rail is inserted into the designated openings of the enclosure and serves as a supporting structure for electrical components.

Technology explained simply
The use of an insulating material enclosure like the TS-CI-K5 is necessary to separate electrical components from conductive enclosure walls. This prevents short circuits and increases operational safety. The height of 7.5 mm is dimensioned to allow component mounting without contact with the enclosure. The rail is not self-supporting but is inserted into the enclosure, where it is fixed by the enclosure’s shape.

Compatibility and accessories
The TS-CI-K5 is specifically designed for use in CI-K5 enclosures. It is part of the CI-K small enclosures range and is used in conjunction with empty enclosures.

Mounting and installation
Installation is done by inserting the rail into the designated mounting openings of the CI-K5 enclosure. The rail is positioned to securely support components and ensure electrical isolation. No additional mounting aids or tools are required, as the rail is fixed by the enclosure’s shape. Installation is performed before mounting electrical components.

Operational advantages
Using the TS-CI-K5 provides a safe and insulated mounting structure for electrical components. Electrical isolation reduces the risk of short circuits and increases operational safety. The precise fit of 7.5 mm height ensures accurate and smooth mounting, improving installation efficiency. The rail is suitable for use in damp environments, increasing its versatility.

The item price shown refers to 10 pieces Eaton 206905
General
AssortmentCI-K small enclosures
Utilizationempty housing, mounting rails
Suitable forCI-K5
MaterialInsulating material


Questions & answers

What is the delivery time of Eaton 206905 TS-CI-K5 support rail for CI small housing CI-K... ?

The article Eaton 206905 TS-CI-K5 support rail for CI small housing CI-K... is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 206905 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 206905 TS-CI-K5 support rail for CI small housing CI-K... always at the best possible price. We can give you a discount of 2% on Eaton 206905 TS-CI-K5 support rail for CI small housing CI-K... if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of Eaton 206905 TS-CI-K5 support rail for CI small housing CI-K... we can offer you a price of 8,44 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Eaton 206905 TS-CI-K5 support rail for CI small housing CI-K... is offered by us in a sales unit of 10 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
