Eaton 206884 CI-K3-125-TS insulating material enclosure with support rail

Your rating:
Average rating
product review for Eaton 206884 CI-K3-125-TS insulating material enclosure with support rail
( 4.6 / 5 ) 8 ratings

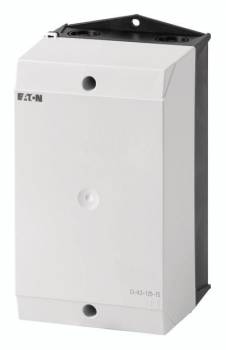

Eaton 206884
This image may differ from the desired article.
Eaton 206884Eaton 206884Eaton 206884
50,93 EUR 53,07 EUR
( 60,61 EUR incl. VAT )
≈ £42.63  |  ≈ $55.97
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >25 pieces
1x Eaton 206884 CI-K3-125-TS insulating material enclosure with support rail
Datasheet:file_download Download
Lieske Part No.:313605
Mfg Part No: 206884
UPC/EAN: 4015082068844
Weight:0.785 kg
Type:CI-K3-125-TS
Graduated prices net
From piecesPrice per pieces
649,40 EUR
1247,87 EUR
2446,35 EUR
3644,82 EUR

Product information for Eaton 206884:

The Eaton insulating material housing CI-K3-125-TS is a compact, empty housing for use in electrical distributions, particularly in damp room and industrial applications. It belongs to the CI-K small housing range and is designed as a single unit. The housing features an integrated support rail in accordance with IEC/EN 60715, enabling the mounting of switches, fuses or other components. The front side is rated IP65, providing dust-tight protection and resistance against water jets from all directions – a feature that makes it suitable for outdoor use or in damp environments. Cable entry is via a push-through technique, with the hard seal version ensuring a secure and tight connection.

Insulating material housing made of glass-fibre-reinforced polycarbonate are characterised by high mechanical strength and thermal resistance. The housing consists of two colour parts: the lower part is black (RAL 9005), the upper part is light grey (RAL 7035). This colour scheme supports a clear visual separation between functional levels and is typical for industrial installations. Dimensions are 120 mm width, 125 mm depth and 200 mm height. The mounting depth when using the support rail is 7.5 mm, reducing the effective mounting height to 93 mm. This specific construction enables compact mounting in distributions with limited space.

Technical features such as the IP65 protection rating and the use of glass-fibre-reinforced polycarbonate are crucial for reliability in demanding environments. Standards IEC/EN 60529 and DIN EN 62208 define requirements for protection rating and electrical safety. Metric pre-punchings on the top and bottom as well as on the rear wall facilitate installation of control wiring and allow flexible adaptation to different connection conditions. The M20/M25 pre-punching in the lower part is suitable for mounting L- indicator lights, supporting integration of status indicators into the distribution.

Application areas include particularly damp room installations, such as those found in kitchens, laundry rooms or industrial production facilities. The IP65 protection rating also makes the housing suitable for outdoor installations where protection against rain and splashing water is required. The use of insulating materials ensures high electrical insulation and heat resistance, increasing operational safety. The housing is supplied as an empty housing, i.e. it contains no pre-mounted components and must be individually equipped according to application requirements.

Compatibility and accessories include various spacers that allow increased mounting height. These include the HS50-CI (50 mm height increase), HS25-CI (25 mm height increase), as well as spacers ADT125-110 and ADT200-190, specifically designed for CI housings. Additionally, the neutral conductor terminal K-CI-K3 is available, intended for secure connection of neutral conductors in the distribution. These accessories extend mounting flexibility and enable application-specific adaptation of the distribution.

Mounting and installation are carried out via the integrated support rail, standardised according to IEC/EN 60715. The pre-punchings facilitate wiring, with the hard seal cable entry ensuring a tight and waterproof connection. The mounting depth of 7.5 mm with the support rail allows for shallow mounting, which is advantageous in tight distributions. Mounting typically occurs in distribution boxes or meter enclosures, with exact positioning determined by the pre-punchings and housing dimensions.

Operational advantages lie in the high mechanical and electrical stability of the glass-fibre-reinforced polycarbonate, as well as the IP65 protection rating, ensuring high reliability in damp or dusty environments. The modular design allows flexible adaptation to different requirements, with the integrated support rail and pre-punchings reducing installation time. Compliance with standards such as IEC/EN 60529 and DIN EN 62208 ensures conformity with European safety standards.

The housing is designed for use in electrical distributions requiring high protection rating and mechanical robustness. It is particularly suitable for applications where avoidance of moisture, dust or mechanical stress is a priority. The combination of compact design, high protection rating and flexible mounting options makes it a suitable component for modern distribution systems.

Technical details
Product colourGrey
International Protection (IP) codeIP65
Weight & dimensions
Width120 mm
Depth125 mm
Height200 mm


Product data sheet
Datasheet for Eaton 206884, EAN: 4015082068844

Questions & answers

What is the delivery time of Eaton 206884 CI-K3-125-TS insulating material enclosure with support rail ?

The article Eaton 206884 CI-K3-125-TS insulating material enclosure with support rail is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 206884 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 206884 CI-K3-125-TS insulating material enclosure with support rail always at the best possible price. We can give you a discount of 2% on Eaton 206884 CI-K3-125-TS insulating material enclosure with support rail if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 206884 CI-K3-125-TS insulating material enclosure with support rail we can offer you a price of 49,40 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
