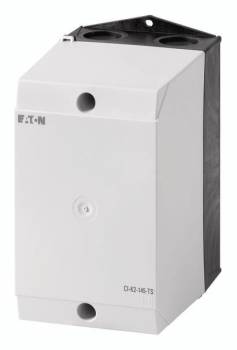

Eaton 206883 CI-K2-145-TS insulating material enclosure with support rail

Your rating:
Average rating
product review for Eaton 206883 CI-K2-145-TS insulating material enclosure with support rail
( 4.3 / 5 ) 9 ratings
Eaton 206883
This image may differ from the desired article.
Eaton 206883Eaton 206883Eaton 206883
39,14 EUR 40,79 EUR
( 46,58 EUR incl. VAT )
≈ £32.76  |  ≈ $43.01
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Eaton 206883 CI-K2-145-TS insulating material enclosure with support rail
Datasheet:file_download Download
Lieske Part No.:531864
Mfg Part No: 206883
UPC/EAN: 4015082068837
Weight:0.615 kg
Type:CI-K2-145-TS
Graduated prices net
From piecesPrice per pieces
1037,38 EUR
2535,62 EUR
5033,86 EUR
7532,09 EUR

Product information for Eaton 206883:

The Eaton CI-K2-145-TS is an insulating material housing from the CI-K series, specifically designed for use in damp environments and as a single unit in distribution or metering cabinet installations. It serves as an empty housing for mounting switching devices and features an integrated support rail in accordance with IEC/EN standards, enabling secure fixation of components. The housing is designed as a mounting sheet shield and is suitable for installations requiring high mechanical and electrical safety. The front side is equipped with IP65 protection rating, ensuring dust-tight and water-tight conditions – particularly for cable entries using push-through technology. The material consists of glass-fibre reinforced polycarbonate, known for its high mechanical strength, weather resistance, and electrical insulation properties.

Applications

The CI-K2-145-TS is used in electrical distribution systems, particularly in damp environments such as basements, laundry rooms, or industrial settings with increased humidity. The IP65 protection rating also makes it suitable for outdoor use, provided there is no direct, prolonged water jet exposure. It is designed as a single unit but can also be integrated into larger distribution systems. The integrated support rail allows for the mounting of switches, fuses, or other components in accordance with IEC/EN standards.

Functions and Equipment in Detail

The housing features metric cable entry openings on the top and bottom as well as on the rear panel, enabling flexible and secure cabling. Cable entry is achieved via a push-through cable entry membrane, allowing for easy and quick installation without tools. The front side is designed in two colour sections: the lower part of the housing in RAL-black and the upper part in RAL-light grey, providing clear visual separation and a professional appearance. The mounting depth when using the support rail is 7.5 mm, resulting in a total height of the mounted device of 118 mm.

Technology Explained Simply

The IP65 protection rating means the housing is dust-tight and protected against water jets from any direction – corresponding to a high protection standard for use in damp or wet environments. The glass-fibre reinforced polycarbonate offers high mechanical stability and is resistant to UV radiation and temperature fluctuations. The integrated support rail in accordance with IEC/EN standards enables mounting of components with standardised dimensions, ensuring compatibility with common switching devices. The push-through technology of the cable entry membrane reduces installation time and increases cabling reliability.

Compatibility and Accessories

The CI-K2-145-TS is compatible with the neutral conductor terminal K-CI-K1/2, which is offered as a suitable accessory. This terminal can be used for secure connection of neutral conductors in the distribution unit. Mounting is done via the integrated support rail, eliminating the need for additional mounting aids. The cable entry is suitable for control cables and indicator lights L-, enabling integration into control and monitoring systems.

Mounting and Installation

Installation is carried out by fixing to a wall or in a floor cut-out using M20 or M25 standards. The support rail is already integrated into the housing, so no additional mounting elements are required. Cable entry is done through the pre-defined openings, with the push-through membrane enabling quick and secure cabling. Dimensions are 100 mm width, 145 mm depth, and 160 mm height, with a mounting depth of 7.5 mm when using the support rail.

Operational Advantages

The housing provides high mechanical and electrical safety due to the IP65 protection rating and robust material. The integrated support rail and push-through cable entry membrane reduce installation time and increase installation reliability. The colour design in RAL-black and RAL-light grey ensures clear visual structuring of the installation. Compatibility with standard components and accessories such as the neutral conductor terminal K-CI-K1/2 simplifies planning and execution of distribution systems.

Technical details
Product colourGrey
International Protection (IP) codeIP65
Weight & dimensions
Width100 mm
Depth145 mm
Height160 mm


Product data sheet
Datasheet for Eaton 206883, EAN: 4015082068837

Questions & answers

What is the delivery time of Eaton 206883 CI-K2-145-TS insulating material enclosure with support rail ?

The article Eaton 206883 CI-K2-145-TS insulating material enclosure with support rail is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 206883 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 206883 CI-K2-145-TS insulating material enclosure with support rail always at the best possible price. We can give you a discount of 2% on Eaton 206883 CI-K2-145-TS insulating material enclosure with support rail if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Eaton 206883 CI-K2-145-TS insulating material enclosure with support rail we can offer you a price of 37,38 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
