Eaton 206882 CI-K2-100-TS insulating material enclosure with support rail

Your rating:
Average rating
product review for Eaton 206882 CI-K2-100-TS insulating material enclosure with support rail
( 4.4 / 5 ) 10 ratings

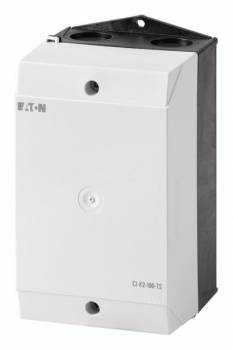

Eaton 206882
This image may differ from the desired article.
Eaton 206882Eaton 206882Eaton 206882
35,27 EUR 36,76 EUR
( 41,97 EUR incl. VAT )
≈ £29.52  |  ≈ $38.76
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: 4 pieces
1x Eaton 206882 CI-K2-100-TS insulating material enclosure with support rail
Datasheet:file_download Download
Lieske Part No.:237342
Mfg Part No: 206882
UPC/EAN: 4015082068820
Weight:0.43 kg
Type:CI-K2-100-TS
Graduated prices net
From piecesPrice per pieces
1034,21 EUR
2533,15 EUR
5032,10 EUR
7531,04 EUR

Product information for Eaton 206882:

The Eaton CI-K2-100-TS is a thermoplastic housing from the CI-K series, designed for use in damp and industrial applications. It is an empty housing for single devices, equipped with a support rail according to IEC/EN 60715 to securely mount electrical components such as switches, fuses, or control devices. The housing has dimensions of 100 mm (width) × 100 mm (depth) × 160 mm (height) and offers an installation depth of 73 mm when using the support rail. The front side achieves a protection rating of IP65, meaning it is dust-tight and protected against water jets from any angle – a feature that makes it suitable for outdoor use or in damp environments.

Applications
The CI-K2-100-TS is suitable for use in distribution and meter enclosures, particularly in areas where high mechanical and climatic stress resistance is required. The IP65 protection rating makes it suitable for installations in industry, outdoor environments, or damp rooms such as kitchens, laundry areas, or wet cells. The use of glass-fibre-reinforced polycarbonate as the material ensures high mechanical strength, heat resistance, and resistance to chemical influences. The colour scheme consists of a black lower part (RAL 9005) and a light grey upper part (RAL 7035), enabling a clear visual separation between functional areas.

Functions and Equipment in Detail
The housing features metric pre-punched holes on the top and bottom as well as on the rear wall, enabling flexible and quick mounting of control wiring and components. Cable entry is achieved via a cable feed-through membrane, ensuring secure and waterproof cable guidance. Leuchtmelder with thread sizes M20 or M25 can be installed in the lower pre-punched holes, enabling integration of status indicators into the control setup. The support rail according to IEC/EN 60715 allows mounting of standard components designed for this standard.

Technology Explained Simply
The protection rating IP65 means the housing is completely dust-tight and protected against water jets from any angle. This is particularly important in environments where moisture, splashing water, or dust could impair the function of electrical devices. Glass-fibre-reinforced polycarbonate is a high-quality plastic offering high mechanical strength, heat resistance, and UV resistance. The pre-punched holes in the housing simplify installation, as no additional drilling or machining is required. The cable feed-through membrane ensures that cables are securely fixed within the housing and prevents water ingress.

Compatibility and Accessories
The CI-K2-100-TS is equipped with a support rail according to IEC/EN 60715, suitable for mounting standard components. As a compatible accessory, the K-CI-K1/2 neutral conductor terminal (part number 207451) is offered, which serves for secure connection of neutral conductors in the control setup. Combining this terminal with the housing enables structured and secure cabling within the enclosure.

Mounting and Installation
Mounting is performed via the integrated support rail, designed for components according to IEC/EN 60715. The pre-punched holes on the sides and rear of the housing allow for quick and precise fixation of cables and control wiring. The installation depth of 73 mm with the support rail is sufficient for most standard components. The cable feed-through membrane is inserted directly into the pre-punched openings, creating a waterproof and mechanically stable connection.

Operational Advantages
The housing offers high mechanical and climatic stress resistance, extending the service life of installed components. The IP65 protection rating protects against dust and splashing water, increasing reliability in demanding environments. The integrated pre-punched holes and cable feed-through membrane reduce installation time and improve installation accuracy. The use of glass-fibre-reinforced polycarbonate ensures high heat and chemical resistance, making the housing suitable for industrial applications. Compliance with IEC/EN 60529 and DIN EN 62208 ensures adherence to international safety and quality standards.

Technical details
Product colourGrey
International Protection (IP) codeIP65
Weight & dimensions
Width100 mm
Depth100 mm
Height160 mm


Product data sheet
Datasheet for Eaton 206882, EAN: 4015082068820

Questions & answers

What is the delivery time of Eaton 206882 CI-K2-100-TS insulating material enclosure with support rail ?

The article Eaton 206882 CI-K2-100-TS insulating material enclosure with support rail is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 206882 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 206882 CI-K2-100-TS insulating material enclosure with support rail always at the best possible price. We can give you a discount of 2% on Eaton 206882 CI-K2-100-TS insulating material enclosure with support rail if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Eaton 206882 CI-K2-100-TS insulating material enclosure with support rail we can offer you a price of 34,21 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
