Eaton 206881 CI-K1-95-TS insulating material enclosure with support rail

Your rating:
Average rating
product review for Eaton 206881 CI-K1-95-TS insulating material enclosure with support rail
( 4.5 / 5 ) 11 ratings

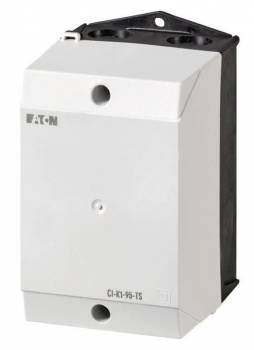

Eaton 206881
This image may differ from the desired article.
Eaton 206881Eaton 206881
29,03 EUR 30,25 EUR
( 34,55 EUR incl. VAT )
≈ £24.30  |  ≈ $31.90
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 5 pieces
1x Eaton 206881 CI-K1-95-TS insulating material enclosure with support rail
Datasheet:file_download Download
Lieske Part No.:563558
Mfg Part No: 206881
UPC/EAN: 4015082068813
Weight:0.227 kg
Type:CI-K1-95-TS
Graduated prices net
From piecesPrice per pieces
1027,51 EUR
2525,98 EUR
5024,46 EUR
7522,93 EUR

Product information for Eaton 206881:

The Eaton CI-K1-95-TS is an insulating material housing from the CI-K series, designed for use in distribution boards and meter enclosures, particularly in damp environment applications. The housing serves as an empty housing for individual devices and is equipped with a support rail according to IEC/EN 60715, enabling the mounting of switching devices. It features a protection rating of IP65 on the front side, ensuring dust-tight and water-tight conditions, especially when cable entry is made using a through-feed technique. The housing is made of glass-fibre-reinforced polycarbonate (PC), a robust and heat-resistant material suitable for electrical applications. The colour scheme is two-tone: the lower part of the housing is black in RAL 9005, and the upper part is light grey in RAL 7035. Dimensions are 120 mm height, 80 mm width, and 95 mm depth, with an installation depth of 7.5 mm when mounted on the support rail and an effective installation height of 72 mm.

Applications

The CI-K1-95-TS is suitable for use in electrical distribution boards, particularly in environments with increased humidity, such as basements, laundry rooms, or industrial facilities. The IP65 protection rating makes it suitable for outdoor areas or damp indoor spaces where protection against splashing water and dust is required. The integrated support rail enables the mounting of switches, fuses, or other components designed for DIN support rails. The housing is part of the small housing CI-K range and is delivered as a single device.

Functions and Equipment in Detail

The housing features metric pre-punchings on the top and bottom as well as on the rear wall, enabling flexible cable entry. Cable entry is achieved via a cable-through-feed membrane, ensuring a secure and water-tight connection. The membrane is designed for through-feed technology and allows cable insertion without additional seals. In the lower part, there is a pre-punching for indicator lights L- in sizes M20 and M25, enabling integration of status indicators or warning lights. The housing contains no halogens, improving fire behaviour properties and supporting use in installations with higher safety requirements.

Technology Explained Simply

The IP65 protection rating means the housing is fully protected against dust and resistant to splashing water from any direction. This is particularly important in damp or wet environments where electrical components must be protected from moisture. The glass-fibre-reinforced polycarbonate offers high mechanical strength and heat resistance, extending the housing’s service life. The support rail according to IEC/EN 60715 is standardised and allows mounting of components designed for DIN support rails. The pre-punchings and cable-through-feed membrane reduce installation time and increase the reliability of cabling.

Compatibility and Accessories

The CI-K1-95-TS is compatible with accessories such as the TB-CI-K support rail adapter for CI-K, enabling flexible mounting, and the K-CI-K1/2 neutral conductor terminal, which ensures secure connection of neutral conductors. These components extend the functionality of the housing and allow adaptable installation in various distribution systems.

Mounting and Installation

Mounting is done via the integrated support rail, which is directly inserted into the distribution board or enclosure. The installation depth of 7.5 mm and the effective installation height of 72 mm allow for a compact installation. The pre-punchings and cable-through-feed membrane simplify cabling, with the membrane ensuring a water-tight seal for cable entry. Components are mounted directly onto the support rail, with positioning optimised by the pre-punchings and housing dimensions.

Operational Advantages

The housing offers high mechanical and thermal stability, increasing reliability in industrial and domestic applications. The IP65 protection rating ensures a high level of protection, extending the service life of installed components. The integrated support rail and pre-punchings reduce installation time and facilitate maintenance. The use of halogen-free material improves fire protection properties, which is advantageous in many applications. The combination of robust material, standardised mounting, and flexible cabling makes the CI-K1-95-TS a reliable component for electrical distribution systems.

Certification and Standards

The product complies with standards IEC/EN 60529 and DIN EN 62208, which apply to the safety and functionality of electrical components. Certification according to these standards ensures that the housing meets the requirements for electrical installations and is safe in operation. The mentioned standards include requirements for mechanical strength, electrical insulation, and protection rating, relevant for use in distribution boards and meter enclosures.

Technical details
Product colourBlack, Grey
Housing materialPolycarbonate (PC)
International Protection (IP) codeIP65
Knockout hole diameter1.6 cm
Doesn't containHalogen
CertificationIEC/EN 60529 DIN EN 62208
Weight & dimensions
Width80 mm
Depth95 mm
Height120 mm


Product data sheet
Datasheet for Eaton 206881, EAN: 4015082068813
