Eaton 199154 PKZM0-2,5-PI motor protection switch 0.75 kW 1.6–2.5 A push-in terminals

Your rating:
Average rating
product review for Eaton 199154 PKZM0-2,5-PI motor protection switch 0.75 kW 1.6–2.5 A push-in terminals
( 4.5 / 5 ) 2 ratings

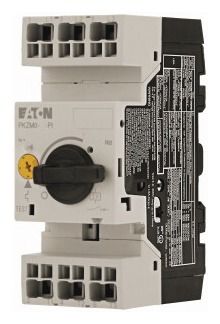

Eaton 199154
This image may differ from the desired article.
Eaton 199154Eaton 199154
107,16 EUR
incl. 0,54 EUR copper surcharge
( 127,52 EUR incl. VAT )
≈ £89.69  |  ≈ $117.77
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 1 pieces
1x Eaton 199154 PKZM0-2,5-PI motor protection switch 0.75 kW 1.6–2.5 A push-in terminals
Lieske Part No.:2050524
Mfg Part No: 199154
UPC/EAN: 4015081972388
Weight:0.361 kg
Type:PKZM0-2,5-PI
Graduated prices net
From piecesPrice per pieces
5103,96 EUR
10100,76 EUR
1597,56 EUR
2094,37 EUR

Product information for Eaton 199154:

The PKZM0-2,5-PI motor protection switch from Eaton is an industrial-grade switching device designed for protecting electric motors. It complies with standards IEC/EN 60947 and VDE 0660 and is intended for use in systems with electrical drives. The device features a thermomagnetic tripping mechanism that responds to both overload and short-circuit conditions. The rated continuous current is 2.5 A, with the overload tripping unit adjustable within the range of 1.6 to 2.5 A. The maximum breaking capacity is 38.8 A. The protection function also includes detection of phase failure, which is important for the reliability of drive systems.

Applications
This motor protection switch is intended for use in industrial installations, particularly in drive systems with motors up to 0.75 kW at 400 V and 0.37 kW at 230 V (operating mode AC-3). It is suitable for applications requiring safe disconnection in case of overload or short-circuit. The IP20 protection rating of the device and the IP20 protection of the connection terminals ensure sufficient protection against contact with moving parts and against ingress of solid foreign objects, although not against water or dust. Storage is possible within a temperature range of -40 °C to +80 °C, while the device can be operated between -25 °C and +55 °C.

Functions and Equipment in Detail
The device features a rotary knob as the operating element, used for manual switching operations. The power supply direction is selectable as required, enabling flexible installation. The connection terminals are designed as push-in terminals, allowing for quick and secure connection of conductors. The rated operational power at AC-3 is 0.37 kW at 230 V and 0.75 kW at 400 V. The protection function includes thermal protection, which activates in case of motor overload, as well as detection of phase failure.

Technology Explained Simply
The thermomagnetic tripping mechanism combines two protection principles: the thermal component responds to continuous overload by tripping the switch via thermal expansion. The magnetic component reacts to sudden, high current surges, such as those occurring during short-circuits, and trips immediately. The rated ultimate short-circuit breaking capacity (Icu) is 150 kA at 400 V, highlighting the device’s capability to safely interrupt high short-circuit currents. The number of poles is 3, which is typical for use in three-phase systems.

Compatibility and Accessories
Various accessories are available for this motor protection switch, extending its functionality. These include, for example, the PKZ0-XH door coupling handle according to EN 60204, the U-PKZ0(230V50HZ)-PI undervoltage release, the AK-PKZ0 lockable rotary knob, the PKZ0-XRH door coupling handle with NA function, and the NHI11-PKZ0-PI normal auxiliary switch, which can be mounted on the right side. These components allow adaptation to specific requirements, such as undervoltage protection or integration into control systems.

Mounting and Installation
Mounting is carried out in the usual manner in enclosures or distribution boards. The push-in terminals facilitate the connection of conductors, ensuring correct polarity and compliance with electrical standards. The power supply direction is freely selectable, enabling flexible positioning within the enclosure. The operating temperature of the device ranges from -25 °C to +55 °C, with storage possible between -40 °C and +80 °C.

Advantages in Operation
The motor protection switch provides reliable protection for electric motors through the combination of thermal and magnetic tripping mechanisms. The push-in terminals enable quick and secure wiring. Phase failure sensitivity increases safety in drive systems, as incomplete power supply conditions are detected and disconnected. Compatibility with various accessories allows individual adaptation to specific requirements in industrial electrical engineering.

General
Degree of protectionIP20
Terminal clampsIP20
Rated continuous current2,5 A
Overload protector1,6 - 2,5 A
Max. breaking current38,8 A
Switching technologyThermal-magnetic
Rated operational power AC-30,37 kW
Rated ultimate short-circuit breaking current Icu150 kA
Operating voltage400 V
Number of poles3
Actuating elementTurn button
Storage temperature-40 - 80 °C
Operation temperature-25 - 55 °C
Power supply directionas required
Connection typePush-in terminals
Phase failure sensitiveJa
