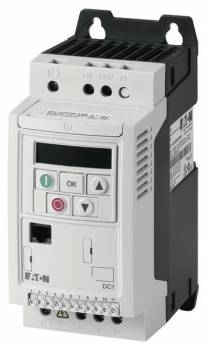

Eaton 185746 DC1-344D1FN-A20CE1 frequency converter 3/3ph 400 V 4.1 A 1.5 kW EMC filter
|
517,23 EUR 539,01 EUR |
|||||||||||
|
( 615,50 EUR incl. VAT ) ≈ £437.06 | ≈ $578.26 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1340654 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 185746 | ||||||||||
| UPC/EAN: | 4015081812455 | ||||||||||
| Weight: | 1.352 kg | ||||||||||
| Type: | DC1-344D1FN-A20CE1 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Frequency converter, soft starter from EatonFurther products in category Frequency converter, soft starter
All products of Eaton
Product information for Eaton 185746:
Frequency converter, type code: DC1, rated operating voltage: Ue = 400 V AC, 3-phase, 480 V AC, 3-phase, output voltage at Ue: U2 = 400 V AC, 3-phase, 480 V AC, 3-phase, mains voltage (50/60Hz): ULN = 380 (-10%) - 480 (+10%) V, rated operating current at 150% overload: Ie = 4.1 A, note: rated operating current at a switching frequency of 16 kHz and an ambient temperature of +50 °C, note: overload cycle for 60 s every 600 s, assigned motor power note: for normal four-pole, internally and externally ventilated three-phase asynchronous motors with 1500 min-1 at 50 Hz or 1800 min-1 at 60 Hz, overload cycle for 60 s every 600 s, at 400 V, 50 Hz, assigned motor power 150% overload: P = 1.5 kW, 150% overload: IM = 3.6 A, assigned motor power note: at 440 - 480 V, 60 Hz, assigned motor power 150% overload: P = 2 HP, assigned motor power 150% overload: IM = 3.4 A, protection class: IP20/NEMA 0, interface/fieldbus (built-in): OP-Bus (RS485)/Modbus RTU, CANopen®, fieldbus connection (optional): SmartWire-DT, equipment: radio interference filter, 7-segment display, size: FS1, standards and regulations: general requirements: IEC/EN 61800-2, EMC requirements: IEC/EN 61800-3, Safety requirements: IEC/EN 61800-5-1
Questions & answers
What is the delivery time of Eaton 185746 DC1-344D1FN-A20CE1 frequency converter 3/3ph 400 V 4.1 A 1.5 kW EMC filter ?
The article Eaton 185746 DC1-344D1FN-A20CE1 frequency converter 3/3ph 400 V 4.1 A 1.5 kW EMC filter is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 185746 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 185746 DC1-344D1FN-A20CE1 frequency converter 3/3ph 400 V 4.1 A 1.5 kW EMC filter always at the best possible price. We can give you a discount of 2% on Eaton 185746 DC1-344D1FN-A20CE1 frequency converter 3/3ph 400 V 4.1 A 1.5 kW EMC filter if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Eaton 185746 DC1-344D1FN-A20CE1 frequency converter 3/3ph 400 V 4.1 A 1.5 kW EMC filter we can offer you a price of 505,59 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
