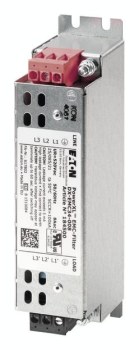

Eaton 184501 DX-EMC34-016 EMC filter for frequency converter 3ph 520 V 16 A
|
-15% 107,66 EUR 126,02 EUR |
|
|
( 128,12 EUR incl. VAT ) ≈ £90.11 | ≈ $118.32 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1340276 |
|---|---|
| Mfg Part No: | 184501 |
| UPC/EAN: | 4015081785407 |
| Weight: | 1.3 kg |
| Type: | DX-EMC34-016 |
Product information for Eaton 184501:
Applications
The EMC filter DX-EMC34-016 is used in industrial plants where frequency converters are employed for speed control of electric motors. This includes applications in the manufacturing industry, packaging and processing industries, as well as in installations with high electronic complexity, where compliance with EMC standards is required. Installation typically takes place directly at the input of the frequency converter to minimize disturbances within the network.
Functions and Equipment in Detail
Connection is made via screw terminals, ensuring a secure and mechanically stable connection. An integrated PE bolt ensures a reliable protective earth connection. The protection rating IP20 safeguards against solid foreign objects with a diameter of at least 12.5 mm and provides no protection against water, making it suitable for use in enclosed, dry rooms.
Technology Explained Simply
Frequency converters generate electrical disturbances during power conversion, which can be transmitted over the network to other devices. The DX-EMC34-016 filters these disturbances in the frequency range, particularly in the high-frequency range generated by the rapid switching operations within the converter. The filter elements (inductive and capacitive components) form a circuit that decouples interference voltages and typically diverts them via the protective earth (PE) conductor. The standards EN 50178, IEC 61800-3, and EN 61800-3 including A11 define requirements for electromagnetic compatibility and safety of drive systems, which this filter complies with.
Compatibility and Accessories
The filter is compatible with Eaton frequency converter series DE1, DE11, DC1, DA1, and DG1. In Eaton’s product range, various frequency converters can be combined with this filter, including models such as DC1-349D5FB-A20CE1, DC1-34014FB-A20CE1, DE11-348D5FN-N20N, and DA1-34014FB-A20C. These combinations enable efficient EMC coverage for different power ratings and application scenarios. The mentioned frequency converters are also available in our range and can be used to create a complete drive system.
Mounting and Installation
Mounting is typically performed directly at the input of the frequency converter, connecting the screw terminals to the network connection terminals of the converter. The PE bolt connection must be ensured to guarantee electrical safety. Individual installation requires sufficient space and secure fastening to avoid mechanical stress and vibrations. Installation should be carried out by qualified personnel to comply with standards and safety regulations.
Advantages in Operation
Using the DX-EMC34-016 contributes to compliance with EMC standards and reduces disturbance emissions in the power grid. This protects not only the user’s own installations but also adjacent electronic devices from radio interference. The simple mounting and compatibility with various Eaton converter models facilitate integration into existing systems. Compliance with standards EN 50178 and IEC 61800-3 ensures safe and reliable operation in industrial environments.
| General | |
| Degree of protection | IP20 |
| Operating voltage | max. 520 + 10% V |
| Rated operation current | 16 A |
| Number of phases | 3 |
| Connection type | screw terminal, PE bolt |
| Compatibility | DE1, DE11, DC1, DA1, DG1 |
| Standards | EN 50178, IEC 61800-3, EN 61800-3 incl. A11 |
| Application form | Separate positioning |
