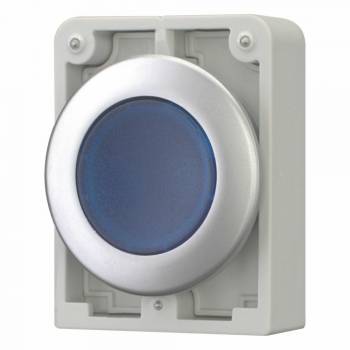

Eaton 182940 M30C-FDL-B illuminated pushbuttons, Flat Front, flat,
|
21,80 EUR 22,72 EUR |
|||||||||||
|
( 25,94 EUR incl. VAT ) ≈ £18.25 | ≈ $23.96 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1586968 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 182940 | ||||||||||
| UPC/EAN: | 4015081778676 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | M30C-FDL-B | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 182940:
Applications
This illuminated pushbutton is suitable for applications in industrial automation and control technology, particularly in environments with high requirements for protection rating. It can be used in machine control systems, plant monitoring systems, or operator panels where clear visual feedback via integrated lighting is required. The high protection class also makes it suitable for outdoor use or in damp, dusty, or heavily soiled environments.
Functions and Equipment in Detail
The device is equipped with integrated LED lighting, enabling visual signalling. The button faceplate is unlabelled, allowing for individual labelling or markings as needed. Operation is tactile, ensuring clear feedback on the operating status. Connection to SmartWire-DT is possible, enabling integration into modern, networked control systems. RMQ-SWD connectors allow flexible and reliable wiring.
Technology Explained Simply
The protection rating IP66, IP66, and IP69K ensures high protection against dust, water, and high-pressure water jets. IP66 protects against dust and strong water sprays from any direction, IP66 against dust and temporary submersion, and IP69K against hot water sprays under high pressure. These properties make the pushbutton particularly suitable for demanding industrial environments. The front dimension of Ø 36 mm corresponds to a common standard, enabling easy installation in existing panels. The metallic front ring increases mechanical strength and gives the device a professional appearance.
Compatibility and Accessories
The device is compatible with various accessories that facilitate installation and adaptation. These include threaded rings such as M22-GR7 for panel thicknesses of 7 mm, mounting keys (M22-MS), telescopic clips (M22-TC), and extensions (M22-TCV). Mounting adapters (M22-A) allow flexible installation in different panel thicknesses. For lighting, various LED elements are available, including red, green, blue, white, and combinations such as red/green, red/green/blue. These elements can be exchanged according to application requirements to adapt the signalling.
Installation and Mounting
Mounting is done into a hole with a diameter of 36 mm. The use of threaded rings or telescopic clips enables secure fastening in panels of varying thickness. Connection options via RMQ-SWD connectors allow easy integration into SmartWire-DT systems. The metallic front construction ensures stable mounting and prevents shifting or loosening of the pushbutton during operation.
Operational Advantages
The high protection rating IP66 IP66/IP69K ensures reliable operation even under extreme environmental conditions. The integrated LED lighting enables clear visual signalling, which is helpful during operation and maintenance. Compatibility with SmartWire-DT enables networked control, simplifying diagnostics and monitoring of plants. The robust construction and standard dimensions facilitate integration into existing systems and reduce installation time.
Standards and Regulations
The device complies with standards IEC/EN 60947 and VDE 0660, which apply to control devices in electrical control technology. These standards guarantee safe and reliable operation, as well as compliance with safety and quality requirements in industrial electrotechnics. Compliance with these standards is crucial for use in industrial plants.
Note: Batteries are not included in the delivery scope.
| General | |
| Product type | Illuminated push-button |
| Assortment | RMQ-Titan |
| Construction type | flat, tactile |
| Tactile plate | blue, unlabelled |
| Degree of protection | IP66, IP67, IP69K |
| Front ring | Metal |
| Connections | RMQ-SWD |
| Standards and regulations | IEC/EN 60947, VDE 0660 |
| Connection to SmartWire-DT | |
Questions & answers
What is the delivery time of Eaton 182940 M30C-FDL-B illuminated pushbuttons, Flat Front, flat, ?
The article Eaton 182940 M30C-FDL-B illuminated pushbuttons, Flat Front, flat, is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 182940 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 182940 M30C-FDL-B illuminated pushbuttons, Flat Front, flat, always at the best possible price. We can give you a discount of 2% on Eaton 182940 M30C-FDL-B illuminated pushbuttons, Flat Front, flat, if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Eaton 182940 M30C-FDL-B illuminated pushbuttons, Flat Front, flat, we can offer you a price of 21,15 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
