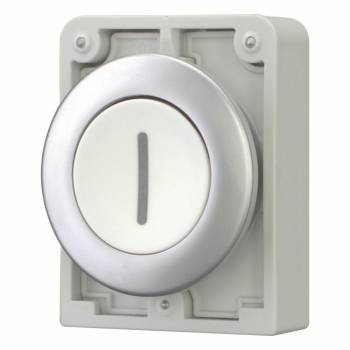

Eaton 182938 M30C-FDR-W-X1 push button, Flat Front, flat, latching,
|
24,87 EUR 25,92 EUR |
|||||||||||
|
( 29,60 EUR incl. VAT ) ≈ £20.82 | ≈ $27.33 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1586967 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 182938 | ||||||||||
| UPC/EAN: | 4015081778652 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | M30C-FDR-W-X1 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 182938:
Applications
The pushbutton is suitable for use in industrial environments, particularly in plants exposed to high mechanical stress, moisture, or cleaning processes. The protection ratings IP66, IP66, and IP69K make the device dust- and waterproof, suitable for outdoor use, and protect against splashing water, temporary submersion, and high-pressure cleaning. The marked faceplate enables clear identification of the function during operation. Typical applications include machine controls, plant automation, and process control systems.
Functions and Equipment in Detail
The faceplate is white and marked, making the function of the button clearly identifiable during operation. The latching function allows for secure and unambiguous actuation, with the latching/actuation function being adjustable on the device. This provides flexibility during commissioning and adaptation to different requirements. The device is equipped with RMQ-SWD connections, enabling integration with SmartWire-DT. This interface is used in modern industrial control systems to simplify communication between control elements and control units.
Technology Explained Simply
The protection ratings IP66, IP66, and IP69K provide a high level of protection against dust and water. IP66 protects against strong splashing water from any direction, IP66 against temporary submersion under water, and IP69K against high-pressure and steam cleaning. These properties make the pushbutton particularly suitable for demanding environments, such as in the food industry, automotive manufacturing, or chemical industry. The metallic front ring ensures mechanical strength and resistance to vibrations and mechanical stress. Connection to SmartWire-DT enables integrated control, where the button communicates with the control system over the network without requiring additional cabling for signal transmission.
Compatibility and Accessories
The device is equipped with RMQ-SWD connections, ensuring compatibility with SmartWire-DT systems. Suitable accessories include various mounting and fastening elements such as threaded rings (e.g. M22-GR7, M22-GR), mounting keys (M22-MS), telescopic clips (M22-TC, M22-TCV), and mounting adapters (M22-A). Additionally, LED elements are available in various colors (red, green, blue, white, red/green, red/green/blue) to enable visual feedback. These elements can be used to extend the functionality of the control element, for example to indicate operating states or error messages.
Mounting and Installation
Mounting is done in standard panel cutouts with a diameter of 36 mm. The flat design and metallic front ring facilitate installation in control panels and allow for secure fastening. The use of accessories such as threaded rings or telescopic clips may be necessary depending on wall thickness and mounting conditions to ensure a firm and secure anchoring. Connection to SmartWire-DT is achieved via the integrated RMQ-SWD connections, eliminating the need for additional cabling for signal transmission.
Operational Advantages
The pushbutton offers high reliability and longevity due to its robust construction and high protection ratings. The adjustable latching/actuation function allows flexible adaptation to different requirements. Connection to SmartWire-DT reduces cable count and simplifies installation and maintenance. The clear marking of the faceplate ensures unambiguous operation, increasing operational safety. Compatibility with various accessories extends the functionality and adaptability of the device.
Standards and Regulations
The device complies with standards IEC/EN 60947 and VDE 0660, which apply to control devices in electrical installations. These standards guarantee electrical safety, reliability, and functionality of the device under industrial conditions. Compliance with these standards is required for use in industrial plants and ensures that the device meets safety and quality requirements.
| General | |
| Assortment | RMQ-Titan |
| Construction type | Flat |
| Function | latching |
| Tactile plate | White |
| Degree of protection | IP66, IP67, IP69K |
| Front ring | Metal |
| Standards and regulations | IEC/EN 60947, VDE 0660 |
| Keycap labeled | |
| Connection to SmartWire-DT | |
| Latching/tactile function adjustable | |
Questions & answers
What is the delivery time of Eaton 182938 M30C-FDR-W-X1 push button, Flat Front, flat, latching, ?
The article Eaton 182938 M30C-FDR-W-X1 push button, Flat Front, flat, latching, is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 182938 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 182938 M30C-FDR-W-X1 push button, Flat Front, flat, latching, always at the best possible price. We can give you a discount of 2% on Eaton 182938 M30C-FDR-W-X1 push button, Flat Front, flat, latching, if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Eaton 182938 M30C-FDR-W-X1 push button, Flat Front, flat, latching, we can offer you a price of 24,12 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
