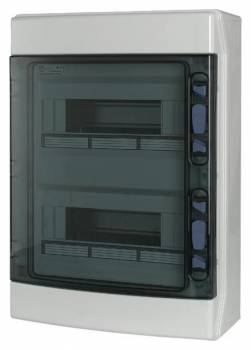

Eaton 174207 IKA-2/24-OT distribution board IP65 2-row 24TE without terminals content_copy

IKA damp room small distributor RAL7035, without neutral and protective conductor terminal, CNC foamed seal for protection class IP65 according to IEC/EN 62208, 24 division units, 2-row, approved for the construction of installation distributors according to IEC/EN 61439-3 VDE 0660-600-3, integrated module compensation for different device widths, metric cable knockouts with centering point, housing made of ABS and door made of polycarbonate, for the installation of switching and protective devices according to dimensional standard DIN 43 880 with 70 mm or 85 mm installation depth, AC 1000 V, DC 1500 V, RoHs compliant, consisting of plastic base with removable top hat rail frame made of galvanized sheet steel, top hat rail depth adjustable in 2 positions, direct mounting wall mounting holes, knockout for metric cable entries at the top and bottom, side Pre-punched holes for connecting elements to connect two or more enclosures next to each other, top section with 46 mm device opening, transparent door flush with the front, can be hinged on the right or left, door hinge can be easily changed on site at a later date without removing the top section of the enclosure, top section of the enclosure with sealable quick-release fasteners, door lockable with LOCK-KIT-IKA accessory, door sealable, including labeling strip.
