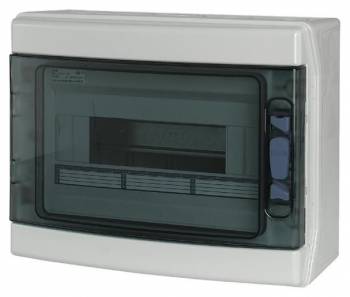

Eaton 174197 IKA-1/12-ST distribution board IP65 1-row 12 TE + terminals content_copy

IKA damp room small distributor RAL7035, with neutral and protective conductor terminal, CNC foamed seal for protection class IP65 according to IEC/EN 62208, 12 division units, 1-row, approved for the construction of installation distributors according to IEC/EN 61439-3 VDE 0660-600-3, integrated module compensation for different device widths, metric cable knockouts with centering point, housing made of ABS and door made of polycarbonate, for the installation of switching and protective devices according to dimensional standard DIN 43 880 with 70 mm or 85 mm installation depth, AC 1000 V, DC 1500 V, RoHs compliant, consisting of plastic base with top hat rail made of galvanized sheet steel, top hat rail depth adjustable in 2 positions, direct mounting wall mounting holes, finger-safe neutral and protective conductor terminal IP2X, knockout for metric Cable entries at the top and bottom, side knockouts for connecting elements to connect two or more housings next to each other, top section with 46 mm device opening, transparent door flush with the front, can be hinged on the right or left, door hinge can be easily changed on site without removing the top section of the housing, top section of the housing with sealable quick-release fasteners, door lockable with LOCK-KIT-IKA accessory, door sealable, including empty space cover and labeling strips.
