Eaton 172784 P3-63/M4/SVB main switch intermediate construction metal shaft

Your rating:
Average rating
product review for Eaton 172784 P3-63/M4/SVB main switch intermediate construction metal shaft
( 4.4 / 5 ) 39 ratings

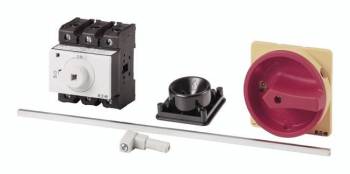

Eaton 172784
This image may differ from the desired article.
Eaton 172784Eaton 172784
180,49 EUR 180,72 EUR
( 214,78 EUR incl. VAT )
≈ £151.07  |  ≈ $198.36
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Eaton 172784 P3-63/M4/SVB main switch intermediate construction metal shaft
Lieske Part No.:274467
Mfg Part No: 172784
UPC/EAN: 4015081693702
Weight:0.564 kg
Type:P3-63/M4/SVB
Graduated prices net
From piecesPrice per pieces
5173,72 EUR
10166,95 EUR
15160,18 EUR
20153,42 EUR

Product information for Eaton 172784:

The main switch P3-63/M4/SVB from Eaton is a 3-pole power disconnector for rear mounting in control panels. It is designed for the safe disconnection of electrical systems and features an emergency stop function that can be locked in position 0 (off). The switch is equipped with a red rotary handle and a yellow locking ring, making the operating position visually identifiable. The metal shaft allows for a control panel depth of 400 mm and is specifically designed for use with extension shafts such as the P1/P3-400 (item number 172844). The front side of the device has a protection rating of IP65, which is dust-tight and splash-proof, making it suitable for outdoor use or in humid environments.

Main switch with emergency stop function is designed for use in industrial systems and machine controls. The locking capability in position 0 ensures that the switch can only be locked in the off position, increasing safety during maintenance work. The rated continuous current is 63 A, with a rated operational power of 30 kW at AC-23A, 50–60 Hz, and 400 V. These values make the switch suitable for medium to high loads in industrial applications.

Functions and equipment in detail include the integrated emergency stop function, visually highlighted by the red rotary handle and yellow locking ring. The locking option in position 0 enables safe disconnection, protected against unintentional re-energizing. The switch is designed for rear mounting, allowing integration into existing control panels. The metal shaft ensures a stable connection and provides sufficient control panel depth of 400 mm.

Technology explained simply shows that the switch is designed for operation in electrical systems with a voltage of 400 V and a frequency of 50–60 Hz. The rated operational power of 30 kW at AC-23A is suitable for drives and machines with medium to high power. The IP65 protection rating protects the front side from dust and splashing water, making it suitable for environments with increased contamination risk or humidity. The emergency stop function is an important safety feature that allows immediate disconnection in emergencies or during maintenance.

Compatibility and accessories include various extensions available for use with the P3-63/M4/SVB. These include the locking extension ZVV-P3, the shaft extension ZAV-P3, additional front shields such as ZFS61/62-P3, and knob handles in various colors (e.g., KNB-RT-P3 red, KNB-P3 black). Other components include the maintenance key KNK-P3, coupling drives DE-P3, the padlock lockout SVB-T0, the terminal cover H-P3, and locking parts UV-P3. These accessories allow individual adaptation to specific operational requirements.

Mounting and installation is performed via rear mounting into the control panel. The metal shaft is designed for a control panel depth of 400 mm and requires the use of an extension shaft such as the P1/P3-400 (172844) to correctly position the handle. Installation is done without additional tools, although auxiliary contacts or neutral conductors must be installed by the customer. The locking in position 0 is activated by the integrated mechanism, ensuring safe disconnection.

Advantages in operation include high safety due to the emergency stop function and the locking capability in position 0. The IP65 protection rating allows use in harsh environments, and the rated values of 63 A and 30 kW make the switch suitable for a wide range of industrial applications. Compatibility with various accessories allows flexible adaptation to specific requirements. The robust construction with a metal shaft ensures long service life and reliable operation.

The rated continuous current of 63 A and the rated operational power of 30 kW at 400 V and 50–60 Hz are typical for operation in industrial systems. The IP65 protection rating is suitable for use in humid or dusty environments. The emergency stop function is an integrated safety feature that allows immediate disconnection in emergencies or during maintenance. The locking in position 0 increases safety during maintenance work. The metal shaft is designed for a control panel depth of 400 mm and requires the use of an extension shaft. Auxiliary contacts or neutral conductors are installed by the customer.

General
Degree of protectionIP65
Rated continuous current63 A
Rated operating power30 kW
Operating voltage400 V
Frequency50 - 60 Hz
Poles3
Construction typerear mounting
Stop functionEMERGENCY STOP function
Latching devicelockable in position 0 (off)
ShaftMetal shaft
Control panel depth400 mm
