Eaton 170988 FRBM6-B16/3N/003-A RCD/LS switch, 16 A, 30 mA, B-characteristic

Your rating:
Average rating
product review for Eaton 170988 FRBM6-B16/3N/003-A RCD/LS switch, 16 A, 30 mA, B-characteristic
( 4.6 / 5 ) 30 ratings

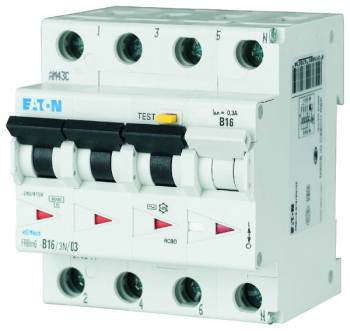

Eaton 170988
This image may differ from the desired article.
Eaton 170988Eaton 170988
218,97 EUR 228,20 EUR
( 260,57 EUR incl. VAT )
≈ £183.28  |  ≈ $240.65
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >25 pieces
1x Eaton 170988 FRBM6-B16/3N/003-A RCD/LS switch, 16 A, 30 mA, B-characteristic
Lieske Part No.:275008
Mfg Part No: 170988
UPC/EAN: 4015081671113
Weight:0.469 kg
Type:FRBM6-B16/3N/003-A
Graduated prices net
From piecesPrice per pieces
5210,76 EUR
10202,55 EUR
15194,34 EUR
20186,12 EUR

Product information for Eaton 170988:

The residual current circuit breaker / line circuit breaker combination type FRBM6-B16/3N/003-A from Eaton is a compact, mains-independent switch for use in electrical distributions. It combines the functions of a residual current circuit breaker (RCCB) with those of a line circuit breaker (LCB) in a single device, thereby achieving an integrated protection function against electrical fault current and against overload or short circuit. The device is suitable for use in construction power and outdoor distribution installations, even at ambient temperatures down to -25 °C, enabling its use in outdoor environments. The protection functions are independent of the mains voltage, so the switch remains effective even during voltage dips or power failures.

Applications

The FRBM6-B16/3N/003-A is designed for use in electrical distributions, particularly in construction power and outdoor distribution installations. It is suitable for applications requiring high reliability and protection functions against fault currents and overloads. The operating temperature down to -25 °C makes it suitable for cold outdoor environments, for example in industrial plants, construction sites, or outdoor-mounted distributors. The combination of RCCB and LCB functions enables compact installation without additional switches.

Functions and Equipment in Detail

The device features a contact position indicator in red-green, which visually signals the state of the switch. A terminal rear access protection prevents accidental contact with the terminals, increasing safety during maintenance work. The tristable latch slider allows the device to be removed from an existing modular assembly without having to remove other devices. This simplifies maintenance and replacement. The accessory program is retrofittable, enabling the functionality of the device to be extended.

Technology Explained Simply

The switch operates with a rated current of 16 A and a rated residual current of 30 mA. The B-type tripping characteristic ensures selective disconnection in case of overloads, with disconnection beginning at approximately 1.3 times the rated current. The rated switching capacity is 6 kA, describing the switch’s ability to safely interrupt a short-circuit current.

Compatibility and Accessories

Various accessories are available for the device and can be retrofitted. These include the ZP-NHK tripping signal switch 2W, the ZP-IHK auxiliary switch 1NO1NC, the ZP-ASA/230 operating current tripping unit for voltages of 110–415 V AC, the ZP-WHK auxiliary switch 1W, and the ZP-ASA/24 operating current tripping unit for voltages of 12–110 V AC. These accessories extend the functionality of the switch, for example by adding signaling devices or additional auxiliary switches for control applications.

Mounting and Installation

The switch is designed for installation in modular devices and can be integrated into existing modular assemblies. The tristable latch slider facilitates replacement, as the device can be removed without removing adjacent devices. Installation is carried out in the usual manner for modular devices, with the terminal rear access protection increasing safety during installation.

Advantages in Operation

The combination of RCCB and LCB functions in a single device reduces space requirements and simplifies installation. The mains-independent function ensures protection remains effective even during voltage dips. The contact position indicator allows for quick visual inspection of the operating state. The ability to retrofit accessories increases the device’s flexibility for different applications. The suitability for operation down to -25 °C makes the switch suitable for cold environments without requiring additional protective measures.

General
Rated current16 A
Rated fault current30 mA
Tripping characteristicB
Rated switching capacity6 kA
Working temperature-25 °C
Latching slidertristable
Accessoriesretrofittable
Voltage-independentYes
Terminal rear insertion protectionYes


Questions & answers

What is the delivery time of Eaton 170988 FRBM6-B16/3N/003-A RCD/LS switch, 16 A, 30 mA, B-characteristic ?

The article Eaton 170988 FRBM6-B16/3N/003-A RCD/LS switch, 16 A, 30 mA, B-characteristic is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 170988 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 170988 FRBM6-B16/3N/003-A RCD/LS switch, 16 A, 30 mA, B-characteristic always at the best possible price. We can give you a discount of 2% on Eaton 170988 FRBM6-B16/3N/003-A RCD/LS switch, 16 A, 30 mA, B-characteristic if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 170988 FRBM6-B16/3N/003-A RCD/LS switch, 16 A, 30 mA, B-characteristic we can offer you a price of 210,76 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
