Eaton 170630 FRBMM-C13/1N/003-G/A residual current circuit breaker 13A 30mA LS characteristic C 1p+N FI characteristic A

Your rating:
Average rating
product review for Eaton 170630 FRBMM-C13/1N/003-G/A residual current circuit breaker 13A 30mA LS characteristic C 1p+N FI characteristic A
( 4 / 5 ) 2 ratings

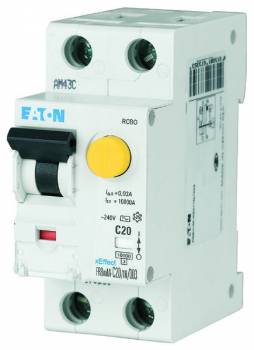

Eaton 170630
This image may differ from the desired article.
Eaton 170630Eaton 170630
131,78 EUR 137,33 EUR
( 156,82 EUR incl. VAT )
≈ £110.30  |  ≈ $144.83
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: 5 pieces
1x Eaton 170630 FRBMM-C13/1N/003-G/A residual current circuit breaker 13A 30mA LS characteristic C 1p+N FI characteristic A
Lieske Part No.:1001806
Mfg Part No: 170630
UPC/EAN: 4015081672141
Weight:0.212 kg
Type:FRBMM-C13/1N/003-G/A
Graduated prices net
From piecesPrice per pieces
5127,83 EUR
10123,87 EUR
15119,92 EUR
20115,97 EUR

Product information for Eaton 170630:

The residual current circuit breaker/overload circuit breaker combination type FRBMM-C13/1N/003-G/A from Eaton is a compact, mains-independent switching device for use in electrical distributions. It combines the functions of a residual current circuit breaker (RCCB) with those of an overload circuit breaker (OCB) in a single housing. The combination is designed for use in single-phase networks with 1p+N connection and offers a rated current of 13 A and a rated residual current of 30 mA. The tripping characteristic is classified as C, indicating medium sensitivity to overloads and short circuits. The protection against residual currents operates according to the RCCB characteristic A, suitable for detecting pulsating residual currents, such as those occurring in devices with electronic switch-mode power supplies.

Applications
This device is designed for use in construction site power and outdoor distribution systems, and can also be operated outdoors at ambient temperatures down to -25 °C. The construction allows for mounting in row-mounted installations, with the tristable latching slider enabling safe removal from an existing row-mounted assembly. This is particularly advantageous for maintenance or replacement work, as the switch can be removed without damaging adjacent devices.

Functions and Equipment in Detail
The switch features a contact position indicator in red-green, visually signaling the switch state: green for on, red for off. This facilitates state monitoring during operation. Additionally, an integrated terminal rear access protection prevents accidental contact with the terminals during installation or maintenance. The switching function is mains-independent, meaning the switch operates reliably even during power failure or voltage fluctuations.

Technology Explained Simply
The combination of RCCB and OCB functions in a single device reduces space requirements in distributions and simplifies installation. The rated residual current of 30 mA ensures a high level of protection against electric shock, especially in damp or hazardous areas. The rated switching capacity of 10 kA guarantees that the switch will safely disconnect even under high short-circuit currents. The C tripping characteristic is suitable for applications with medium inrush currents, such as those occurring with motors, heaters, or electronic devices.

Compatibility and Accessories
The device can be expanded with various accessories that can be mounted retroactively. These include, for example, the ZP-NHK tripping signal switch 2W, the ZP-IHK auxiliary switch 1S1Ö, the ZP-ASA/230 operating current tripping unit for voltages of 110–415 V AC, the ZP-WHK auxiliary switch 1W, and the ZP-ASA/24 operating current tripping unit for voltages of 12–110 V AC. These additional modules enable functional expansion, such as for remote control, status indication, or additional protection functions.

Mounting and Installation
The switch is designed for installation in standard installation rails (DIN rails). Mounting is done by screwing into row-mounted installations, with the tristable latching slider enabling safe and easy removal. The terminals are designed for connection with cables, and the rear access protection increases safety during installation. The devices are designed for use in distributions operated outdoors or in construction site installations.

Advantages in Operation
The combination of RCCB and OCB functions in a single device reduces the number of required components and simplifies planning and installation. The mains-independent function ensures reliable disconnection even during voltage fluctuations. The operational capability down to -25 °C extends the application range to colder regions or construction sites in winter. The visual contact position indicator and the terminal rear access protection increase safety and user-friendliness in daily operation.

General
Rated current13 A
Rated fault current30 mA
Release characteristicC
RCD characteristicA
Rated switching capacity10 kA
Number of poles1 p+N
Degree of protectionsuitable for outdoor use
Operation temperature-25 °C
Latching slidertristable
Terminal rear insertion protectionYes
Voltage-independentYes
