Eaton 167901 FRCDM-40/4/03-S/B digital residual current circuit breaker 40 A 4-pole 300 mA type B

Your rating:
Average rating
product review for Eaton 167901 FRCDM-40/4/03-S/B digital residual current circuit breaker 40 A 4-pole 300 mA type B
( 4.4 / 5 ) 5 ratings

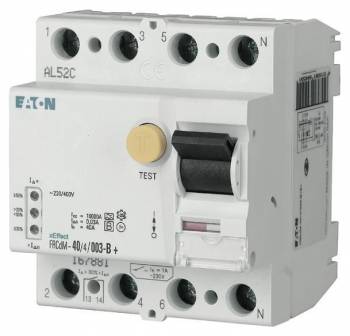

Eaton 167901
This image may differ from the desired article.
Eaton 167901Eaton 167901
965,09 EUR 1.005,72 EUR
( 1.148,46 EUR incl. VAT )
≈ £807.78  |  ≈ $1,060.63
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Eaton 167901 FRCDM-40/4/03-S/B digital residual current circuit breaker 40 A 4-pole 300 mA type B
Lieske Part No.:1134275
Mfg Part No: 167901
UPC/EAN: 4015081644766
Weight:0.353 kg
Type:FRCDM-40/4/03-S/B
Graduated prices net
From piecesPrice per pieces
3950,61 EUR
6936,14 EUR
9921,66 EUR
12907,18 EUR

Product information for Eaton 167901:

The residual current circuit breaker FRCDM-40/4/03-S/B from Eaton is a 4-pole, digital universal current residual current device for industrial and extended commercial applications. It is designed for use in electrical installations where high protection against dangerous fault currents is required, particularly in environments with increased fire or electric shock risk. The device features a rated current of 40 A and is designed for protection against fault currents from 0.3 A, making it suitable for installations with sensitive electronic equipment or in areas with high personnel density.

Applications

The FRCDM-40/4/03-S/B is suitable for use in industrial installations, such as production halls and machine controls, as well as in extended commercial facilities, such as office buildings with IT infrastructure. It protects personnel and installations against dangerous fault currents that may arise from insulation faults, short circuits, or other electrical disturbances. The 4-pole configuration enables protection of 3-phase networks with neutral conductor, which is standard in industrial electrical engineering.

Functions and Equipment in Detail

The device is designed as a universal current residual current circuit breaker (Type B), meaning it can detect and switch off both alternating and direct current fault currents. This is particularly important in installations where direct current components, such as those from solar installations or electronic devices, are present. The rated residual current is 0.3 A, corresponding to a sensitivity of 300 mA, which is sufficient for protection against dangerous touch currents. The digital design enables precise control and monitoring of the switch, with functions such as test, switch-off, and re-energization being controllable via electronic signals.

Technology Explained Simply

The circuit breaker features a rated short-circuit withstand capacity of 10 kA, meaning it can safely switch off short-term, high current surges during a short circuit without damage. This withstand capacity is supported by the pre-fuse, which limits current flow in the event of an extreme short circuit. The protection rating is not explicitly stated, however, the 4-pole configuration and digital control are typical for devices used in enclosed enclosures or industrial environments. The operating voltage is not directly specified, however, compatibility with 230 V AC is implied through accessories (e.g., re-energizing device 230 V AC).

Compatibility and Accessories

Various accessories are available for the FRCDM-40/4/03-S/B, extending its functionality. These include the re-energizing device Z-FW-LP (230 V AC), the remote test module Z-FW/003 (0.03 A), the remote switch module Z-FW-MO (ON/OFF/TEST), and the re-energizing device set Z-FW-LP/MO. Additionally, auxiliary switches (Z-HK, 1NO1NC) and trip signal switches (Z-NHK, 2W) are available, suitable for integration into higher-level control and monitoring systems. These modules enable remote testing, switching off, and re-energizing of the circuit breaker, which is advantageous in automated installations.

Mounting and Installation

The residual current circuit breaker is designed for panel mounting in standard enclosures. Mounting is carried out in the usual manner within an enclosure using an appropriate mounting profile. The connection cross-sections are not explicitly stated, however, the 4-pole configuration is designed for connection to 3-phase networks with neutral conductor. Installation requires compliance with applicable standards and regulations for electrical installations, particularly VDE 0100 and DIN VDE 0664.

Advantages in Operation

The FRCDM-40/4/03-S/B offers high reliability through digital control and the ability to detect both alternating and direct current fault currents. Compatibility with various remote control modules enables integration into intelligent control systems. The rated short-circuit withstand capacity of 10 kA with pre-fuse ensures safe switching off during high current surges. The 4-pole configuration ensures complete protection of the entire electrical installation, including the neutral conductor.

General
Number of poles4
Rated current40 A
Rated fault current0,3 A
Rated short-circuit withstand capacity10 kA
Application rangeindustrial and extended commercial applications
FuseYes
