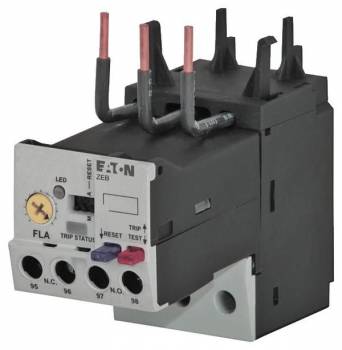

Eaton 136488 ZEB32-20 electronic motor protection relay 4–20 A

Your rating:
Average rating
product review for Eaton 136488 ZEB32-20 electronic motor protection relay 4–20 A
( 4.3 / 5 ) 7 ratings
Eaton 136488
This image may differ from the desired article.
Eaton 136488Eaton 136488Eaton 136488
150,81 EUR
incl. 0,96 EUR copper surcharge
( 179,46 EUR incl. VAT )
≈ £126.23  |  ≈ $165.74
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Eaton 136488 ZEB32-20 electronic motor protection relay 4–20 A
Datasheet:file_download Download
Lieske Part No.:854476
Mfg Part No: 136488
UPC/EAN: 4015081332687
Weight:0.424 kg
Type:ZEB32-20

Product information for Eaton 136488:

The Eaton ZEB32-20 is an electronic motor protection relay from the ZEB series, designed for monitoring and protecting electric motors against overload and phase failure. It is designed for use in industrial plants where reliable motor control and protection functions are required. The device features a direct mounting variant and can be operated on various contactors and SD contactors, with compatibility explicitly specified for models such as DILM17, DILM25, DILM32, DILM38, DIULM17, DIULM25, DIULM32, SDAINLM30, SDAINLM45, and SDAINLM55. The protection function includes detection of overload conditions as well as phase failures, with phase failure sensitivity specified according to IEC/EN 60947 and VDE 0660 Part 102. The protection class ranges from Class 10A to Class 30, enabling adaptation to different starting conditions, particularly under heavy starting loads.

Motor protection relay features an integrated Test/Off button and a Reset button, enabling manual or automatic resetting of the relay. The choice between manual and automatic reset is selectable, increasing operational flexibility. The auxiliary contacts consist of one normally closed contact (1 Oe) and one normally open contact (1 S), which can be used for additional control and signaling tasks. The operating voltage is 690 V AC, and the maximum current is 20 A. The operating temperature range is from -25 °C to 65 °C, enabling use in various industrial environments. The protection rating IP20 ensures protection against contact with fingers and against solid foreign objects, but not against water or dust – therefore, the device is intended for indoor use only.

Functions and equipment in detail include electronic overload detection, enabling precise and reliable response to load changes. The integrated phase failure detection protects the motor from uneven voltage supply, which can lead to motor damage. The Test/Off button is used to check the relay’s functionality, while the Reset button enables resetting after a tripping event. The selectable reset function (manual/automatic) allows adaptation to the specific requirements of the installation. The auxiliary contacts can be used in control circuits, for example, to transmit signals to other devices or trigger alarms.

Technology explained simply the ZEB32-20 is based on an electronic control logic that continuously monitors the motor’s current consumption. When a preset threshold value is reached, the motor is switched off to prevent damage. The protection class from Class 10A to Class 30 allows adaptation to motors with different starting behaviors, especially under high starting resistance. Direct mounting on contactors reduces installation time and simplifies integration into existing systems. The IP20 protection rating means the device is protected against contact with fingers and against ingress of solid foreign objects, but not against water or dust – therefore, it is suitable exclusively for indoor use.

Compatibility and accessories includes use with a variety of contactors and SD contactors, such as DILM17, DILM25, DILM32, DILM38, DIULM17, DIULM25, DIULM32, SDAINLM30, SDAINLM45, and SDAINLM55. The listed models are explicitly mentioned in the product description and can be combined with the ZEB32-20. The accessories list includes various contactor models offered within the same product family, but does not include any additional components directly connected to the ZEB32-20. Combining the relay with the specified contactors enables flexible application in various industrial control systems.

Mounting and installation is performed by direct mounting onto compatible contactors. Installation requires no additional components, as the relay is directly connected to the contactor terminals. The connection terminals are designed for connection to contactor wiring, with the exact connection method to be taken from the technical documentation of the respective contactor models. Direct mounting reduces the number of required connections and increases the reliability of the system.

Advantages in operation include the high reliability of electronic overload detection, flexibility through selectable reset function, and easy integration into existing systems. The integrated auxiliary contacts enable additional control functions, and compatibility with a wide range of contactor models increases applicability. The operating temperature range of -25 °C to 65 °C ensures functionality in various industrial environments. The IP20 protection rating is sufficient for indoor use, with outdoor application not intended. Compliance with standards IEC/EN 60947, VDE 0660, UL, and CSA ensures conformity with international safety standards.

Features
Product colourBlack, Grey
Operational conditions
Operating temperature (T-T)-25 - 65 °C
Power
AC input voltage690 V
Current20 A


Please note...
This article contains a copper surcharge of 0,96 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Eaton 136488, EAN: 4015081332687

Questions & answers

What is the delivery time of Eaton 136488 ZEB32-20 electronic motor protection relay 4–20 A ?

The article Eaton 136488 ZEB32-20 electronic motor protection relay 4–20 A is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 136488 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 136488 ZEB32-20 electronic motor protection relay 4–20 A always at the best possible price. We can give you a discount of 2% on Eaton 136488 ZEB32-20 electronic motor protection relay 4–20 A if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
