Eaton 125049 OPTA2 output extension 2RO (NO/NC) for FU SVX and SPX

Your rating:
Average rating
product review for Eaton 125049 OPTA2 output extension 2RO (NO/NC) for FU SVX and SPX
( 4.6 / 5 ) 17 ratings

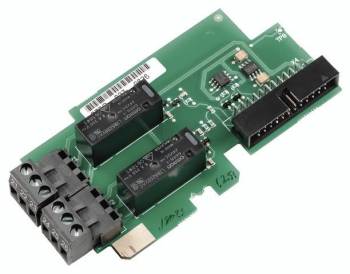

Eaton 125049
This image may differ from the desired article.
Eaton 125049Eaton 125049
46,78 EUR 48,19 EUR
( 55,67 EUR incl. VAT )
≈ £39.15  |  ≈ $51.41
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Eaton 125049 OPTA2 output extension 2RO (NO/NC) for FU SVX and SPX
Lieske Part No.:127658
Mfg Part No: 125049
UPC/EAN: 4015081226603
Weight:0.646 kg
Type:OPTA2

Product information for Eaton 125049:

The OPTA2 output extension from Eaton is a module for expanding the output functions of frequency converters from the SVX and SPX series. The device is directly plugged into the frequency converter and provides two relay outputs, each configurable as a normally open (NO) and normally closed (NC) contact. These outputs are used to control external components, such as signaling systems, warning lights, or auxiliary relays, and enable flexible integration with existing control and safety systems in industrial applications.

Applications

The OPTA2 output extension is designed for use in industrial drive systems, particularly in installations where additional control or signaling functions are to be managed via the frequency converter. Typical application scenarios include controlling warning lights during operating states, providing feedback of operating states to a higher-level control system, or integrating into safety circuits. Compatibility with the SVX and SPX frequency converter series makes this module a universal add-on for existing installations.

Functions and Equipment in Detail

The module features two independent relay outputs, each of which can be operated as NO (normally open) and NC (normally closed). These outputs enable control of loads in industrial electrical engineering, for example, for signal lights, control relays, or small electromechanical switches. Installation is performed by directly plugging the module into the frequency converter, establishing both a mechanical and electrical connection.

Technology Explained Simply

The OPTA2 output extension operates as a passive expansion unit that does not require its own power supply, instead being powered by the frequency converter. The relay outputs are galvanically isolated, enabling safe separation between the control circuit of the frequency converter and the connected load. Control is performed via internal signals from the frequency converter, which switch the relays depending on programming and operating status.

Compatibility and Accessories

The output extension is specifically developed for frequency converters from the SVX and SPX series by Eaton. Use in other frequency converter models is not intended and is not supported. The plug-in connection is specifically designed for the mentioned inverter models.

Mounting and Installation

Mounting is performed by simply plugging the module into the designated socket on the frequency converter. No additional tools or mounting work are required. The electrical connection is established via the plug-in connection, and the function is activated through the internal control of the frequency converter.

The functions are activated via the frequency converter's control system, with the exact programming of the outputs performed using the respective inverter software.

Advantages in Operation

The OPTA2 output extension enables simple expansion of control functions for frequency converters without additional external circuits. Direct integration into the inverter reduces the number of required connections and decreases susceptibility to errors. The galvanic isolation of the relay outputs increases safety and prevents interference in the control circuit. Use in existing installations with SVX and SPX inverters is straightforward, as no additional components or adapters are required.

General
ManufacturerEaton
Number of relay outputs2
Relay output typeNO/NC
Utilizationfor frequency converters SVX and SPX
Mounting methodinsert into frequency converter


Questions & answers

What is the delivery time of Eaton 125049 OPTA2 output extension 2RO (NO/NC) for FU SVX and SPX ?

The article Eaton 125049 OPTA2 output extension 2RO (NO/NC) for FU SVX and SPX is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 125049 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 125049 OPTA2 output extension 2RO (NO/NC) for FU SVX and SPX always at the best possible price. We can give you a discount of 2% on Eaton 125049 OPTA2 output extension 2RO (NO/NC) for FU SVX and SPX if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
