Eaton 121472 M22-K01SMC10 contact element 1NC front screw connection

Your rating:
Average rating
product review for Eaton 121472 M22-K01SMC10 contact element 1NC front screw connection
( 4.7 / 5 ) 10 ratings

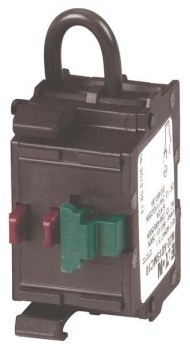

Eaton 121472
This image may differ from the desired article.
Eaton 121472Eaton 121472Eaton 121472
19,85 EUR 19,86 EUR
( 23,62 EUR incl. VAT )
≈ £16.61  |  ≈ $21.82
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >50 pieces
1x Eaton 121472 M22-K01SMC10 contact element 1NC front screw connection
Datasheet:file_download Download
Lieske Part No.:460707
Mfg Part No: 121472
UPC/EAN: 4015081192908
Weight:0.123 kg
Type:M22-K01SMC10
Graduated prices net
From piecesPrice per pieces
1519,25 EUR
3018,66 EUR
7018,06 EUR
10017,47 EUR

Product information for Eaton 121472:

The Eaton M22-K01SMC10 contact element is an insert component for control devices, specifically designed for integration into industrial control systems. It functions as an electrical switch that is activated upon operation of a pushbutton or operating part. The device is black and features a screw terminal connection system, enabling secure and reliable connections for cable cross-sections between 0.5 and 2.5 mm². Mounting is done on the front side of the pushbutton, making it suitable for use in standard control devices. The operating temperature ranges from -25 °C to 70 °C, allowing use in a wide range of industrial environments.

Applications
This contact element is intended for use in industrial control systems, particularly in installations requiring safety-critical functions. It is typically used in conjunction with emergency stop or emergency off pushbuttons to ensure that the electrical contact is safely opened when the pushbutton is operated. The design complies with the requirements of IEC/EN 60947-5-1, particularly the requirements for forced opening, which ensures safe disconnection of circuits even in the event of mechanical failure. The protection rating IP20 protects against finger contact and solid foreign objects, but not against water or dust, making it suitable for indoor use.

Functions and Equipment in Detail
The element features one close contact (1 S) and one open contact (1 Ö), enabling it to be used for both signal transmission and circuit disconnection. The forced opening function ensures that the contact is reliably opened when the pushbutton is operated, regardless of the mechanical integrity of the operating part. The actuation force is at least 15 N, and the travel of the operating part is 4.8 mm, with a maximum travel of 5.7 mm. These values comply with the requirements of DIN EN 60947-5-1, K.5.4.1, ensuring reliable and verifiable operation.

Technology Explained Simply
The screw terminals allow for easy and secure connection of wires without requiring additional tools or special skills. Front mounting ensures the contact element is directly attached to the pushbutton, enabling a compact and robust installation. Forced opening is a critical safety feature that ensures the contact opens even if the operating part is damaged or deformed. This is particularly important in safety-critical applications, such as machine control or emergency stop functions.

Compatibility and Accessories
The contact element is compatible with various pushbuttons, particularly emergency stop and emergency off pushbuttons from the M30 series, such as the M30-PV30, M30-PVT30, or M30-PVLT30. These pushbuttons are also coated with RMQ-Titan and have a mushroom shape, ensuring a robust and durable design. Combining this element with these pushbuttons enables the implementation of safe emergency stop functions in industrial installations. Connection to SmartWire-DT is not intended, so the element is not suitable for decentralized control systems using this technology.

Mounting and Installation
Mounting is done via front attachment to the pushbutton, with screw terminals used for wire connections. Cable cross-sections from 0.5 to 2.5 mm² are supported, enabling broad applicability in various industrial environments. Installation does not require special tools, and the connection terminals are designed for easy handling. The operating temperature range of -25 °C to 70 °C allows use in environments with varying climatic conditions, provided the IP20 protection rating is maintained.

Advantages in Operation
The contact element provides a reliable and safe switching function that meets the requirements of IEC/EN 60947-5-1. The forced opening function enhances safety in critical applications, and the screw terminals enable simple and secure connections. The robust construction and compatibility with common emergency stop pushbuttons make it a suitable component for industrial control systems. The operating temperature range of -25 °C to 70 °C extends its application to various industrial environments, as long as the IP20 protection rating is observed.

Features
Product colourBlack
Number of contacts2
Cable section0.5 - 2.5 mm²
Operational conditions
Operating temperature (T-T)-25 - 70 °C


Product data sheet
Datasheet for Eaton 121472, EAN: 4015081192908

Questions & answers

What is the delivery time of Eaton 121472 M22-K01SMC10 contact element 1NC front screw connection ?

The article Eaton 121472 M22-K01SMC10 contact element 1NC front screw connection is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 121472 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 121472 M22-K01SMC10 contact element 1NC front screw connection always at the best possible price. We can give you a discount of 2% on Eaton 121472 M22-K01SMC10 contact element 1NC front screw connection if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Eaton 121472 M22-K01SMC10 contact element 1NC front screw connection we can offer you a price of 19,25 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
