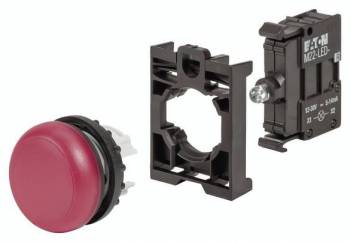

Eaton 110926 M22-L-R-LED-BVP indicator light complete device
|
26,75 EUR 27,88 EUR |
|||||||||||
|
( 31,83 EUR incl. VAT ) ≈ £22.39 | ≈ $29.40 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 293465 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 110926 | ||||||||||
| UPC/EAN: | 4015081104550 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | M22-L-R-LED-BVP | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 110926:
Applications
The signal lamp M22-L-R-LED-BVP is intended for use in industrial environments, particularly in control and switching installations where visual status indication is required. Typical application areas include machine controls, process plants, plant monitoring systems, and safety systems. The insert solution enables integration into existing control panels or control cabinets, with the front side of the device remaining visible to indicate operating status (e.g. operation, fault, ready). Use in combination with other M22 modules, such as mounting plates or surface-mounted enclosures, allows modular expansion of the display and control interface.
Functions and Equipment in Detail
The device features an integrated LED signal lamp serving as the visual signal source. The LED color is red, which in industrial signaling technology typically indicates warnings, fault conditions, or disturbances. The designation LED in the type designation confirms the use of a light-emitting diode as the light source, offering longer service life and higher energy efficiency compared to conventional incandescent lamps. The device is designed as a complete unit, meaning all necessary components for operation are already integrated. Connection to SmartWire-DT is not specified, indicating the device is not designed for communication over this specific fieldbus system.
Technology Explained Simply
The signal lamp operates using LED technology, which enables low heat generation and high light output. The red color of the LED is standardized for signaling critical conditions. The insert solution requires no additional mounting elements, as the device is directly inserted into the designated mounting openings in control panels or control cabinets. The display packaging serves storage and presentation purposes but is not part of the technical device. The designation BVP implies the device is designed for the front side of an enclosure, with the display directly visible.
Compatibility and Accessories
The device is part of Eaton's M22 module system and can be combined with various accessories to extend functionality. These include mounting plates such as M22-E1 (1-way), M22-E2 (2-way), M22-E3 (3-way), M22-E4 (4-way), M22-E5, M22-E6, and M22-EY1, which combine multiple M22 modules in a single unit. For surface mounting, enclosures such as M22-I1, M22-I2, M22-I3, M22-I4, M22-I6, M22-I12, and M22-IY1 are available. Additionally, hoods (e.g. M22-H1, M22-H2, M22-H3, M22-H6) and push-button protection membranes (e.g. M22-T-D) are available, improving mechanical protection and operability. The mounting adapter M22-ADC with dust protection (3-way) enables secure mounting in dusty environments.
Mounting and Installation
Mounting is performed by inserting the device into a suitable mounting opening, which is available in standard control panels or control cabinets. The electrical connection method is not specified in the text, but usage in industrial controls is common, with power supply provided via the respective control system. Installation requires no special tools, as the device is simply inserted or placed into the designated fittings.
Advantages in Operation
Using the M22-L-R-LED-BVP provides clear, visual status indication that can be quickly and unambiguously interpreted. LED technology ensures long service life and low maintenance frequency. Compatibility with the M22 module system enables flexible expansion of the display and control interface. The insert solution reduces space requirements and integrates seamlessly into existing control systems. The red color of the LED is internationally standardized for warning and fault conditions, increasing clarity in multinational operations.
| General | |
| Product type | indicator lights |
| Assortment | RMQ-Titan |
| Manufacturer | Eaton |
| LED colour | Red |
| Type of device | Complete device |
| Packaging type | display packaging for hanging |
| Module system | M22 |
| Light source | LED |
| Mounting type | Installation in control panels |
| Accessory compatibility | M22-E1, M22-E2, M22-E3, M22-E4, M22-E5, M22-E6, M22-EY1, M22-I1, M22-I2, M22-I3, M22-I4, M22-I6, M22-I12, M22-IY1, M22-H1, M22-H2, M22-H3, M22-H6, M22-T-D, M22-ADC |
| Connection to SmartWire-DT | |
