Eaton 110198 P1-32/E/SVB main switch for installation

Your rating:
Average rating
product review for Eaton 110198 P1-32/E/SVB main switch for installation
( 4.6 / 5 ) 10 ratings

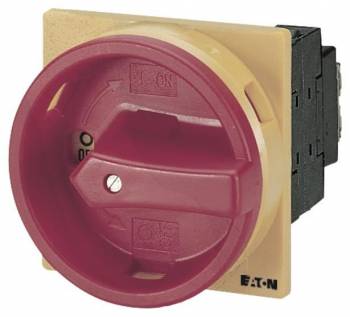

Eaton 110198
This image may differ from the desired article.
Eaton 110198Eaton 110198
76,17 EUR 76,28 EUR
( 90,64 EUR incl. VAT )
≈ £63.75  |  ≈ $83.71
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Eaton 110198 P1-32/E/SVB main switch for installation
Datasheet:file_download Download
Lieske Part No.:313886
Mfg Part No: 110198
UPC/EAN: 4015081097555
Weight:0.201 kg
Type:P1-32/E/SVB
Graduated prices net
From piecesPrice per pieces
673,31 EUR
1270,46 EUR
2467,60 EUR
3664,74 EUR

Product information for Eaton 110198:

The Eaton P1-32/E/SVB is an industrial rotary switch designed for use as a main switch in electrical installations. It is intended for mounting in control panels and features a 3-pole circuit with a rated current of 32 A. The switch type enables safe disconnection of the electrical power supply and is equipped with an EMERGENCY STOP function, ensuring immediate shutdown in emergency situations. The switch is lockable, preventing unintended switching, and includes a red rotary handle and a yellow locking collar, enhancing operability and visibility during operation. The IP65 protection rating ensures dust resistance and water tightness, enabling use in harsh environments such as industrial settings or outdoor applications. The operating temperature ranges from -25 °C to 50 °C, allowing use under various climatic conditions.

Applications
This switch is intended for use in industrial installations, machine controls, and switchgear where safe and reliable power disconnection is required. It is particularly suitable for systems with high safety requirements for operation and protection against unintended switching. The IP65 protection rating also makes it suitable for use in damp or dusty environments, such as in manufacturing, packaging technology, or machine building.

Functions and Features in Detail
The switch includes an EMERGENCY STOP function, enabling immediate disconnection of the power supply. This function is especially important in emergency situations to protect personnel or machinery from damage. The locking function prevents unintended switching, enhancing operational safety. The red rotary handle and yellow locking collar improve visual recognition and ease of operation. The switches are designed for mounting in control panels, allowing integration into existing installations.

Technical Explanation
The switch is a 3-pole rotary switch enabling electrical disconnection across three conductors. The rated voltage is 690 V, making it suitable for applications in industrial high-voltage systems. The rated current of 32 A is sufficient for most industrial applications. The IP65 protection rating means the switch is dust-tight and protected against water jets from all directions, making it suitable for outdoor use or damp indoor environments. The operating temperature range of -25 °C to 50 °C allows use in various environments, including demanding industrial facilities.

Compatibility and Accessories
Various accessories are available for this switch to extend its functionality. These include the KNB-RT-T0 red knob handle, the KNB-T0 black knob handle, and the padlockable locks SVB-SW-T0 and SVB-T0. These accessories allow individual customization of operation and safety. The padlockable locks enable securing the switch against unauthorized operation, which is advantageous in safety-critical installations. The knob handles offer an alternative operating option that can be chosen based on requirements.

Mounting and Installation
The switch is designed for mounting in control panels. Dimensions are 48 mm (width), 99 mm (depth), and 48 mm (height), enabling standard installation in DIN or other control panels. Mounting is done by securing into pre-cut openings, with electrical connections made at the respective terminals. Installation does not require special tools, but proper wiring according to applicable standards is required.

Operational Advantages
The switch provides high operational safety through the integrated EMERGENCY STOP function and locking feature. The IP65 protection rating ensures high robustness against environmental influences. The clear color coding of the rotary handle and locking collar facilitates operation and visual monitoring. Certification according to IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, and UL ensures compliance with international safety and quality standards. Conformity with the CE directive confirms suitability for use in the EU.

Certification and Standards
The switch complies with standards IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, and UL. Certification according to IEC/EN 60947-3 confirms its use as a switch disconnector. CE conformity is also provided, allowing use within the European Union. The IP65 protection rating is internationally recognized and guarantees a high level of protection against dust and water.

Accessories and Expansion Options
Various accessories are available for this switch to extend its functionality. These include the KNB-RT-T0 red knob handle, the KNB-T0 black knob handle, and the padlockable locks SVB-SW-T0 and SVB-T0. These accessories allow individual customization of operation and safety. The padlockable locks enable securing the switch against unauthorized operation, which is advantageous in safety-critical installations. The knob handles offer an alternative operating option that can be chosen based on requirements.

Safety and Reliability
The integrated EMERGENCY STOP function and locking function enhance safety during operation. The IP65 protection rating ensures high robustness against environmental influences. The clear color coding of the rotary handle and locking collar facilitates operation and visual monitoring. Certification according to IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, and UL ensures compliance with international safety and quality standards. Conformity with the CE directive confirms suitability for use in the EU.

Industrial Applications
The switch is frequently used in industry where safe and reliable power disconnection is required. It is particularly suitable for machine controls, manufacturing systems, and switchgear with high safety requirements. The IP65 protection rating also makes it suitable for use in damp or dusty environments, such as in manufacturing, packaging technology, or machine building.

Certification and Conformity
The switch is certified according to IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, and CE. Conformity with the CE directive confirms suitability for use in the EU. Certification according to IEC/EN 60947-3 confirms its use as a switch disconnector. The IP65 protection rating is internationally recognized and guarantees a high level of protection against dust and water.

Accessories and Expansion Options
Various accessories are available for this switch to extend its functionality. These include the KNB-RT-T0 red knob handle, the KNB-T0 black knob handle, and the padlockable locks SVB-SW-T0 and SVB-T0. These accessories allow individual customization of operation and safety. The padlockable locks enable securing the switch against unauthorized operation, which is advantageous in safety-critical installations. The knob handles offer an alternative operating option that can be chosen based on requirements.

Safety and Reliability
The integrated EMERGENCY STOP function and locking function enhance safety during operation. The IP65 protection rating ensures high robustness against environmental influences. The clear color coding of the rotary handle and locking collar facilitates operation and visual monitoring. Certification according to IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, and UL ensures compliance with international safety and quality standards. Conformity with the CE directive confirms suitability for use in the EU.

Industrial Applications
The switch is frequently used in industry where safe and reliable power disconnection is required. It is particularly suitable for machine controls, manufacturing systems, and switchgear with high safety requirements. The IP65 protection rating also makes it suitable for use in damp or dusty environments, such as in manufacturing, packaging technology, or machine building.

Features
TypeRotary switch
Number of poles3P
Connectivity technologyWired
Product colourBlack, Red, Yellow
International Protection (IP) codeIP65
Protection featuresDust resistant, Water resistant
CertificationIEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL IEC/EN 60947-3
Built-in displayNo
Operational conditions
Operating temperature (T-T)-25 - 50 °C
Power
AC input voltage690 V
Rated current32 A
Technical details
Compliance certificatesCE
Sustainability complianceYes
Weight & dimensions
Width48 mm
Depth99 mm
Height48 mm


Product data sheet
Datasheet for Eaton 110198, EAN: 4015081097555

Questions & answers

What is the delivery time of Eaton 110198 P1-32/E/SVB main switch for installation ?

The article Eaton 110198 P1-32/E/SVB main switch for installation is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 110198 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 110198 P1-32/E/SVB main switch for installation always at the best possible price. We can give you a discount of 2% on Eaton 110198 P1-32/E/SVB main switch for installation if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 110198 P1-32/E/SVB main switch for installation we can offer you a price of 73,31 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
