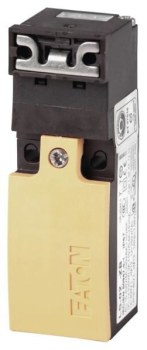

Eaton 106874 LS-S02-ZB safety position switch 2NC
|
161,25 EUR 161,29 EUR |
|||||||||||
|
( 191,89 EUR incl. VAT ) ≈ £134.97 | ≈ $177.21 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 2 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 957412 | ||||||||||
| Mfg Part No: | 106874 | ||||||||||
| UPC/EAN: | 4015081066377 | ||||||||||
| Weight: | 0.184 kg | ||||||||||
| Type: | LS-S02-ZB | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 106874:
Applications
The LS-S02-ZB is suitable for applications in the manufacturing industry, machine and plant engineering, and automation technology, where safe detection of end or intermediate positions of moving parts is required. The IP66 protection rating ensures high mechanical and electrical reliability, as the device is dust-tight and protected against water jets. This makes it suitable for outdoor use or in humid, dusty environments. The operating temperature range of -25 °C to +70 °C enables use in a wide range of climatic conditions, from cold production halls to warm industrial environments.
Functions and Equipment in Detail
The device features two normally open contacts (2 Ö), which are forced to open when actuated by an actuator. This ensures safe disconnection when the switch is activated, meeting safety function requirements. The description states that with the actuator installed, the normally closed contact is open and the normally open contact is closed, describing the function in the non-actuated state. Connection is made via screw terminals, enabling secure and easy electrical connection. The contacts are designed for transmitting control signals in safety circuits.
Technology Explained Simply
The forced opening function ensures that the contacts open even in the event of mechanical failure or damage to the switch, preventing hazardous situations. This is critical in safety-critical installations where switch failure is not acceptable. The IP66 protection rating means the device is completely dust-tight and protected against water jets from any direction, making it suitable for use in humid or dusty environments. The operating temperature range of -25 °C to +70 °C indicates the thermal resilience of the device, allowing use in a wide range of industrial environments.
Compatibility and Accessories
Various accessories are available for this safety position switch to support installation and operation. These include the LS-XB-ZB actuator single (item number 106872), used for mechanical actuation of the switch. Other compatible components include the M12B mounting plug (266136), the EMS20 membrane screw M20 (225271), the M12A M12 plug M20 (266135), the M12A5 connector socket 5p M12 A-coded (272202), and the LS-X20 screw closure transparent M20 (266134). These components enable flexible and secure integration into existing systems.
Mounting and Installation
Mounting is carried out in the usual manner for end switches, with screw terminals providing the electrical connection. Dimensions of 30 mm width and 96 mm height allow for compact placement in control units or on machines. The use of suitable actuators and closures (such as the LS-X20) supports secure and durable installation. The IP66 protection rating requires no additional protective measures during installation, as the device is already designed for use in harsh environments.
Operational Advantages
Using the Eaton LS-S02-ZB provides high reliability and safety in safety-critical applications. The forced opening function in accordance with IEC/EN 60947-5-1 ensures safe disconnection even in the event of mechanical failure. The robust construction with plastic housing and IP66 protection rating enables long-term operation in demanding environments. The clear colour coding (black/yellow) supports visual identification during operation. The use of screw terminals simplifies installation and maintenance.
Standards and Regulations
The device complies with the IEC/EN 60947 standard, which defines requirements for electrical switching devices and switching systems. Compliance with this standard ensures the safety and reliability of the device in industrial use. The specific safety function through forced opening is defined in accordance with IEC/EN 60947-5-1 and represents a key requirement for use in safety-relevant installations.
The item price shown refers to 2 pieces Eaton 106874
| Features | |
| Product colour | Black, Yellow |
| International Protection (IP) code | IP66 |
| Operational conditions | |
| Operating temperature (T-T) | -25 - 70 °C |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Width | 30 mm |
| Height | 96 mm |
Questions & answers
What is the delivery time of Eaton 106874 LS-S02-ZB safety position switch 2NC ?
The article Eaton 106874 LS-S02-ZB safety position switch 2NC is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 106874 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 106874 LS-S02-ZB safety position switch 2NC always at the best possible price. We can give you a discount of 2% on Eaton 106874 LS-S02-ZB safety position switch 2NC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 106874 LS-S02-ZB safety position switch 2NC we can offer you a price of 155,20 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Eaton 106874 LS-S02-ZB safety position switch 2NC is offered by us in a sales unit of 2 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
