Eaton 106798 LS-S11S position switch 1NO1NC plunger

Your rating:
Average rating
product review for Eaton 106798 LS-S11S position switch 1NO1NC plunger
( 4.7 / 5 ) 9 ratings

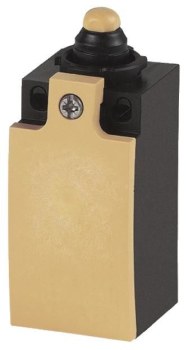

Eaton 106798
This image may differ from the desired article.
Eaton 106798Eaton 106798Eaton 106798
33,66 EUR 33,68 EUR
( 40,06 EUR incl. VAT )
≈ £28.17  |  ≈ $36.99
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Eaton 106798 LS-S11S position switch 1NO1NC plunger
Datasheet:file_download Download
Lieske Part No.:293316
Mfg Part No: 106798
UPC/EAN: 4015081065653
Weight:0.123 kg
Type:LS-S11S
Graduated prices net
From piecesPrice per pieces
1032,65 EUR
2531,64 EUR
5030,63 EUR
7529,62 EUR

Product information for Eaton 106798:

The Eaton LS-S11S is a mechanical position switch from the LS product series, designed for use in industrial applications where reliable and safe position detection is required. The device features a basic function as a position switch and additionally meets the requirements of a safety position switch through forced opening in accordance with IEC/EN 60947-5-1. It is designed as a base unit and is expandable, allowing flexible integration into existing systems. The design corresponds to EN 50047 Form B, enabling standardized mounting and wiring. The switch is equipped with a roller plunger intended for mechanical actuation.

Position switch with safety function through forced opening ensures that the contacts are safely opened even in the event of mechanical failure or damage to the switch. This is particularly important in installations where malfunction could lead to hazards. The device features one normally closed contact (1 NC) and one normally open contact (1 NO), making it suitable for various switching logic applications in control and safety circuits. Connection is made via screw terminals, ensuring a secure and durable electrical connection.

Housing material is plastic, designed for use in industrial environments. The product color is yellow, providing good visibility and identification during operation. The protection rating is IP66 and IP67, meaning the device is dust-tight and protected against water jets and temporary immersion. This makes the LS-S11S suitable for outdoor use or in damp, dusty production environments. The operating temperature ranges from -25 °C to +70 °C, enabling broad application in various climatic conditions.

Compatibility and accessories include various enhancements that extend functionality. These include adapter plates such as LS-XAP for mounting on LS-Titan devices, spring rods (LS-XS) for adjusting actuation, as well as screw caps (LS-X20) and mounting adapters (M22-LS) for integration into different mounting structures. M12 connectors and sockets (e.g. M12A, M12B) enable robust, waterproof connections, especially in mobile or harsh environments. The use of membrane screws (EMS20) or guide washers (FS-AT) supports precise and secure mounting.

Mounting and installation follow EN 50047 Form B, allowing the switch to be mounted on standard mounting surfaces. The screw terminals enable simple and secure wiring. The expandability of the device allows integration of additional functions such as extra contacts or special actuation plungers, depending on the application requirements. The IP66 IP66 protection rating ensures reliable operation even under harsh operating conditions.

Operational advantages include high mechanical robustness, secure forced opening function, and wide operating temperature range. The combination of plastic housing and screw terminals ensures easy handling and maintenance. Compatibility with various accessories allows flexible adaptation to specific requirements. Compliance with the IEC/EN 60947 standard ensures the device can be used in industrial control and safety systems without requiring additional approvals or inspections.

The LS-S11S is thus a reliable, safety-compliant position switch for industrial applications, suitable for both standard and safety-critical environments. The combination of mechanical stability, electrical reliability, and environmental resistance makes it a suitable component in automation technology and machine building industries.

Features
Housing materialPlastic
Product colourYellow
International Protection (IP) codeIP66, IP67
Operational conditions
Operating temperature (T-T)-25 - 70 °C


Product data sheet
Datasheet for Eaton 106798, EAN: 4015081065653

Questions & answers

What is the delivery time of Eaton 106798 LS-S11S position switch 1NO1NC plunger ?

The article Eaton 106798 LS-S11S position switch 1NO1NC plunger is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 106798 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 106798 LS-S11S position switch 1NO1NC plunger always at the best possible price. We can give you a discount of 2% on Eaton 106798 LS-S11S position switch 1NO1NC plunger if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Eaton 106798 LS-S11S position switch 1NO1NC plunger we can offer you a price of 32,65 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
