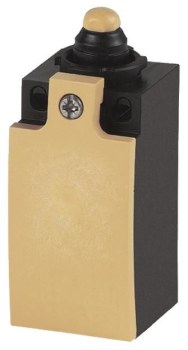

Eaton 106783 LS-S11 position switch 1NO1NC plunger
|
33,66 EUR 33,68 EUR |
|||||||||||
|
( 40,06 EUR incl. VAT ) ≈ £28.17 | ≈ $36.99 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 525619 | ||||||||||
| Mfg Part No: | 106783 | ||||||||||
| UPC/EAN: | 4015081065509 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | LS-S11 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 106783:
Position switch with safety function: The LS-S11 is used for mechanical detection of motion or position states in machines and systems. The integrated forced opening ensures that the contacts are safely opened even in the event of mechanical failure or damage to the switch, which is critical for safety-critical applications. The protection rating IP66 and IP66 guarantees a high level of protection against dust and water, including splashing water and short-term submersion, enabling use in outdoor environments or damp, dirty conditions.
Functions and equipment in detail: The device features a roller plunger as the standard actuation type, suitable for direct mechanical actuation by moving parts. The electrical contacts consist of one normally open contact (1 S) and one normally closed contact (1 Ö), enabling flexible integration into control and safety circuits. Connection is made via screw terminals, ensuring a secure and easy electrical connection. The operating temperature range is from -25 °C to +70 °C, allowing use in a wide range of environments, including climatically demanding industrial facilities.
Technology explained simply: Forced opening is a key feature ensuring that contacts cannot remain closed due to mechanical deformation or breakage. This is particularly important in safety-critical systems, where accidental remaining in the on-state could lead to hazards. The standard IEC/EN 60947-5-1 defines requirements for safety functions in switches, which the LS-S11 fulfills. The protection rating IP66 IP66 means the device is dust-tight and protected against water jets and short-term submersion, making it suitable for use in damp or dirty environments.
Compatibility and accessories: The LS-S11 is designed as a base unit and can be extended with various accessories to meet specific actuation requirements. These include, for example, different roller levers, rod levers, actuation rods, adapter plates, and adjustable roller levers, which can be selected according to application. M12 connectors and sockets are also available to optimize the electrical connection. Combining the device with these components allows individual adaptation to different mechanical and electrical requirements.
Mounting and installation: Mounting is typically done using the integrated mounting options, with the exact mounting method depending on the chosen actuation type and application environment. The screw terminals allow for easy and secure wiring. Installation is usually carried out in the control or safety circuit of a machine, with positioning chosen so that actuation occurs via the moving parts of the machine.
Advantages in operation: The LS-S11 offers high reliability due to forced opening and robust construction. The high protection rating IP66 IP66 ensures long service life even in demanding environments. Expandability with various actuation and connection components enables flexible adaptation to different applications. The use of screw terminals simplifies maintenance and replacement, as no special tools are required.
Contacts and protection rating are key features for the functionality and safety of the device. Forced opening in accordance with IEC/EN 60947-5-1 ensures that the device functions safely even in the event of a fault. The yellow housing color serves visual identification and is common in many industrial environments. The plastic housing construction ensures sufficient mechanical stability with low weight.
| Features | |
| Product colour | Yellow |
Questions & answers
What is the delivery time of Eaton 106783 LS-S11 position switch 1NO1NC plunger ?
The article Eaton 106783 LS-S11 position switch 1NO1NC plunger is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 106783 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 106783 LS-S11 position switch 1NO1NC plunger always at the best possible price. We can give you a discount of 2% on Eaton 106783 LS-S11 position switch 1NO1NC plunger if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Eaton 106783 LS-S11 position switch 1NO1NC plunger we can offer you a price of 32,65 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
