Eaton 087792 MCS4-SOND910-G pressure switch 2-pole

Your rating:
Average rating
product review for Eaton 087792 MCS4-SOND910-G pressure switch 2-pole
( 4.5 / 5 ) 59 ratings

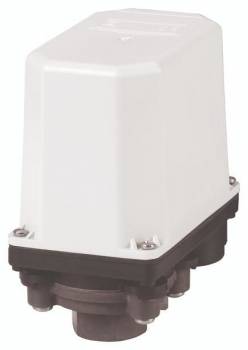

Eaton 087792
This image may differ from the desired article.
Eaton 087792Eaton 087792Eaton 087792Eaton 087792
185,29 EUR
( 220,50 EUR incl. VAT )
≈ £155.09  |  ≈ $203.63
plus delivery charges: 55,00 €
in stockinfo_outline
1x Eaton 087792 MCS4-SOND910-G pressure switch 2-pole
Lieske Part No.:517926
Mfg Part No: 087792
UPC/EAN: 4015080877929
Weight:0.409 kg
Type:MCS4-SOND910-G
Graduated prices net
From piecesPrice per pieces
5178,34 EUR
10171,39 EUR
15164,44 EUR
20157,50 EUR

Product information for Eaton 087792:

The item is a pressure switch from manufacturer Eaton, type MCS4-SOND910-G, with manufacturer number 087792. It is used for monitoring pressure in liquid and gaseous media, for example in compressed air systems, and is employed to control auxiliary circuits. The switch allows separate adjustment of cut-off and cut-in pressure, ensuring precise and application-specific control of the operating state. Compliance with standard IEC EN 60947-5-1 ensures electrical safety and reliability of the device in industrial applications.

Pressure monitoring is the central application area of this device. It monitors pressure in systems transporting liquid or gaseous media and reacts when predefined pressure values are reached or exceeded. This enables automatic control of pumps, valves, or other components to maintain safe and efficient operation. Applications include pneumatic systems, compressed air supply systems, or hydraulic systems, where continuous pressure monitoring is required.

Functions and equipment in detail include the ability to set cut-off and cut-in pressure independently. This provides flexibility in adapting to different operating conditions. The switching function operates via an auxiliary circuit, allowing the pressure switch to be integrated into existing electrical control systems. The contacts are gold-plated, ensuring high contact reliability and corrosion resistance, especially in humid or aggressive environments.

Technology explained simply shows that the pressure switch operates based on mechanical or pneumatic sensors that measure pressure in the medium and close or open an electrical contact when the set limit values are reached. Standard IEC EN 60947-5-1 defines requirements for electrical safety and operating conditions, ensuring the device can be safely used in industrial environments. The protection rating IP65_x ensures the device is dust-tight and protected against water jets, making it suitable for outdoor use or in humid indoor environments.

Compatibility and accessories refers to use in systems monitoring liquid or gaseous media. The indication 2p refers to two poles, indicating a two-pole switching function. The maximum pressure limit is 7 bar, defining the operational limit for the device.

Mounting and installation are carried out in the usual manner for pressure switches in industrial installations. The device is designed for use in systems requiring pressure monitoring and is connected to the corresponding pressure line. The electrical connection is made to the control unit or auxiliary circuit. The protection rating IP65_x requires no special protective measures during installation, as the device is already protected against dust and water jets.

Advantages in operation lie in precise pressure control through separate adjustment of cut-off and cut-in pressure. The gold-plated contacts ensure high service life and reliability, especially in humid or corrosive environments. Compliance with standard IEC EN 60947-5-1 and protection rating IP65_x ensure safe and robust operation in industrial applications. The device is therefore suitable for use in demanding environments where reliable pressure monitoring is required.

General
NormIEC EN 60947-5-1
Degree of protectionIP65_x
Application rangePressure monitoring of liquid and gaseous media, e.g. compressed air
FunctionControlling auxiliary circuits
AdjustabilitySwitching on and off pressure separately adjustable
Maximum pressure7 bar
Number of poles2 p
Contact platingGilt


Questions & answers

What is the delivery time of Eaton 087792 MCS4-SOND910-G pressure switch 2-pole ?

The article Eaton 087792 MCS4-SOND910-G pressure switch 2-pole is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 087792 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 087792 MCS4-SOND910-G pressure switch 2-pole always at the best possible price. We can give you a discount of 2% on Eaton 087792 MCS4-SOND910-G pressure switch 2-pole if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 087792 MCS4-SOND910-G pressure switch 2-pole we can offer you a price of 178,34 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
