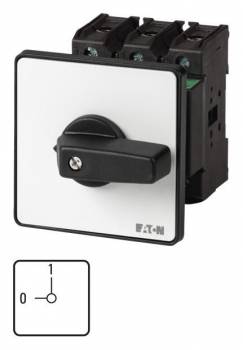

Eaton 079220 P3-63/E/HI11 ON-OFF switch for mounting

Your rating:
Average rating
product review for Eaton 079220 P3-63/E/HI11 ON-OFF switch for mounting
( 4.3 / 5 ) 6 ratings
Eaton 079220
This image may differ from the desired article.
Eaton 079220Eaton 079220
122,61 EUR 122,81 EUR
( 145,91 EUR incl. VAT )
≈ £102.62  |  ≈ $134.75
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Eaton 079220 P3-63/E/HI11 ON-OFF switch for mounting
Lieske Part No.:485802
Mfg Part No: 079220
UPC/EAN: 4015080792208
Weight:0.419 kg
Type:P3-63/E/HI11
Graduated prices net
From piecesPrice per pieces
5118,01 EUR
10113,41 EUR
15108,82 EUR
20104,22 EUR

Product information for Eaton 079220:

The P3-63/E/HI11 ON-OFF switch from Eaton is an industrial switch disconnector in flush-mounted design, designed for use in electrical installations for the safe disconnection of loads. It features a black lever and a front plate, with the switching function operated via a mechanical lever. The switch is 3-pole and serves to disconnect electrical conductors during operation, with a rated continuous current of 63 A. The protection rating of the front side is IP65, indicating a high level of protection against dust and splashing water, enabling use in industrial environments with demanding environmental conditions.

Applications

The switch is intended for use in industrial installations, machine controls, and electrical distributions where safe and manual disconnection of power supply is required. It is particularly suitable for applications requiring clear visual disconnection of conductors and a mechanically distinct switching state (ON/OFF). Compliance with standards IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, and UL confirms adherence to international safety and quality standards, enabling use in various industries and countries.

Functions and Equipment in Detail

The switch is designed as a switch disconnector according to IEC/EN 60947-3, meaning it is suitable for disconnecting loads during operation, but does not provide complete isolation as a safety disconnector would. The rated operational power is 30 kW at AC-23A, 50–60 Hz, and 400 V. The switching function is operated via a lever that locks in ON and OFF positions. The front plates are standardly connected to the switch, with the labels “ON” and “OFF” visually indicating the respective position. Installation is in flush-mounted form, with mounting points provided on the front side of the switch.

Technology Explained Simply

The switch operates using a mechanical lever mechanism that locks the contacts in ON and OFF positions. The 3-pole design enables disconnection of three conductors, typically the three phase conductors in a three-phase system. The IP65 protection rating of the front side ensures the switch is protected against dust and splashing water, making it suitable for use in damp or dusty environments. The rated continuous current of 63 A defines the maximum current load the switch can withstand continuously without causing thermal overload. The rated operational power of 30 kW at 400 V and 50–60 Hz defines the maximum electrical power the switch can safely switch.

Compatibility and Accessories

Various accessories are available to extend functionality and adapt to specific requirements. These include, for example, the terminal cover H-P3, which provides additional safety during installation, or the shaft extension ZAV-P3, which improves operability in limited space. The maintenance key KNK-P3 allows secure and controlled operation, especially in safety-critical installations. Additionally, front plates such as FS(*)-P3 or ZFS61/62-P3 are available, enabling labelling in German or English. Locking components such as UV-P3 and ZVV-P3, as well as the padlock shackle SVB-T0, offer additional security features to prevent unauthorized operation. The neutral conductor switching options N-P3Z and N-P3E can be customer-mounted to extend the switching function to the neutral conductor.

Mounting and Installation

Installation is in flush-mounted form, with the switch installed into a suitable cutout in an enclosure or distribution unit. Mounting is done via the designated mounting points on the front side. Electrical connections are made via terminals designed for connection cross-sections according to the rating. Installation does not require special tools, but compliance with electrical safety regulations and correct mounting is required to ensure safe operation.

Advantages in Operation

The switch provides clear visual indication of the switching state, simplifying operation and maintenance. The high IP65 protection rating of the front side ensures high reliability in demanding environments. Compliance with international standards such as IEC/EN 60947 and UL ensures use in various markets. The ability to combine accessories such as locking mechanisms or front plates allows individual adaptation to specific requirements. The rated values of 63 A and 30 kW provide sufficient capacity for many industrial applications.

General
Degree of protectionFront IP65
Construction typeBuilt-in
Rated continuous current63 A
Rated operating power30 kW
Operating voltage400 V
Frequency50 - 60 Hz
Number of poles3
Switching functionON-OFF
ToggleBlack
StandardsIEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL
Switch typeDisconnect switch
Type identifierP3
AssortmentON-OFF switch


Questions & answers

What is the delivery time of Eaton 079220 P3-63/E/HI11 ON-OFF switch for mounting ?

The article Eaton 079220 P3-63/E/HI11 ON-OFF switch for mounting is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 079220 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 079220 P3-63/E/HI11 ON-OFF switch for mounting always at the best possible price. We can give you a discount of 2% on Eaton 079220 P3-63/E/HI11 ON-OFF switch for mounting if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 079220 P3-63/E/HI11 ON-OFF switch for mounting we can offer you a price of 118,01 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
