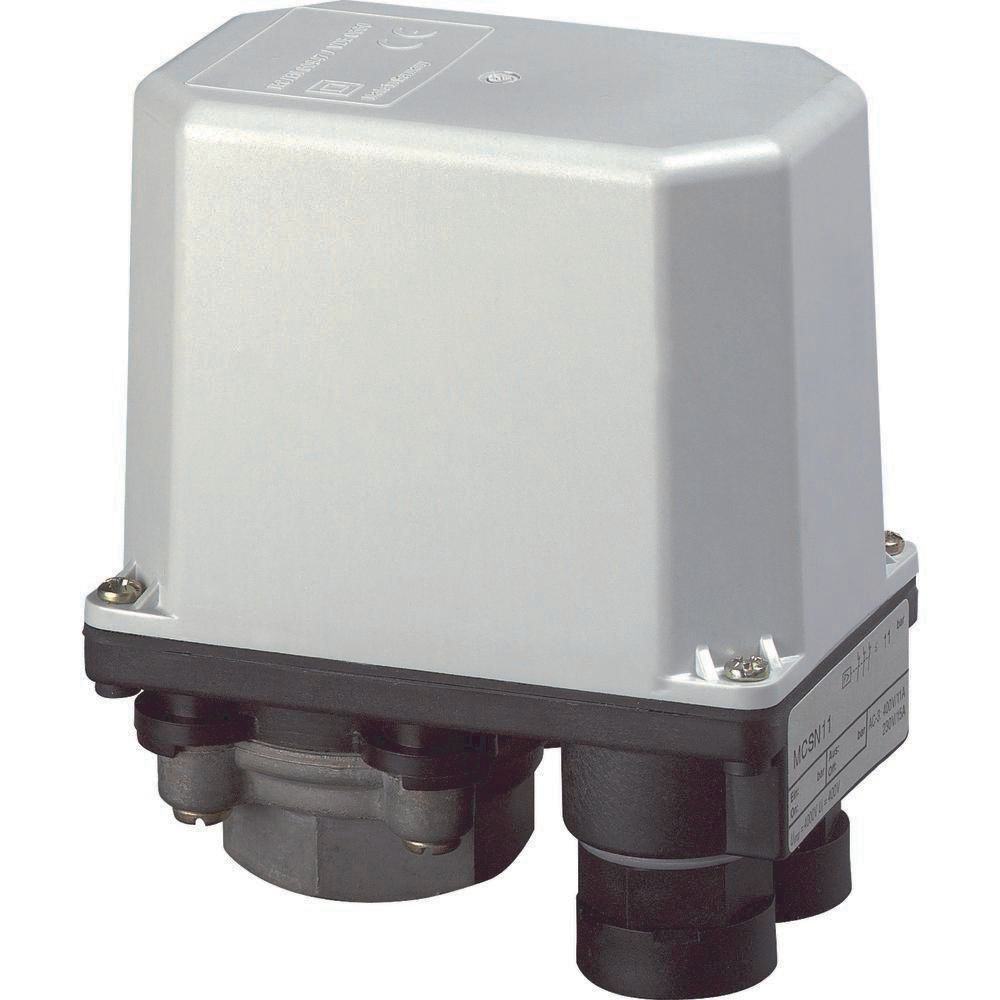

Eaton 029203 MCSN11 pressure monitor 3-pole

Your rating:
Average rating
product review for Eaton 029203 MCSN11 pressure monitor 3-pole
( 4.5 / 5 ) 57 ratings
Eaton 029203
This image may differ from the desired article.
Eaton 029203Eaton 029203
163,13 EUR 163,25 EUR
( 194,12 EUR incl. VAT )
≈ £136.54  |  ≈ $179.28
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 5 pieces
1x Eaton 029203 MCSN11 pressure monitor 3-pole
Lieske Part No.:123147
Mfg Part No: 029203
UPC/EAN: 4015080292036
Weight:0.493 kg
Type:MCSN11
Graduated prices net
From piecesPrice per pieces
5158,24 EUR
10153,34 EUR
15148,45 EUR
20143,55 EUR

Product information for Eaton 029203:

The pressure switch MCSN11 from Eaton (manufacturer part number 029203) is an industrial switch for pressure monitoring of liquid and gaseous media, for example compressed air. It is used to control loads by triggering electrical switching operations depending on the pressure condition. The switch enables separate adjustment of cut-off and cut-in pressure, ensuring precise and application-specific control. It is designed for use in industrial plants where reliable monitoring of pressure conditions is required.

Applications

The MCSN11 is used in systems where the pressure of gases or liquids must be monitored and an electrical load switched when certain threshold values are reached. Typical applications include compressed air supply systems, hydraulic systems, or process plants where a specific pressure range must be maintained. The pressure monitoring is continuous, with the switch triggering a switching operation when the cut-off pressure is undershot or the cut-in pressure is overshot.

Functions and Equipment in Detail

The switch features separate adjustment of cut-off and cut-in pressure, allowing flexible adaptation to different operating conditions. The switching function is performed via a mechanical cam, which switches an electrical load when the set pressure value is reached. The switching function is designed for operation in industrial environments, with switching capacity and contact load capacity meeting the requirements of standard IEC EN 60947-5-1. The switching function is designed for use in 3-pole circuits.

Technology Explained Simply

The pressure switch operates on the principle of a mechanical pressure switch. A pressure sensor reacts to pressure changes in the medium and moves a cam, which via a switching mechanism opens or closes the electrical contacts. The protection rating IP65_x ensures high protection against dust and splashing water, enabling use in outdoor or damp environments. The designation IP65_x means the switch is dust-tight and protected against splashing water from all directions, with the exact protection rating (e.g. IP65, IP65) varying in individual cases. The standard IEC EN 60947-5-1 sets the requirements for switching devices used in industrial plants.

Compatibility and Accessories

For mounting and securing the pressure switch MCSN11, suitable wall mounting brackets are available. These include the W-MCS wall mounting bracket (part number 050665) and the +W-MCS wall mounting bracket (part number 1631). These accessories enable secure and stable mounting on walls or other surfaces. The exact mounting method depends on the specific application and the mounting solution used.

Mounting and Installation

The installation of the pressure switch is typically carried out on the pressure line, with the mounting position chosen so that the pressure sensor is directly exposed to the medium being monitored. Mounting is done using the optional wall mounting brackets. Electrical connections are made to the designated terminals, with the switching function configured according to the application. Adjustment of the cut-off and cut-in pressure values is done via the mechanical adjustment options on the device.

Advantages in Operation

Using the MCSN11 provides reliable and low-maintenance pressure monitoring. The separate adjustment of cut-off and cut-in pressure enables precise control, thereby increasing operational safety. The protection rating IP65_x ensures high environmental resistance, enabling use in demanding industrial environments. Compliance with standard IEC EN 60947-5-1 ensures that required safety and functional requirements are met.

General
ManufacturerEaton
NormIEC EN 60947-5-1
Degree of protectionIP65_x
FunctionPressure monitoring
Medialiquid and gaseous media
Application exampleCompressed air
Switching functionswitching loads
AdjustabilitySwitching on and off pressure separately adjustable
Number of poles3 p


Questions & answers

What is the delivery time of Eaton 029203 MCSN11 pressure monitor 3-pole ?

The article Eaton 029203 MCSN11 pressure monitor 3-pole is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 029203 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 029203 MCSN11 pressure monitor 3-pole always at the best possible price. We can give you a discount of 2% on Eaton 029203 MCSN11 pressure monitor 3-pole if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 029203 MCSN11 pressure monitor 3-pole we can offer you a price of 158,24 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
