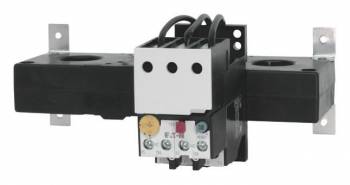

Eaton 009737 ZW7-240 converter relay 160A–240A 1NO1NC
|
861,72 EUR |
|||||||||||
|
incl. 0,43 EUR copper surcharge ( 1.025,45 EUR incl. VAT ) ≈ £721.26 | ≈ $947.03 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 666650 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 009737 | ||||||||||
| UPC/EAN: | 4015080097372 | ||||||||||
| Weight: | 0.653 kg | ||||||||||
| Type: | ZW7-240 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 009737:
Applications
The ZW7-240 is used in industrial plants where electric motors must be protected against thermal overload. Typical applications include pumps, fans, conveyors, or other drives in manufacturing, process engineering, or power supply industries. The integrated protection function for heavy start-up enables safe commissioning of motors operated under high starting resistance. The free release ensures that the relay does not automatically re-engage after a tripping event, but requires manual reset, thereby increasing safety.
Functions and Equipment in Detail
The relay features a Test/Off button that allows manual testing of the device’s functionality without operating the motor. The Reset button enables resetting the relay to operating condition, with the option to choose between manual and automatic operation. This provides flexibility in control and maintenance. The auxiliary contacts consist of one close contact (1 S) and one open contact (1 Oe), which can be used for additional control or signaling tasks, for example, to indicate a tripping event or to control other components in the enclosure.
Technology Explained Simply
The ZW7-240 operates with a current transformer that measures the load current of the motor and transmits this value to the relay. When the set threshold value is exceeded, the motor is disconnected to avoid thermal overload. The protection class IP00 means that the device is not protected against dust or water and therefore must only be operated in closed, dry enclosures. Standards IEC/EN 60947, VDE 0660, UL, and CSA ensure compliance with international safety and performance standards, enabling use in various markets.
Compatibility and Accessories
Various button plates and release buttons are available for the ZW7-240, improving operation and signaling within the enclosure. These include, for example, a flat red button plate labeled “STOP” or a blue release button labeled “Reset”. These components can be mounted additionally to enhance operability and meet operational safety requirements.
Mounting and Installation
The relay is designed for individual mounting, meaning it is installed separately in an enclosure without being integrated into a common module. Mounting is typically done on a plug-in board or directly in the enclosure. The connection terminals are designed for connection to current transformers and auxiliary contacts. Installation requires compliance with electrical standards and correct setting of the threshold value according to the rated current of the motor to be protected.
Advantages in Operation
The ZW7-240 provides reliable overload protection for motors in the rated current range of 160 to 240 A. The integrated free release and the option for manual reset increase safety during operation. The auxiliary contacts allow expansion of control functions, and compliance with international standards ensures suitability for various applications. The clear operation via Test and Reset buttons simplifies maintenance and testing of the device.
| General | |
| Assortment | current transformer overload relay ZW7 |
| Rated current range | 160-240 A |
| Auxiliary contacts Normally open (NO) | 1 |
| Auxiliary contacts normally closed (NC) | 1 |
| Degree of protection | IP00 |
| Standards | IEC/EN 60947, VDE 0660, UL, CSA |
| Mounting type | Separate positioning |
| Functions | test/off button, reset button manual/automatic, free release, protection against heavy start-up |
Questions & answers
What is the delivery time of Eaton 009737 ZW7-240 converter relay 160A–240A 1NO1NC ?
The article Eaton 009737 ZW7-240 converter relay 160A–240A 1NO1NC is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 009737 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 009737 ZW7-240 converter relay 160A–240A 1NO1NC always at the best possible price. We can give you a discount of 2% on Eaton 009737 ZW7-240 converter relay 160A–240A 1NO1NC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Eaton 009737 ZW7-240 converter relay 160A–240A 1NO1NC we can offer you a price of 829,42 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
