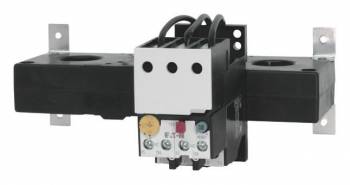

Eaton 002618 ZW7-90 converter relay 60A–90A 1NO1NC
|
642,73 EUR |
|||||||||||
|
incl. 0,43 EUR copper surcharge ( 764,85 EUR incl. VAT ) ≈ £537.97 | ≈ $706.36 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 605227 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 002618 | ||||||||||
| UPC/EAN: | 4015080026181 | ||||||||||
| Weight: | 0.916 kg | ||||||||||
| Type: | ZW7-90 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 002618:
Applications
The ZW7-90 is suitable for industrial applications such as manufacturing, processing, or machine building industries, where electric motors need to be monitored and protected. It is typically installed in control panels or distribution boxes to ensure safe and reliable motor operation. The application is in systems requiring electrical monitoring of motor load to prevent failures due to overload or thermal stress.
Functions and Equipment in Detail
The relay features an integrated current transformer that measures motor current and triggers a shutdown when preset thresholds are exceeded. The Test/Off button allows manual testing of the function, while the Reset button switches operation between manual and automatic reset. The free release ensures that the relay does not automatically restart after a tripping event but only after manual confirmation. The heavy-start protection prevents false tripping during high starting currents, which is especially relevant for motors with high start currents.
Technology Explained Simply
The ZW7-90 operates with a current transformer that measures the current flowing in the motor circuit. When a preset threshold value is reached, a protection signal is triggered, which disconnects the motor via auxiliary contacts. The auxiliary contacts consist of one normally open contact (1 S) and one normally closed contact (1 Ö), which can be used in control panels for signal transmission or to control other components. The protection class IP00 means that the device offers no protection against dust or water and must therefore only be installed in enclosed, dry control cabinets or distribution boxes. Standards IEC/EN 60947, VDE 0660, UL, and CSA ensure compliance with international safety and performance standards.
Compatibility and Accessories
The relay can be combined with various accessories to improve operation and visibility. These include, for example, unlocking buttons such as M22-DZ-X (without label) or M22-DZ-B (blue), as well as button plates such as M22-XD-R (red, blank) or M22-XD-R-GB0 (red, labeled with STOP). These elements can be used in control panels for better operation and visual identification of functions.
Mounting and Installation
The relay is designed for individual mounting and is installed in control cabinets or distribution boxes. Installation must take place in a protected, dry environment, as the protection class IP00 provides no resistance to external influences such as moisture or dust. Electrical connections are made via the designated terminal clamps, with the current transformer side connected to the motor circuit. The auxiliary contacts are intended for integration into control and signaling systems.
Advantages in Operation
The ZW7-90 provides reliable monitoring and protection for electric motors in the rated current range of 60 to 90 amperes. The integrated free release and the option for manual reset increase safety and prevent unintended restarts. The heavy-start protection avoids false tripping during high starting currents, enhancing operational safety. Compliance with international standards such as IEC/EN 60947 and UL ensures compatibility with various system standards.
| General | |
| Rated current range | 60-90 A |
| Auxiliary contacts Normally open (NO) | 1 S |
| Auxiliary contacts normally closed (NC) | 1 O |
| Mounting type | Separate positioning |
| Degree of protection | IP00 |
| Standards | IEC/EN 60947, VDE 0660, UL, CSA |
| Functions | test/off button, reset button manual/automatic, free release, protection against heavy start-up |
Questions & answers
What is the delivery time of Eaton 002618 ZW7-90 converter relay 60A–90A 1NO1NC ?
The article Eaton 002618 ZW7-90 converter relay 60A–90A 1NO1NC is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 002618 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 002618 ZW7-90 converter relay 60A–90A 1NO1NC always at the best possible price. We can give you a discount of 2% on Eaton 002618 ZW7-90 converter relay 60A–90A 1NO1NC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Eaton 002618 ZW7-90 converter relay 60A–90A 1NO1NC we can offer you a price of 618,64 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
