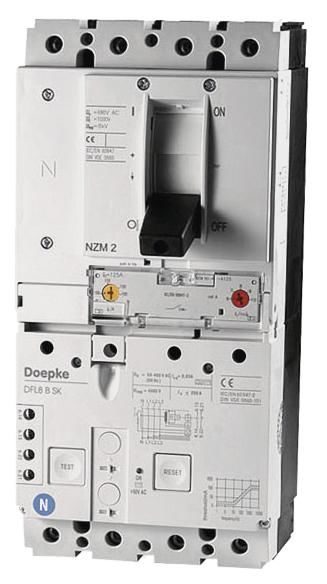

Doepke 09204784 DOEP DFL8 200-4/0 ,03-B SK-Fi security tools. DF, 0.03 A 4-pin

Circuit breakers with residual current protection (CBR) switch high currents, protect equipment, cables and lines from overcurrent and people from electric shock. DFL 8 are compact devices with an integrated auxiliary switch and connection terminals for large cable cross-sections. Type B switches are sensitive to all currents at frequencies from 0 Hz (smooth DC residual currents) to 150 kHz. They are resistant to increased surge currents and storms. Switches with the SK characteristic curve stand for residual current protection and high system availability. They are characterized by a lower response sensitivity at higher frequencies. Undesired tripping due to leakage currents is thus largely avoided. Switches of this variant have a fixed rated residual current of 30 mA for personal protection. They therefore ensure fault and fire protection as well as additional protection (personal protection, protection against direct contact). Standard devices are designed for monitoring circuits with a rated voltage of 230 V, 400 V and a rated frequency of 50 Hz. Properties: fixed rated residual current of 0.03 A, rated currents from 100 A to 250 A, rated voltage 230 V, 400 V AC, four-pole, residual current detection for smooth direct current as well as alternating and pulsating direct currents, high tolerance to fluctuations in the auxiliary voltage when detecting residual currents type B, mains and auxiliary voltage independent tripping for residual currents of type A and in the event of overcurrent, high short-circuit switching capacity, connection terminals up to 185 mm2, high surge current strength, i.e. low tendency to false tripping due to transient residual currents, thresholds for instantaneous and delayed overcurrent tripping adjustable, auxiliary switch integrated, type of installation: attachment to mounting plate, installation position as desired, feed-in from below, areas of application: power supplies in purpose-built buildings and industrial plants with TN-S, TT and TN-CS networks with high short-circuit power, in IT networks the Residual current tripping of the CBR can be provided for shutdown in the event of a second earth fault. Due to its universal current sensitive residual current tripping, this universal current sensitive CBR is particularly suitable for protecting systems with electronic equipment that are not galvanically isolated from the mains on the input side. Use for residual current protection in TN-C networks is excluded.
Type: DFL8 200-4/0,03-B SK
