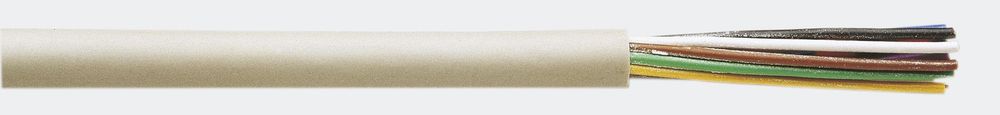

LIYY 7x0, 34 mm ², data and control line
|
108,58 EUR |
|
|
incl. 27,36 EUR copper surcharge ( 129,21 EUR incl. VAT ) ≈ £92.29 | ≈ $121.94 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Sales unit: 100 meters | |
| Lieske Part No.: | 274020 |
|---|---|
| Mfg Part No: | 1101108 |
| Weight: | 0.123 kg |
| Type: | LIYY 7X0,34 |
Product information for 1101108:
Application:
This data line is used as a supply and connecting cable for signal, measuring, control and intercom purposes for call, and intercom systems, clock installations, electronic weighing equipment, computer systems, etc. It is suitable for fixed and flexible use with free movement without tensile stress or forced movements suitable in dry, damp and wet rooms. Due to the small outer diameter wiring in a confined space with small bending radii are possible.
Building:
Conductor: Bare copper, fine wire
Insulation: PVC
Core identification: color code DIN 47100
twisted in layers
Jacket: PVC
Color: gray
Specifications:
Rated voltage: 300/300 V
Test voltage: 1200 V
Temperature range: + 5 ° C to + 70 ° C (dynamic)
-30 ° C to +70 ° C (non-moving)
Bending radius: 15 x cable diameter (flexible use)
Flame resistance according to VDE 0472 T. 804 class B (IEC 332-1 =)
Cross section. 7 x 0.34
Outer diameter approx: 5.5
Cu index (kg / m%): 2.28
approx Weight (kg / m%): 6.1 Type: LIYY 7X0, 34
Item: 50 MTR
The item price shown refers to 100 meters 1101108
Questions & answers
What is the delivery time of LIYY 7x0, 34 mm ², data and control line?
The article LIYY 7x0, 34 mm ², data and control line is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of 1101108 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LIYY 7x0, 34 mm ², data and control line always at the best possible price. We can give you a discount of 2% on LIYY 7x0, 34 mm ², data and control line if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
LIYY 7x0, 34 mm ², data and control line is offered by us in a sales unit of 100 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
