DIGITUS DN-9005-N Underfloor outlet Cat6 2xRJ45 shielded white content_copy

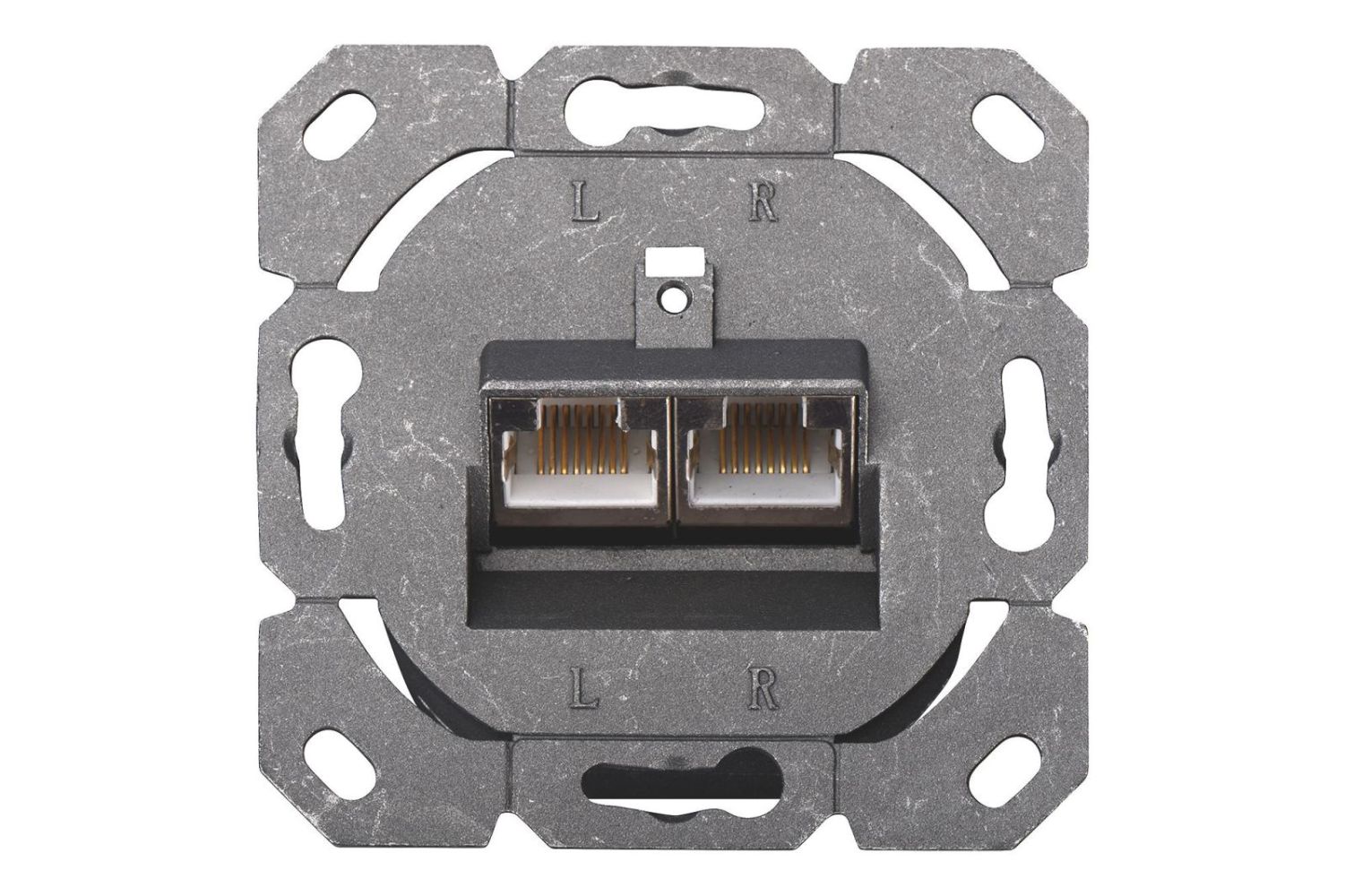

The DIGITUS DN-9005-N is a shielded CAT 6 connection outlet for flush mounting, designed for installation in baseboard ducts or similar raceways. The device features two RJ45 sockets in the 8P8C standard and is designed for use in networks with up to 250 MHz bandwidth and 1GBase-T data transfer rates. The connection outlet is fully design-compatible and enables neat, structured installation via horizontal cable entry. The sockets are rotated 40°, which facilitates the insertion of patch cables and makes installation more efficient during operation.

Applications
The connection outlet is intended for use in structured cabling systems in offices, apartments, or other indoor environments. It is suitable for connecting end devices such as computers, printers, or network switches via Ethernet cables. The shielded design protects against electromagnetic interference and ensures stable data transmission, especially in environments with high electromagnetic influence. The pure white color (RAL 9010) allows for discreet integration into standard installations.

Functions and Equipment in Detail
The connection outlet includes an integrated strain relief for installation cables, which minimizes mechanical stress on the cabling and increases the lifespan of the installation. The cable connection is made via LSA strips, color-coded according to EIA/TIA 568 B, to ensure unambiguous and error-free cabling. The sockets and LSA strips are fully shielded, with the housing made of fully enclosing metal die-cast to ensure effective shielding. The central plate with integrated dust protection flaps protects the sockets from contamination when no cables are connected.

Technology Explained Simply
The CAT 6 standard guarantees a maximum data transfer rate of 1 Gbit/s over a distance of up to 100 meters. The bandwidth of up to 250 MHz enables high signal quality and minimizes interference. The shielded design (STP) protects data transmission from electromagnetic interference originating from other electrical devices or cables. The horizontal cable entry and the 40° socket angle improve handling and reduce the risk of cable breakage or incorrect connections. Certification according to EIA/TIA 568, ISO/IEC 11801, and EN 50173 ensures compliance with international standards for structured cabling systems.

Compatibility and Accessories
The connection outlet is designed for use with STP cables and is compatible with standard network devices featuring RJ45 connectors. Installation is carried out in standard cover frames with dimensions 80x80 mm, according to DIN 49075, where the central plate measures 50x50 mm. The connection outlet is available as a flush-mounted version; the surface-mounted version is also available in the DIGITUS range. Cabling is performed via LSA strips, which enable secure and standardized installation.

Installation and Mounting
Mounting is performed in a baseboard duct or similar raceway. The horizontal cable entry and integrated strain relief facilitate installation and ensure a mechanically stable connection. The connection outlet is designed for wall mounting and is installed into the designated frame. The sockets are pre-colored according to the correct EIA/TIA 568 B color code to prevent cabling errors.

Operational Advantages
The fully shielded construction ensures reliable data transmission and minimizes interference. The integrated strain relief protects cables from mechanical stress, increasing the lifespan of the installation. The 40° socket angle facilitates the insertion of patch cables, especially in confined spaces. The pure white color and standardized dimensions allow for discreet integration into existing installations. Certification according to international standards ensures compatibility and quality of the connection outlet.

General
Degree of protection	shielded
Category	CAT 6
Number of sockets	2
Socket type	RJ45, 8P8C
Cable connection	LSA bars
Colour scheme	Pure white, RAL 9010
Mounting method	Flush mounted (plaster)
Socket angle	40°
Bandwidth	250 MHz
Transmission rate	1GBase-T
Tension relief	Integrated
Certification	EIA/TIA 568, ISO/IEC 11801, EN 50173
Cable type	STP
Cable entry	Horizontal
Cover frame	80x80 mm
Centre plate	50x50 mm
Dust protection cap	Integrated flaps

---
