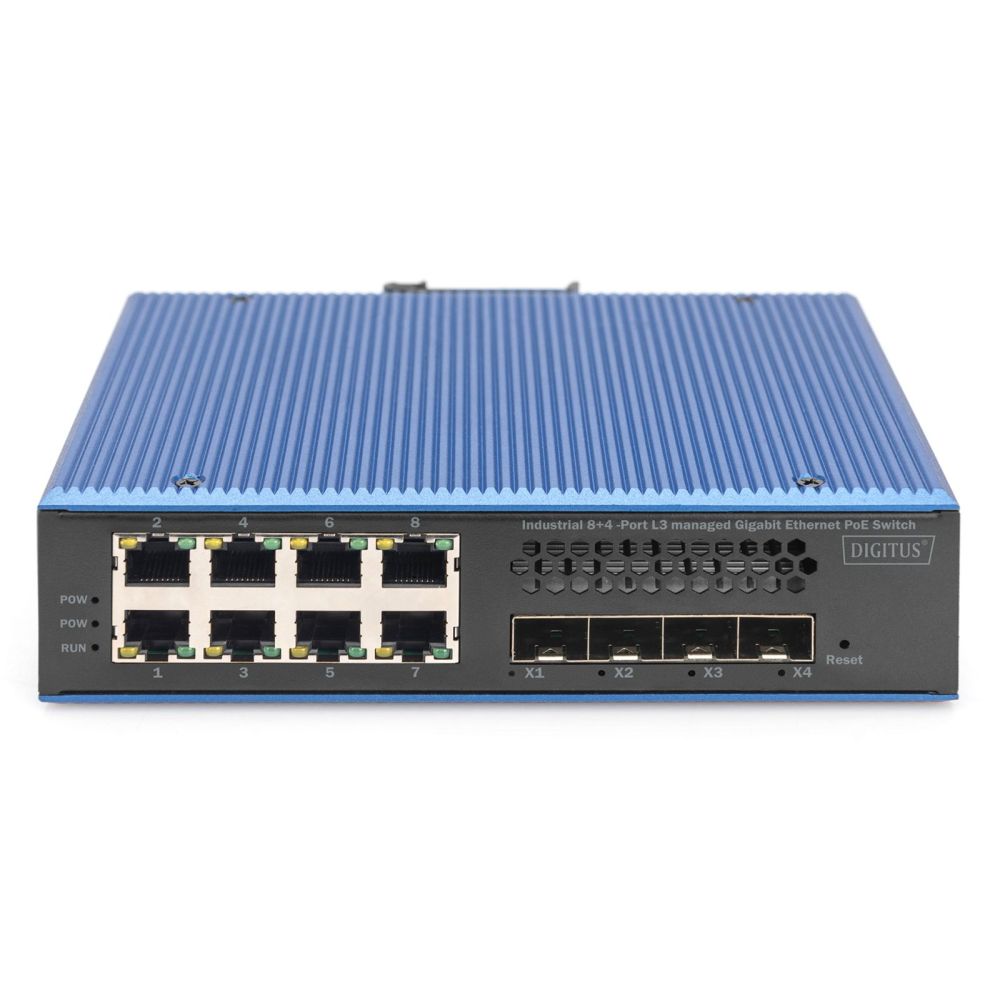

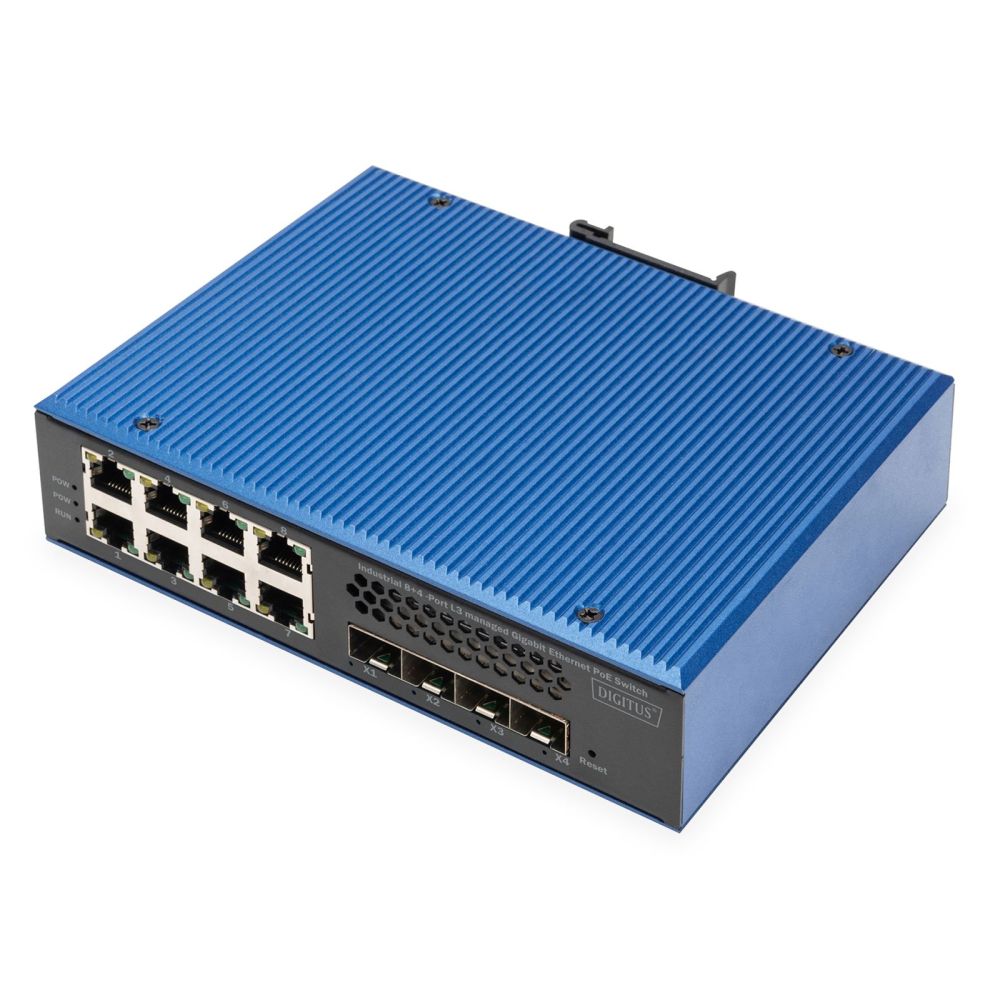

DIGITUS Switch 8 + 4 10G Uplink Port L3 managed Gigabit PoE content_copy

The DN-651161 is a high-performance L3 8 port RJ45 + 4 port SFP+ (10G) uplink industrial switch that is specifically designed to meet the requirements of demanding network environments. With an impressive data transfer rate of 1.2 terabits per second (1.2 Tbps), it enables lightning-fast and reliable communication between your devices. Whether you work in the manufacturing industry, industrial IoT or critical infrastructure, the DN-651161 is the perfect solution for stable and efficient network connectivity.Robust and reliable:The DN-651161 is housed in a durable metal housing and meets protection class IP40, which protects it against the ingress of dust and foreign objects. It also has 4 kV lightning and surge protection, which protects your network from unexpected electrical interference and ensures reliable performance.Flexible and space-saving:With its DIN rail mounting (top hat rail), the DN-651161 can be easily integrated into your control cabinet in a space-saving manner. The redundant power supply with reverse polarity protection guarantees uninterrupted operation, even in the event of a power failure or faulty cabling.Extensive network functions:The DN-651161 offers a variety of functions to optimally configure and manage your network. From basic Layer 2 management functions such as MAC table management, VLAN configuration and link aggregation to advanced Layer 3 settings such as routing protocols (RIP, OSPF, OSPFv3), multicast management (IGMP snooping, MLD snooping) and virtual routing redundancy protocol (VRRP) - this switch covers all important aspects of your network. Efficiency and quality assurance: The DN-651161 supports Quality of Service (QoS), which enables traffic prioritization and ensures optimal use of bandwidth. Supporting COS/DSC

Highlights

• Data Control: Support 802.3X full-duplex flow control, support network storm suppression
• Redundant Network: Support STP/RSTP/MSTP, support ERPS (self-healing time < ms)
• Supports PoE according to standard IEEE802.3af/at (up to 30W)
• Multicast Management: Support IGMP Snooping V1/V2/V3
• Redundancy Backup: Supports virtual route redundancy protocol VRRP
• VLAN: Support IEEE 802.1Q VLAN, effective isolation of broadcast domain
• Link Aggregation: Supports static/dynamic link aggregation, provides perfect bandwidth utilization
• QOS: Support COS\DSCP, 4 queues, support WRR\SP scheduling mode
• Security management: Support for ACL access control lists, support for 802.1X
• Management function: Support for WEB, CLI and SNMP management methods
• Monitoring and maintenance: Support for port mirroring, monitoring of interface status, protocol management

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications equipment, small IT and telecommunications equipment B2C

Specifications

• Switch type: Industrial
• Switching capacity: 1.2 TBit/s (Tbps)

Shipping

• WEEE: 71839861

Connections

• Total number of copper ports: 8
• Total number of fiber optic ports: 4
• Total number of PoE ports: 8
• Bandwidth: 10/100/1000 MBit/s
• PoE standard: PoE - 802.3af, PoE+ - 802.3at
• PoE budget: 240 W
• Main port type: Copper
• Number of PoE+ (af/at) ports: 8
• Number of RJ45 ports (1G): 8
• Number of SFP+ ports (10G): 4

Features

• Switch manageable: Yes

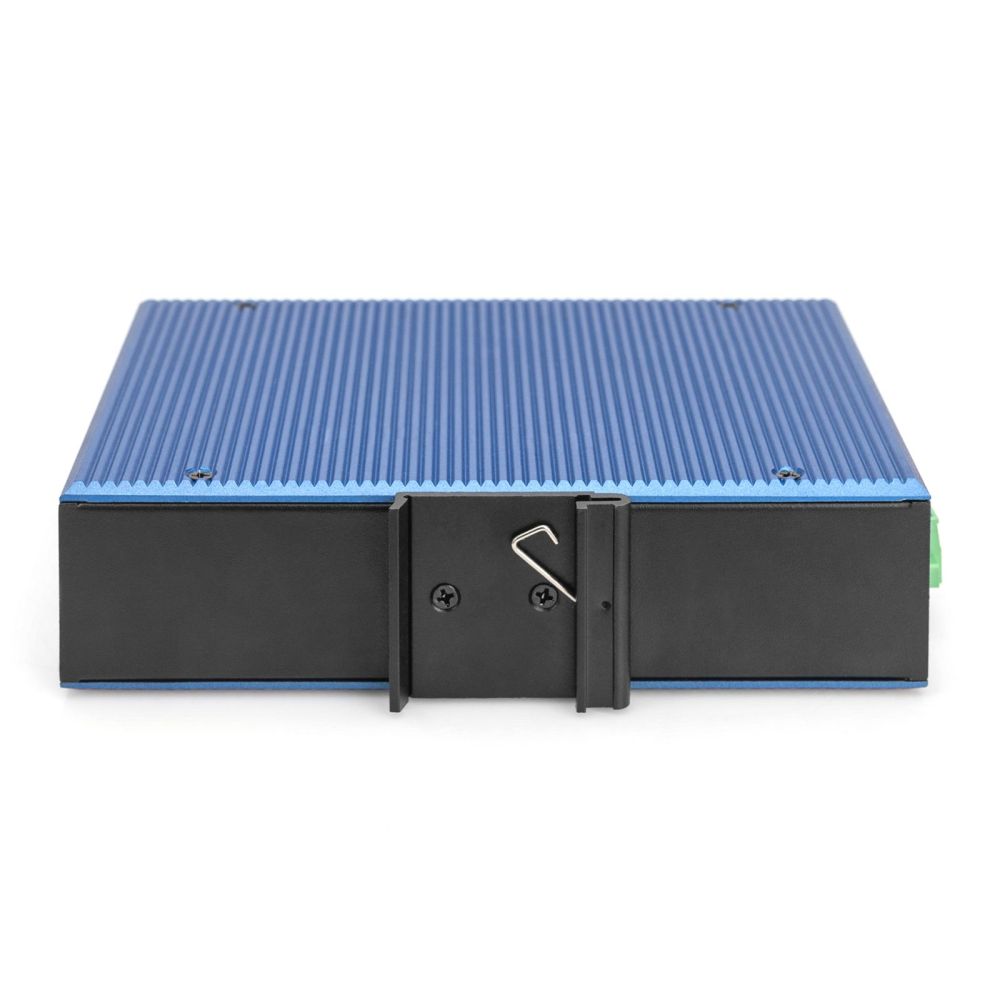

• Mounting type: DIN rail
• IGMP

Power supply

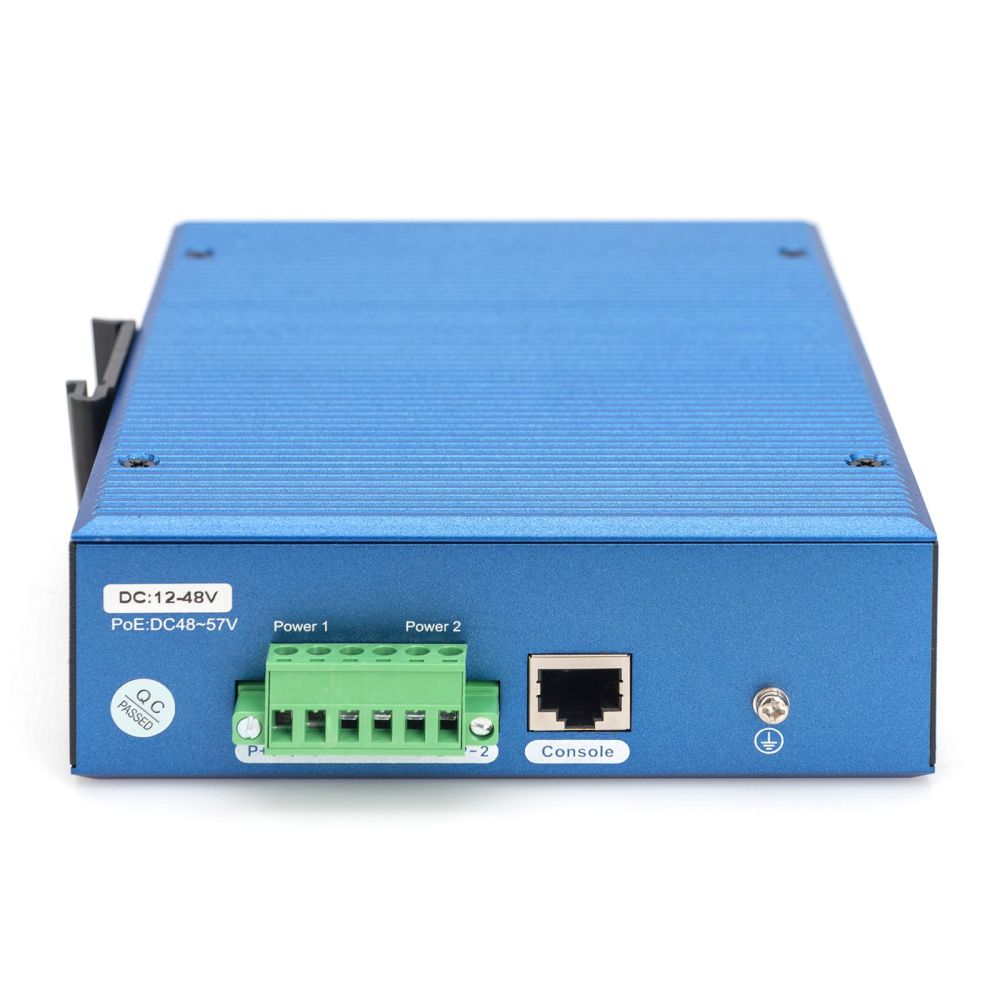

• Power supply: external

Basic properties

• Color: Blue, Black
• Height: 45.5 mm
• Length/Depth: 135 mm
• Width: 175.6 mm
• Weight: 800 g
• icecat Import: 2023/09/21 > Scope of delivery
• Digitus Industrial 8 + 4 10G Uplink Port L3 managed Gigabit Ethernet PoE Switch

Type: DN-651161
