DIGITUS DN-49204 Wall-mounted enclosure SOHO PRO 9 U 460x540x400 mm 48,3 cm ( 19 inch ) grey content_copy

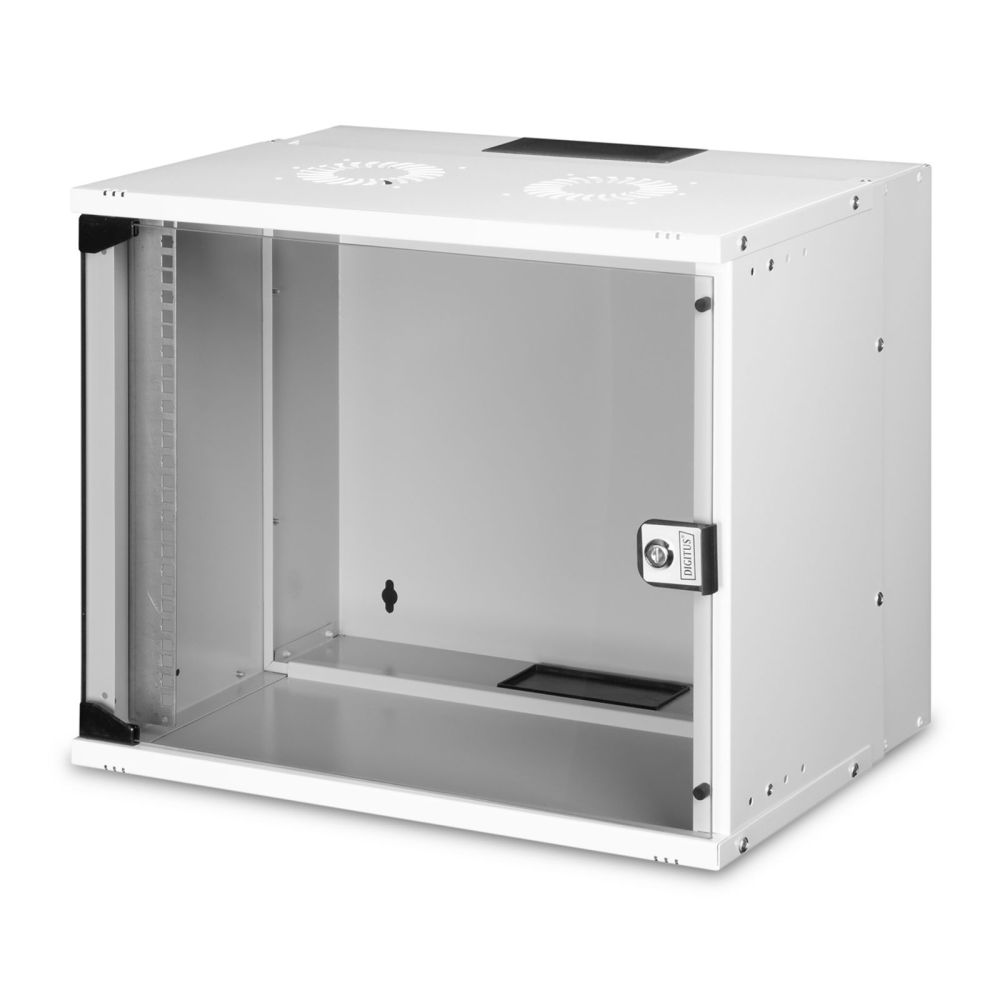

The DIGITUS SOHO PRO series wall housing is characterized by efficient delivery in an optimized flat pack and a particularly user-friendly installation. Whether in the private sector, in the office or for sub-distributions with limited space: with the compact 483 mm (48,3 cm ( 19 inch )) solutions of the SOHO PRO series, you can install your network wherever you want it. The wall housings, which are available in four height units (4HE, 7HE, 9HE, 12HE), are equipped with a full glass door and a cable entry in the roof and floor. A pair of galvanized 483 mm (48,3 cm ( 19 inch )) profile rails labeled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of sheet steel up to 1.5 mm thick. The coloring is done in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). The door hinge can be changed. The network cabinets are delivered unassembled, in an optimized flat pack. Assembly takes place in just a few steps and is child's play thanks to the included step-by-step instructions.

Highlights

• DIGITUS wall housing SOHO PRO
• Delivered unassembled in an optimized flat pack
• Particularly user-friendly, quick installation
• Compact housing for 483 mm (48,3 cm ( 19 inch )) network installations
• 540x400 mm (WxD)

Product type

• Network cabinet
• ear category (ElektroG): irrelevant

Specifications

• Protection class: IP20 - Protection against foreign bodies larger than 12.5 mm / not water-protected
• Number of height units: 9
• Door type: Glass

Shipping

• WEEE: 71839861

Basic properties

• Color: Gray
• Manufacturer color name: light gray, RAL 7035
• Height: 460 mm
• Length/depth: 400 mm
• Width: 540 mm
• Weight: 10.6 kg
• icecat Import: 2024/03/14

Scope of delivery

• DIGITUS 48,3 cm ( 19 inch ) 9HE wall housing, SOHO PRO 460 x 540 x 400 mm
• Installation set (screws, cage nuts, washers)
• 2x keys
• QIG
