DIGITUS DN-19 04U-PB-B wall-mounted enclosure SOHO 3 U 145x500x475 mm black

Your rating:
Average rating
product review for DIGITUS DN-19 04U-PB-B wall-mounted enclosure SOHO 3 U 145x500x475 mm black
( 4.5 / 5 ) 2 ratings

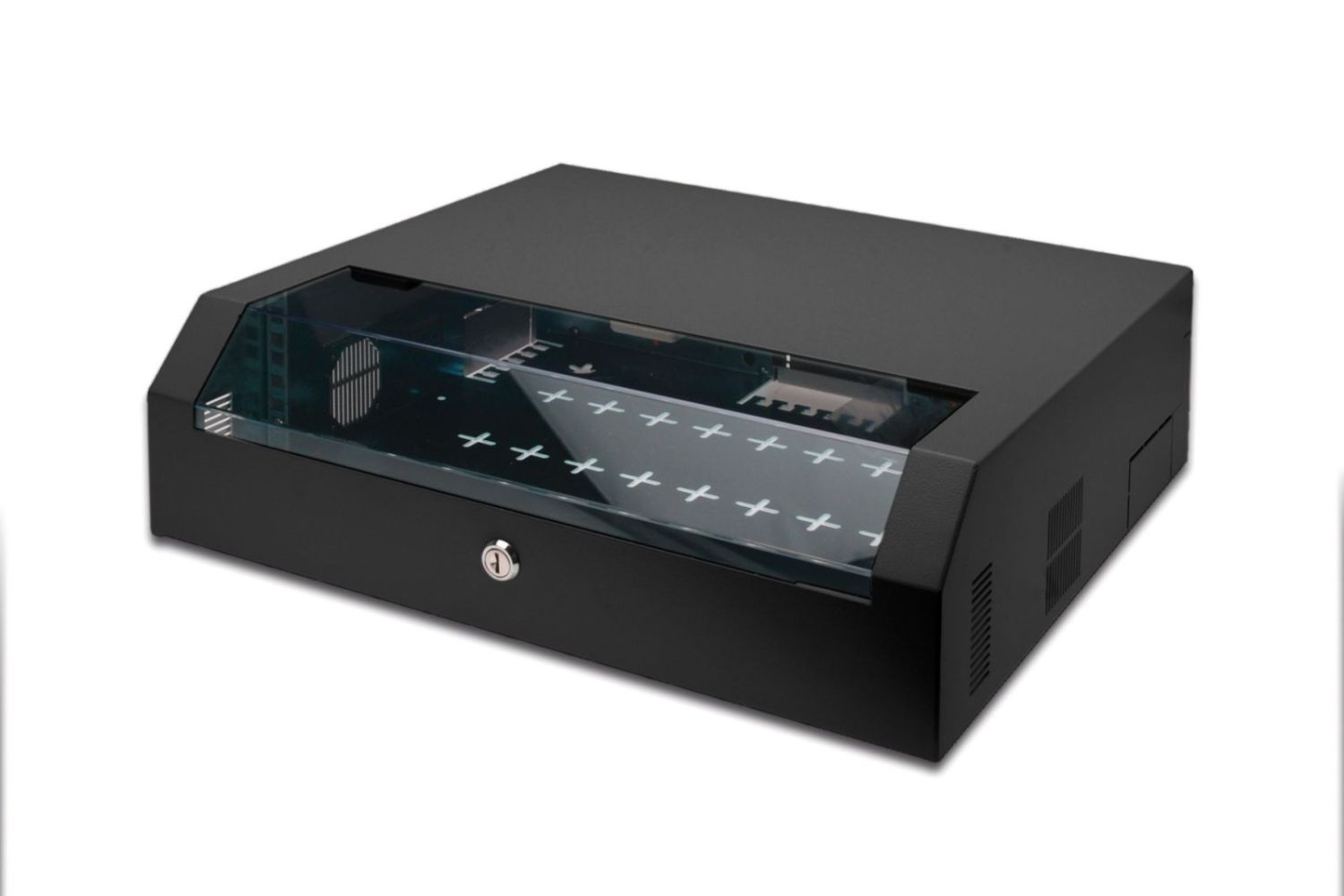

DIGITUS DN-19 04U-PB-B
This image may differ from the desired article.
DIGITUS DN-19 04U-PB-BDIGITUS DN-19 04U-PB-BDIGITUS DN-19 04U-PB-BDIGITUS DN-19 04U-PB-B
227,36 EUR
( 270,56 EUR incl. VAT )
≈ £190.30  |  ≈ $249.87
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x DIGITUS DN-19 04U-PB-B wall-mounted enclosure SOHO 3 U 145x500x475 mm black
Lieske Part No.:112022
Mfg Part No: DN-19 04U-PB-B
UPC/EAN: 4016032345282
Weight:12.835 kg
Type:DN-19 04U-PB-B
Graduated prices net
From piecesPrice per pieces
5215,42 EUR
10203,49 EUR
15191,55 EUR
20179,61 EUR

Product information for DIGITUS DN-19 04U-PB-B:

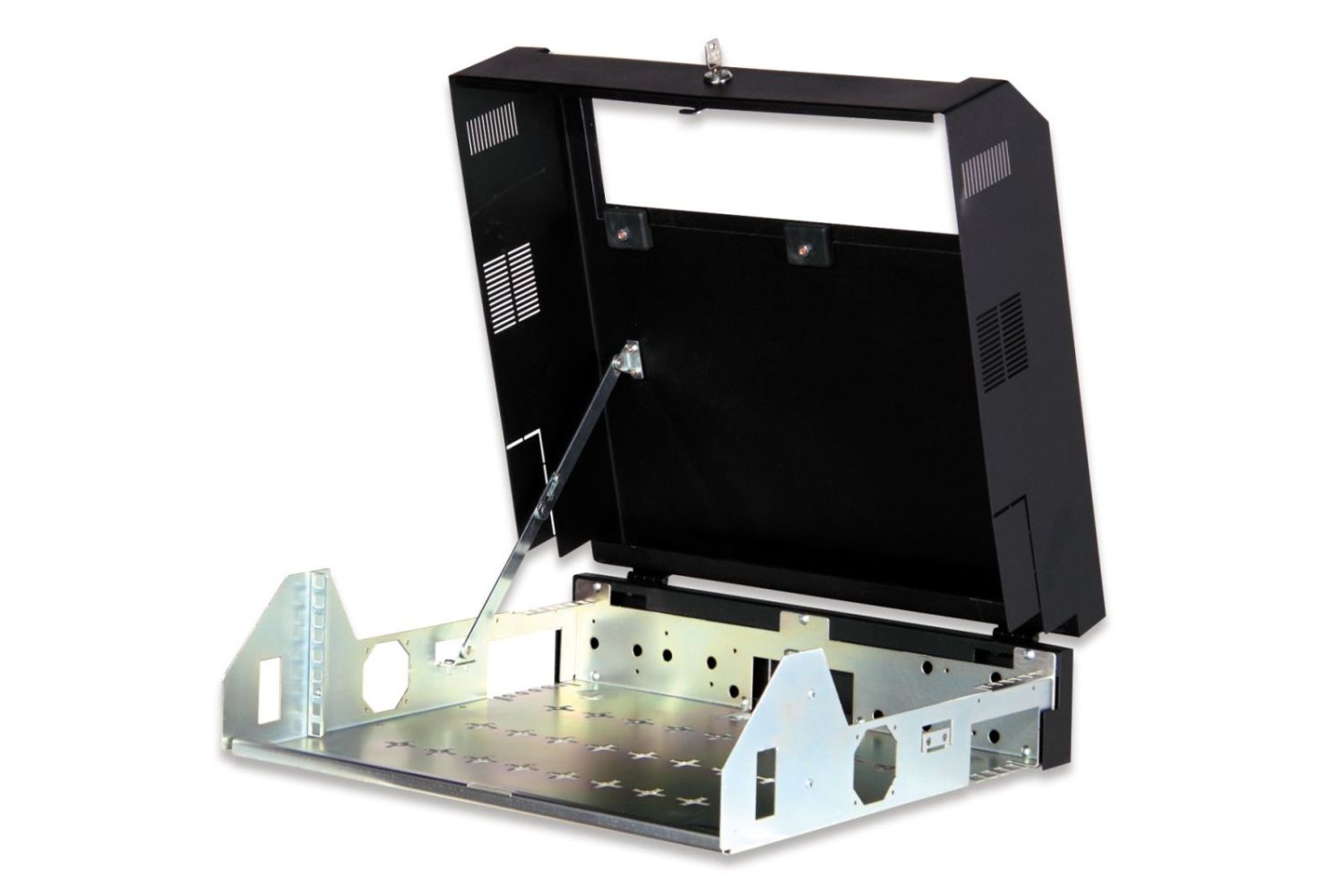

The DIGITUS wall-mounted enclosure SOHO Slim, type DN-19 04U-PB-B, is a compact, wall-mountable network enclosure for use in offices or private environments. It is designed to house active and passive IT components and features a slim design and easy installation. The enclosure is designed for limited space and offers two separate mounting options: on the front side, a rotatable vertical 3HE rail, which can also be positioned horizontally or at an angle, and on the rear side, a fixed horizontal 2HE rail, suitable for passive network components. The maximum mounting depth is approximately 265 mm, with the front rail extending to the rear rail's stop. Mounting is done on the wall, ceiling, or in a raised floor, with the integrated steel door stop mechanism holding the door open. The upper part of the enclosure can be opened up to 80 degrees, facilitating access to installed components.

Applications
This wall-mounted enclosure is intended for use in small network infrastructures, such as home networks, small offices, or SOHO applications (Small Office/Home Office). It is suitable for housing network devices such as switches, routers, modems, or other 19-inch compatible devices. The pre-punched mounting holes in the lower part of the enclosure also allow for the installation of non-483 mm (19-inch) compatible components, such as DSL routers, which cannot be mounted on a standard 19-inch rail. The construction from 2.0 mm thick, powder-coated steel sheet ensures high load capacity and a maximum load of up to 30 kg.

Functions and Features in Detail

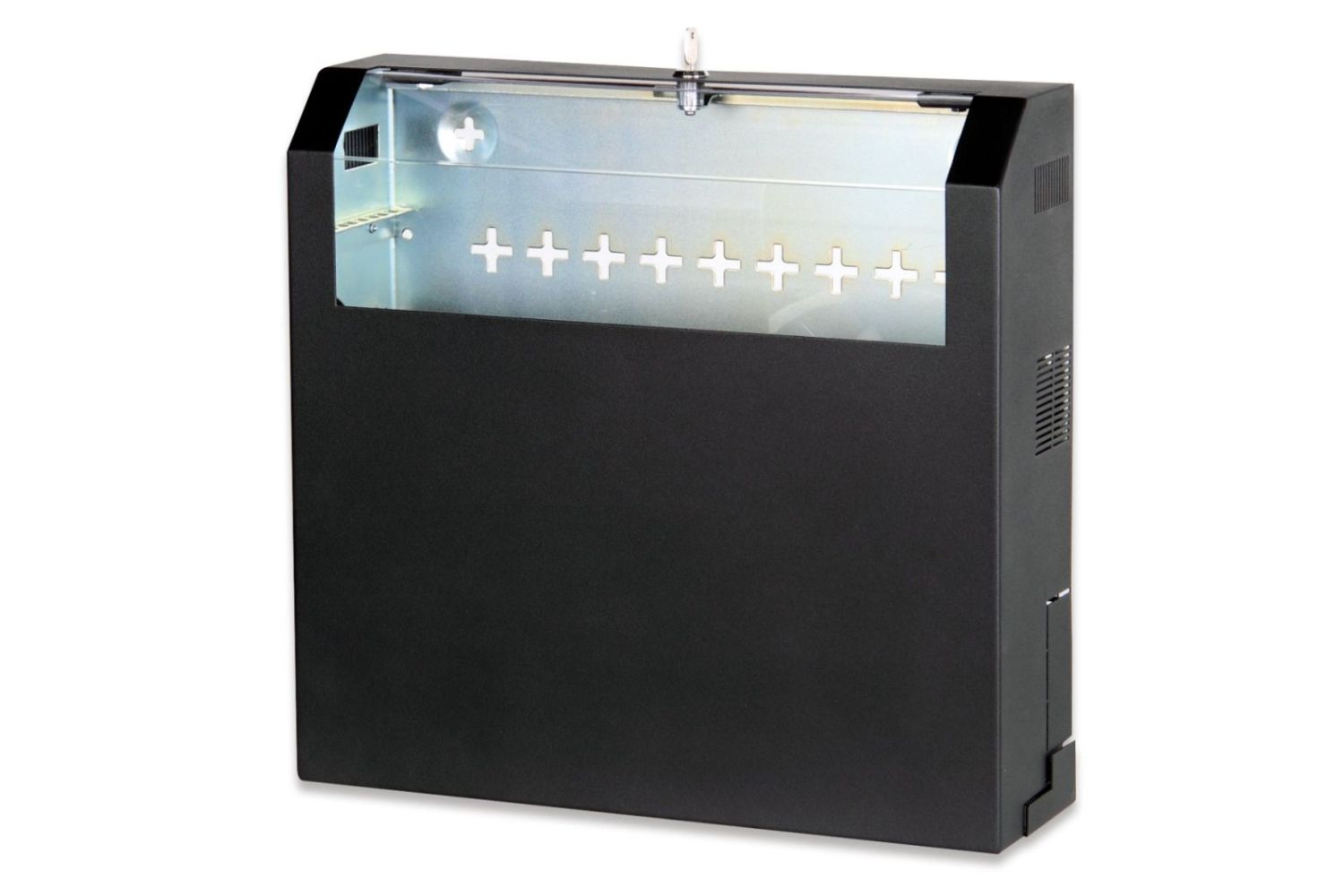

The enclosure features a lockable front door with a transparent polycarbonate panel, allowing visibility of installed components without opening the door. The 1-point locking system ensures secure locking. The pre-punched openings at the bottom support cable routing and simplify cabling. Additionally, ventilation slots are integrated to support passive and active ventilation, ensuring optimal cooling of the devices. A designated area for cable ties is also provided to improve cable organization.

Technology Explained Simply
The rotatable 3HE rail on the front side offers flexibility in mounting, as it can be positioned vertically, horizontally, or at an angle, depending on requirements and space conditions. The fixed 2HE rail on the rear side is intended for devices that should not be mounted on the front, such as patch panels or other passive components. The use of 2.0 mm thick steel sheet ensures a robust construction that remains stable even under higher loads. The powder-coated surface provides additional corrosion protection and a uniform, black (RAL 9005) finish.

Compatibility and Accessories
The enclosure is designed for 19-inch compatible devices, with the front rail offering 3HE (heights) and the rear rail offering 2HE. The mounting holes in the lower section allow for the installation of devices that cannot be mounted on a standard 19-inch rail. An optional mounting plate can be used alternatively to secure non-19-inch compatible devices. The pre-punched openings and designated area for cable ties support structured cabling.

Installation and Mounting
Wall mounting is performed on a flat surface, with the mounting position (wall, ceiling, raised floor) being flexible thanks to the door stop mechanism. Installation is time-saving and does not require special tools, as the mounting holes are pre-punched. The front rail can be rotated into various positions as needed, allowing individual adaptation to the specific environment.

Operational Advantages
The enclosure provides a compact yet functional solution for housing network devices. The combination of a lockable door, transparent front panel, and ventilation slots ensures security, clarity, and thermal stability. The simple installation and flexibility in positioning the rails facilitate installation and maintenance. The robust construction from steel sheet ensures long service life even under load.

General
Degree of protectionnot specified
Load capacity30 kg
Front doorTransparent polycarbonate panel
Locking1-point locking
Door stopmade of steel
Max. mounting depth265 mm
Front rail3HE rotatable
Rear rail2HE fixed
Material2.0 mm thick steel sheet, powder-coated
ColourBlack (RAL 9005)
VentilationVentilation slots for active and passive ventilation
Cable routingpre-punched cable entries
MountingWall-mountable, also on ceiling or in raised floor
Opening angleup to 80 degrees
