B-GRADE-ITEM! BGRADEITEM! Dell Pro Micro QCM1250 Micro Core i5 i5-14500T i514500T (20PN3)
|
660,32 EUR |
|
|
( 785,78 EUR incl. VAT ) ≈ £555.99 | ≈ $741.54 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2122162 |
| Mfg Part No: | 20PN3 |
| UPC/EAN: | 5397184936221 |
| Weight: | 0.123 kg |
| Audio | |
| Audio chip | Realtek ALC3204 |
| Audio system | High Definition Audio |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 77.6 |
| Carbon emissions, manufacturing (kg of CO2e) | 41.52 |
| Carbon emissions, logistics (kg of CO2e) | 2.17 |
| Carbon emissions, energy usage (kg of CO2e) | 33.45 |
| Carbon emissions, end-of-life (kg of CO2e) | 0.54 |
| PAIA version | GaBi version 1, 2024 |
| Design | |
| Chassis type | Micro PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Cable lock slot | |
| Display | |
| Display included | |
| Graphics | |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Discrete graphics card | |
| On-board graphics card | |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory channels | Single-channel |
| Memory data transfer rate | 4800 MT/s |
| Non-ECC | |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel WGI219LM |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Antenna design | Internal |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Neural processor unit (NPU) | |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.26 G |
| Non-operating vibration | 1.37 G |
| Operating shock | 40 G |
| Non-operating shock | 105 G |
| Packaging content | |
| Mouse included on selected markets | Dell Optical Mouse-MS116 - Black |
| Keyboard included on selected markets | Dell Wired Keyboard - KB216 - UK (QWERTY) - Black |
| Performance | |
| Market positioning | Business |
| Motherboard chipset | Intel® Q870 |
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | |

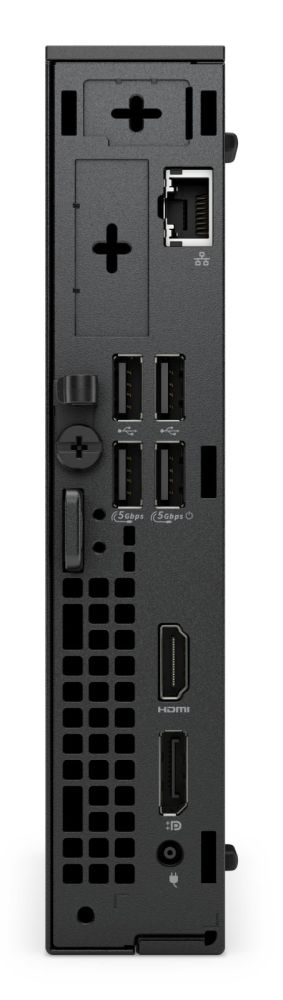

| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of rear USB ports | 4 |
| Number of front USB ports | 2 |
| Number of front audio ports | 1 |
| Combo headphone/mic port | |
| DC-in jack | |
| Power | |
| Power supply | 90 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 / 60 Hz |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor model | i5-14500T |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core base frequency | 1.2 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 35 W |
| Maximum turbo power | 92 W |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Trial software | Activate Your Microsoft 365 For A 30 Day Trial |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Optical drive type | |
| NVMe | |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, EPEAT Climate +, EPEAT Gold |
| Weight & dimensions | |
| Width | 36 mm |
| Depth | 178 mm |
| Height | 182 mm |
| Weight | 1.16 kg |
