DELL 0RR2N Pro Max Slim FCS1250 U7-265 1x32/1TB RTX A1000 W11P content_copy

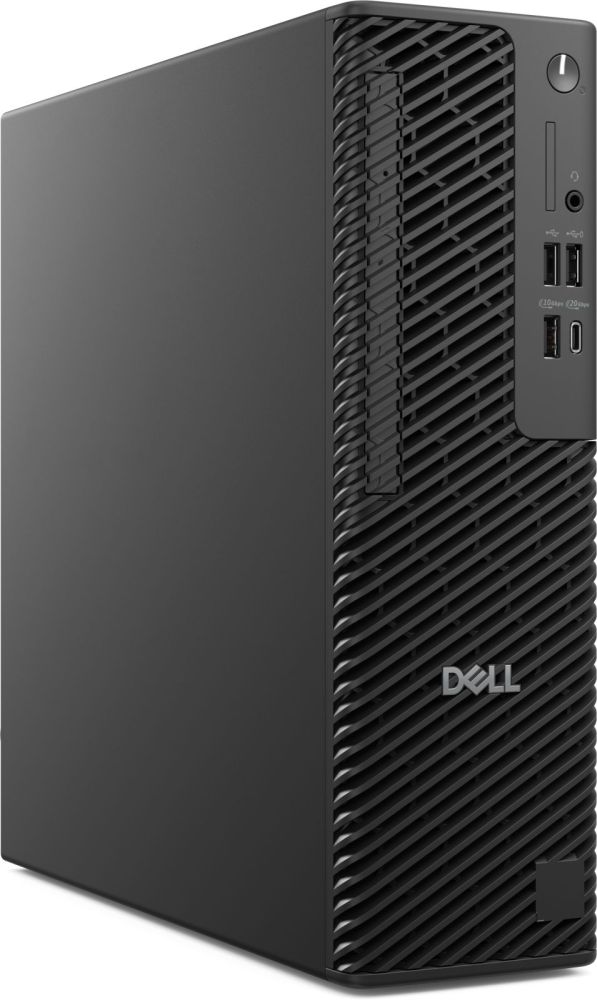

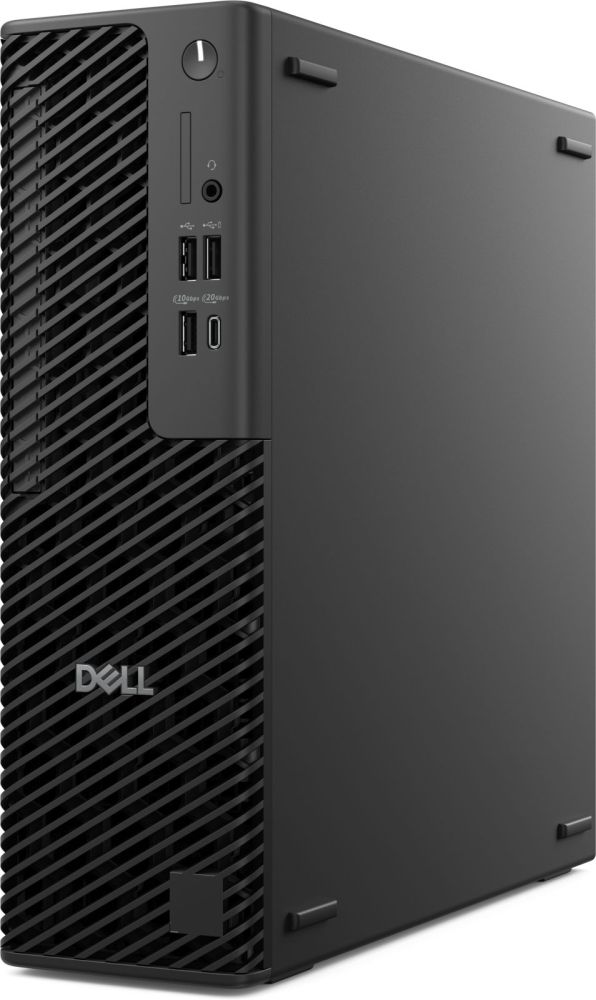

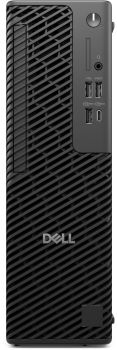

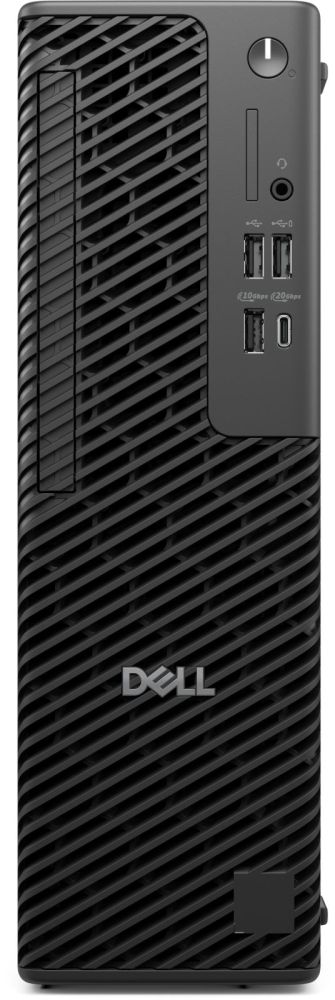

The Dell Pro Max Slim FCS1250 is a compact desktop computer designed for professional work environments. It features an Intel Core Ultra 7 265 processor of the second generation, configured with 20 cores and 20 threads. The performance cores operate at a base frequency of 2.4 GHz and reach a maximum turbo frequency of 5.2 GHz, while the efficient cores have a base frequency of 1.8 GHz and a maximum turbo frequency of 4.6 GHz. The processor includes a Smart Cache of 30 MB and a base power of 65 W, with a maximum turbo power of up to 182 W. The integrated Neural Processing Unit (NPU), known as Intel AI Boost, supports AI software frameworks such as DirectML, OpenVINO, Windows ML, ONNX RT, and WebNN. The NPU achieves a performance of up to 13 Tera-operations per second, while the total processor performance reaches up to 33 Tera-operations per second. GPU performance is up to 8 Tera-operations per second. The NPU also supports sparsity and Windows Studio effects, enabling processing of AI-based applications and real-time video effects.

Applications

The Pro Max Slim FCS1250 is suitable for professional applications requiring high computing power and parallel processing, such as data analysis, AI development, CAD design, video editing, and virtual work environments. The combination of a powerful processor, integrated NPU, and dedicated graphics card makes it particularly suitable for companies investing in efficient and scalable IT infrastructures. The compact slim design allows flexible placement, for example under a desk or in a rack, without compromising performance.

Features and Specifications in Detail

The computer is equipped with 32 GB DDR5-SDRAM operating at a data transfer rate of 5600 MT/s. The maximum memory capacity is 128 GB, with four SO-DIMM slots available. The memory configuration consists of one module with 32 GB. As storage, a 1 TB SSD in M.2 form factor 2280 (22 x 80 mm) is installed, operating via a PCI Express 4.0 interface with NVMe support. The SSD uses TLC technology, offering a good balance between speed and storage endurance. No optical drive is included.

Technology Explained Simply

The integrated graphics are based on the Intel graphics family, while a separate graphics card, the NVIDIA RTX A1000 with 8 GB GDDR6 memory, is installed. This combination enables both the display of demanding graphics applications and the use of professional 3D modeling and rendering software. The RTX A1000 is optimized for professional applications and provides stable performance at high resolutions. The graphics card features dedicated memory for processing large volumes of graphics data. The integrated graphics support up to four Mini-DisplayPort connectors, enabling connection to multiple monitors.

Compatibility and Accessories

The computer features an Intel W880 chipset and is equipped with a Trusted Platform Module (TPM) version 2.0, enhancing the security of the system environment. The operating system is Windows 11 Pro, 64-bit, pre-installed. Network connectivity is provided via an Ethernet LAN port (RJ-45) with a data transfer rate of 10/100/1000 Mbit/s, based on 10/100/1000Base-T(X) cabling technology. The LAN controller is an Intel® I219-LM. WLAN is not integrated.

Ports and Interfaces

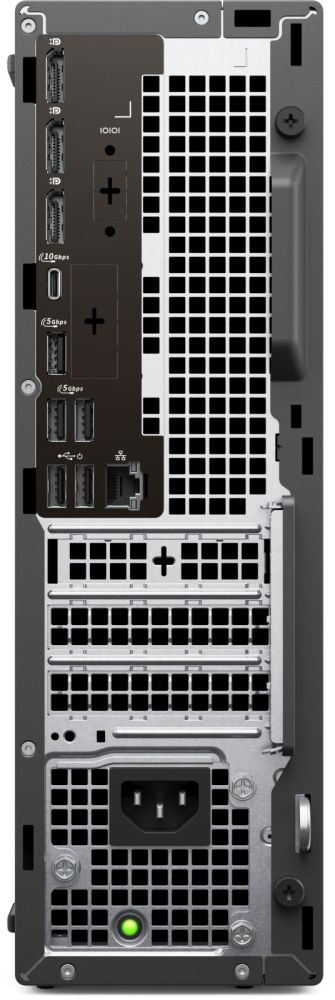

On the front and rear of the device, there are a total of four USB 2.0 ports, three USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports, one USB 3.2 Gen 2 (3.1 Gen 2) Type-A port, one USB 3.2 Gen 2 (3.1 Gen 2) Type-C port, and one USB 3.2 Gen 2x2 Type-C port. Additionally, there are three DisplayPort connectors (version 1.4a), one combined headphone/microphone jack, one DC power connector, and two SATA III connectors. Expansion options include one PCI-Express x1 (Gen 3.x) slot.

Installation and Mounting

The Pro Max Slim FCS1250 is designed as a slim PC and can be placed on a desk or in a rack without additional mounting accessories. The power supply is 360 W. Installation is performed via the designated connectors and slots. Power is supplied through the DC connector. Setup is done via the integrated Windows 11 Pro operating system.

Operational Advantages

The Pro Max Slim FCS1250 offers high performance density in a compact housing. The combination of a powerful processor, integrated NPU, and dedicated graphics card enables efficient processing of demanding applications. The DDR5-SDRAM memory architecture and NVMe SSD ensure fast data access. Support for Windows Studio effects and AI software frameworks makes the computer particularly suitable for modern work environments. Integrated security via TPM 2.0 increases protection against unauthorized access. The wide range of ports and interfaces allows flexible integration into existing IT infrastructures. The device is designed for use in office environments and professional workstations, where reliability and performance are paramount.

Audio
Audio chip	Realtek ALC3204
Audio system	High Definition Audio
Carbon footprint
Total carbon footprint (kg of CO2e)	202
Carbon emissions, manufacturing (kg of CO2e)	95.75
Carbon emissions, logistics (kg of CO2e)	10.1
Carbon emissions, energy usage (kg of CO2e)	92.72
Carbon emissions, end-of-life (kg of CO2e)	3.64
PAIA version	GaBi version 1, 2024
Design
Chassis type	Slim PC
Cable lock slot type	Kensington
Product colour	Black
Cable lock slot
Intel® vPro™ Platform Eligibility
Display
Display included
Expansion slots
PCI Express x1 (Gen 3.x) slots	1
PCI Express x4 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX A1000
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
Number of discrete graphics cards	1
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Graphics card Mini DisplayPort ports quantity	4
Discrete graphics card
On-board graphics card
Memory
Internal memory	32 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 32 GB
Memory slots	4x SO-DIMM
Memory data transfer rate	5600 MT/s
Non-ECC
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel® I219-LM
Ethernet LAN
Wi-Fi
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Sparsity support
Windows Studio effects support
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Packaging content
Mouse included on selected markets	Dell Optical Mouse-MS116 - Black
Keyboard included on selected markets	Dell Wired Keyboard - KB216 - UK (QWERTY) - Black
Cables included	AC
Performance
Motherboard chipset	Intel W880
Product type	PC
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)
Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
DisplayPorts quantity	3
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports	1
Number of SATA III connectors	2
Combo headphone/mic port
DC-in jack
Power
Power supply	360 W
Power supply input voltage	90 - 264 V
Power supply input frequency	47/63 Hz
80 PLUS certification	80 PLUS Platinum
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel Core Ultra (Series 2)
Processor model	265
Processor cores	20
Processor threads	20
Processor boost frequency	5.3 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	2.4 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	30 MB
Processor cache type	Smart Cache
Processor base power	65 W
Maximum turbo power	182 W
Processor special features
Intel® Active Management Technology (Intel® AMT)
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Trial software	Activate Your Microsoft 365 For A 30 Day Trial
Storage
Total storage capacity	1 TB
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD memory type	TLC
SSD interface	PCI Express 4.0
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Optical drive type
NVMe
Sustainability
Doesn't contain	PVC/BFR
Weight & dimensions
Width	95 mm
Depth	293 mm
Height	303.5 mm
Weight	6.11 kg

---
