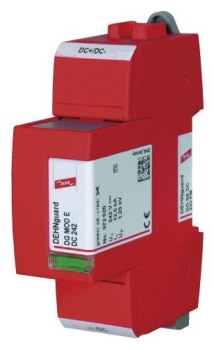

DEHN 972125 DG SE DC 242 FM surge arrester Type2 guard SE DC 1-pole Uc 242 VDC
|
175,28 EUR 177,31 EUR |
|||||||||||
|
( 208,58 EUR incl. VAT ) ≈ £146.71 | ≈ $192.63 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1336884 | ||||||||||
| Mfg Part No: | 972125 | ||||||||||
| UPC/EAN: | 4013364158610 | ||||||||||
| Weight: | 0.174 kg | ||||||||||
| Type: | DG SE DC 242 FM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 972125:
| General | |
| SPD as per IEC 61643-41 / EN IEC 61643-41 | Type 2 |
| Energy coordination with terminal equipment (≤ 10 m) | type 2 + type 3 |
| Nominal voltage (d.c.) (UN) | 220 V |
| Max. continuous operating voltage DC (UC) | 242 V |
| Nominal discharge current (8/20 µs) (In) | 12.5 kA |
| Voltage protection level (UP) | ≤ 1.25 kV |
| Response time (tA) | ≤ 25 ns |
| Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (ISCCR) | 5 kA |
| Max. mains-side overcurrent protection | 63 A gG |
| TOV (DC), 1.5x (UT) – characteristics | 363 V / 5 sec. – withstand |
| TOV (DC), 2x (UT) – characteristics | 484 V / 120 min. – safe failure |
| Continuous current (DC) (IC) | ≤ 100 µA |
| Protective conductor current (DC) (IPE) | ≤ 100 µA |
| Protective conductor current (AC) (IPE) | < 1 mA |
| Condition at the end of life time of the SPD A | Open Circuit Mode (OCM) |
| Overvoltage category (OVC) main circuit | lll |
| Insulation between main and remote circuit | Double insulation |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Number of ports | 1 |
| Cross-sectional area (min.) | 1.5 mm2 solid / fine-stranded / 6 mm2 stranded |
| Cross-sectional area (max.) | 16 mm2 solid / 35 mm2 stranded / 25 mm2 fine-stranded |
| For mounting on | 35 mm DIN rails acc. to EN 60715 |
| Enclosure material | thermoplastic, red, UL 94 V-0 |
| Place of installation | indoor installation |
| Degree of protection | IP20 |
| Capacity | 1.5 Standard DIN module, DIN 43880 |
| Type of remote signalling contact | changeover contact |
| Switching capacity (a.c.) | 250 V / 0.5 A |
| Switching capacity (d.c.) | 250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A |
| Cross-sectional area for remote signalling terminals | max. 1.5 mm2 solid / flexible |
| Extended technical data | |
| Max. prospective short-circuit current (DC) (Ik) | 25 kA |
Questions & answers
What is the delivery time of DEHN 972125 DG SE DC 242 FM surge arrester Type2 guard SE DC 1-pole Uc 242 VDC?
The article DEHN 972125 DG SE DC 242 FM surge arrester Type2 guard SE DC 1-pole Uc 242 VDC is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 972125 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 972125 DG SE DC 242 FM surge arrester Type2 guard SE DC 1-pole Uc 242 VDC always at the best possible price. We can give you a discount of 2% on DEHN 972125 DG SE DC 242 FM surge arrester Type2 guard SE DC 1-pole Uc 242 VDC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 972125 DG SE DC 242 FM surge arrester Type2 guard SE DC 1-pole Uc 242 VDC we can offer you a price of 164,76 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
