DEHN 972110 DG SE DC 60 surge arrester Type 2 guard 1p Uc 60 V DC

Your rating:
Average rating
product review for DEHN 972110 DG SE DC 60 surge arrester Type 2 guard 1p Uc 60 V DC
( 4.7 / 5 ) 7 ratings

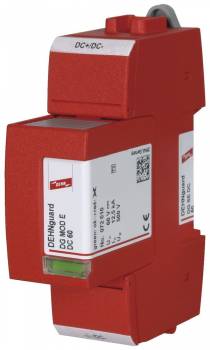

DEHN 972110
This image may differ from the desired article.
DEHN 972110DEHN 972110
156,75 EUR 158,60 EUR
( 186,53 EUR incl. VAT )
≈ £131.20  |  ≈ $172.27
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 972110 DG SE DC 60 surge arrester Type 2 guard 1p Uc 60 V DC
Datasheet:file_download Download
Lieske Part No.:1336893
Mfg Part No: 972110
UPC/EAN: 4013364158504
Weight:0.16 kg
Type:DG SE DC 60
Graduated prices net
From piecesPrice per pieces
5147,35 EUR
10137,94 EUR
15128,54 EUR
20119,13 EUR

Product information for DEHN 972110:

Single-pole surge arrester DEHNguard SE DC, type 2 according to EN 61643-11, consisting of a base part and a plugged-in protection module. High device safety thanks to the powerful DC switching device DCD, which is specially designed for use in DC circuits. For protecting DC consumer systems against overvoltages. For use in the lightning protection zone concept at the interfaces 0B - 1 and higher.

General
SPD classification as per EN 61643-11 / ... IEC 61643-11type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)type 2 + type 3
Nominal voltage (d.c.) (UN)48 V
Max. continuous operating voltage DC (UC)60 V
Nominal discharge current (8/20 µs) (In)12.5 kA
Voltage protection level (UP)≤ 0.5 kV
Response time (tA)≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (ISCCR)300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (ISCCR)25 kA
Max. mains-side overcurrent protection35 A gG
Temporary overvoltage (TOV) DC (UT) – characteristic70 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x UC (UT) – characteristic120 V / 120 min. – safe failure
Operating temperature range (TU)-40 °C ... +80 °C
Operating state / fault indicationgreen / red
Number of ports1
Cross-sectional area (min.)1.5 mm2 solid / flexible
Cross-sectional area (max.)35 mm2 stranded / 25 mm2 flexible
For mounting on35 mm DIN rails acc. to EN 60715
Enclosure materialthermoplastic, red, UL 94 V-0
Place of installationindoor installation
Degree of protectionIP 20
Capacity1.5 Standard DIN module, DIN 43880
Extended technical data
DC and AC operation possibleno


Product data sheet
Datasheet for DEHN 972110, EAN: 4013364158504

Questions & answers

What is the delivery time of DEHN 972110 DG SE DC 60 surge arrester Type 2 guard 1p Uc 60 V DC?

The article DEHN 972110 DG SE DC 60 surge arrester Type 2 guard 1p Uc 60 V DC is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 972110 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 972110 DG SE DC 60 surge arrester Type 2 guard 1p Uc 60 V DC always at the best possible price. We can give you a discount of 2% on DEHN 972110 DG SE DC 60 surge arrester Type 2 guard 1p Uc 60 V DC if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 972110 DG SE DC 60 surge arrester Type 2 guard 1p Uc 60 V DC we can offer you a price of 147,35 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
