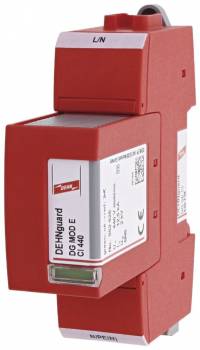

DEHN 952920 DG SE CI 440 FM surge protector Type2 guard SE
|
191,61 EUR 193,84 EUR |
|||||||||||
|
( 228,02 EUR incl. VAT ) ≈ £160.38 | ≈ $210.58 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1903687 | ||||||||||
| Mfg Part No: | 952920 | ||||||||||
| UPC/EAN: | 4013364322622 | ||||||||||
| Weight: | 0.178 kg | ||||||||||
| Type: | DG SE CI 440 FM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 952920:
| General | |
| Energy coordination with terminal equipment (≤ 10 m) | type 2 + type 3 |
| Nominal voltage (a.c.) (UN) | 400 V (50 / 60 Hz) |
| Max. continuous operating voltage (AC) (UC) | 440 V (50 / 60 Hz) |
| Nominal discharge current (8/20 µs) (In) | 12.5 kA |
| Voltage protection level (UP) | ≤ 2 kV |
| Response time (tA) | ≤ 25 ns |
| Max. mains-side overcurrent protection | not required |
| Rated breaking capacity of the internal backup protection | 25 kA |
| Short-circuit withstand capability (ISCCR) | 25 kArms |
| Temporary overvoltage (UT) – characteristic | 580 V / 5 sec. – withstand, 765 V / 120 min. – safe failure |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Number of ports | 1 |
| Cross-sectional area (min.) | 1.5 mm2 solid / flexible |
| Cross-sectional area (max.) | 35 mm2 stranded / 25 mm2 flexible |
| For mounting on | 35 mm DIN rails acc. to EN 60715 |
| Enclosure material | thermoplastic, red, UL 94 V-0 |
| Place of installation | indoor installation |
| Degree of protection | IP 20 (integrated) |
| Capacity | 1.5 Standard DIN module, DIN 43880 |
| Approvals | DEKRA |
| Type of remote signalling contact | changeover contact |
| Switching capacity (a.c.) | 250 V / 0.5 A |
| Switching capacity (d.c.) | 250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A |
| Cross-sectional area for remote signalling terminals | max. 1.5 mm2 solid / flexible |
Questions & answers
What is the delivery time of DEHN 952920 DG SE CI 440 FM surge protector Type2 guard SE?
The article DEHN 952920 DG SE CI 440 FM surge protector Type2 guard SE is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 952920 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 952920 DG SE CI 440 FM surge protector Type2 guard SE always at the best possible price. We can give you a discount of 2% on DEHN 952920 DG SE CI 440 FM surge protector Type2 guard SE if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 952920 DG SE CI 440 FM surge protector Type2 guard SE we can offer you a price of 180,11 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
