DEHN 952440 DG M TNS ACI 275 FM surge protection discharge type 2 guard M 4p 275 V ACI

Your rating:
Average rating
product review for DEHN 952440 DG M TNS ACI 275 FM surge protection discharge type 2 guard M 4p 275 V ACI
( 4.4 / 5 ) 34 ratings

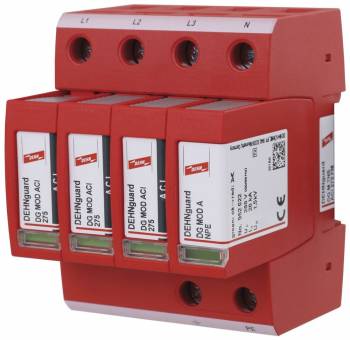

DEHN 952440
This image may differ from the desired article.
DEHN 952440DEHN 952440
591,47 EUR 598,46 EUR
( 703,85 EUR incl. VAT )
≈ £495.06  |  ≈ $650.03
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x DEHN 952440 DG M TNS ACI 275 FM surge protection discharge type 2 guard M 4p 275 V ACI
Datasheet:file_download Download
Lieske Part No.:1003413
Mfg Part No: 952440
UPC/EAN: 4013364376625
Weight:0.45 kg
Type:DG M TNS ACI 275 FM
Graduated prices net
From piecesPrice per pieces
3555,98 EUR
6520,49 EUR
9485,01 EUR
12449,52 EUR

Product information for DEHN 952440:

Surge arrester with ACI technology DEHNguard M TNS ACI 275 FM
4-pole modular, pluggable surge arrester
with integrated ACI switch/spark gap
for 230/400 V TN-S systems, width 4TE
With remote signaling
contact Type 2 arrester according to EN 61643-11
Highest continuous voltage: 275 V ac
Protection level: < 1.5 kV
Nominal leakage surge current: 20 kA
Additional external fuse not necessary
Energetic coordination according to DIN EN 62305-4
Arresters of the Red/Line family
Mechanical defect display for arresters


General
SPD according to EN 61643-11 / IEC 61643-11type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)type 2 + type 3
Nominal voltage (a.c.) (UN)230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-PE] (UC)275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (UC)255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In)20 kA
Voltage protection level [L-PE]/[N-PE] (UP)≤ 1.5 / ≤ 1.5 kV
Response time (tA)≤ 100 ns
Additional external fuse necessarynot required
Short-circuit withstand capability (ISCCR)25 kArms
Temporary overvoltage (UT) – characteristic440 V / 120 min. – withstand
Leakage currentno leakage current
Operating temperature range (TU)-40 °C ... +80 °C
Operating state / fault indicationgreen / red
Number of ports1
Cross-sectional area (min.)1.5 mm2 solid / flexible
Cross-sectional area (max.)35 mm2 stranded / 25 mm2 flexible
For mounting on35 mm DIN rails acc. to EN 60715
Enclosure materialthermoplastic, red, UL 94 V-0
Place of installationindoor installation
Degree of protectionIP 20
Capacity4 Standard DIN module, DIN 43880
ApprovalsKEMA
Type of remote signalling contactchangeover contact
Switching capacity (a.c.)250 V / 0.5 A
Switching capacity (d.c.)250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminalsmax. 1.5 mm2 solid / flexible


Product data sheet
Datasheet for DEHN 952440, EAN: 4013364376625

Questions & answers

What is the delivery time of DEHN 952440 DG M TNS ACI 275 FM surge protection discharge type 2 guard M 4p 275 V ACI?

The article DEHN 952440 DG M TNS ACI 275 FM surge protection discharge type 2 guard M 4p 275 V ACI is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 952440 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 952440 DG M TNS ACI 275 FM surge protection discharge type 2 guard M 4p 275 V ACI always at the best possible price. We can give you a discount of 2% on DEHN 952440 DG M TNS ACI 275 FM surge protection discharge type 2 guard M 4p 275 V ACI if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of DEHN 952440 DG M TNS ACI 275 FM surge protection discharge type 2 guard M 4p 275 V ACI we can offer you a price of 555,98 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
