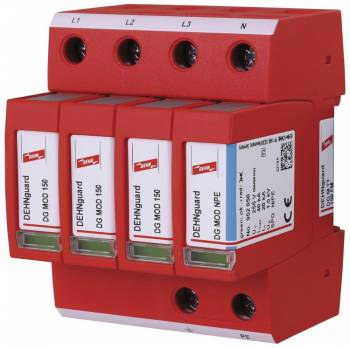

DEHN 952328 DG M TT 150 FM surge arrester Type2 guard M 4p for TT- and TN-S-systems
|
489,92 EUR 495,69 EUR |
|||||||||||
|
( 583,00 EUR incl. VAT ) ≈ £410.06 | ≈ $538.42 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 937272 | ||||||||||
| Mfg Part No: | 952328 | ||||||||||
| UPC/EAN: | 4013364133242 | ||||||||||
| Weight: | 0.39 kg | ||||||||||
| Type: | DG M TT 150 FM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 952328:
| Standards | |
| Certification | UL |
| UL Standard | UL 1449 5th edition |
| UL File Number | E319777 |
| Technical data | |
| Energy coordination with terminal equipment (≤ 10 m) | type 2 + type 3 |
| Nominal voltage (a.c.) (UN) | 120 / 240 V (50 / 60 Hz) |
| Max. continuous operating voltage (a.c.) [L-N] (UC) | 150 V (50 / 60 Hz) |
| Max. continuous operating voltage (a.c.) [N-PE] (UC) | 255 V (50 / 60 Hz) |
| Nominal discharge current (8/20 µs) (In) | 15 kA |
| Max. discharge current (8/20 µs) (Imax) | 40 kA |
| Combination wave [L-N] (UOC) | 20 kV |
| Combination wave [N-PE] (UOC) | 6 kV |
| Voltage protection level [L-N]/[N-PE] (UP) | ≤ 0.8 / ≤ 1.5 kV |
| Voltage protection level [L-N]/[N-PE] at 5 kA (UP) | ≤ 0.55 / ≤ 1.5 kV |
| Protective conductor current (IPE) | ≤ 10 µA |
| Response time [L-N] (tA) | ≤ 25 ns |
| Response time [N-PE] (tA) | ≤ 100 ns |
| Max. mains-side overcurrent protection | 125 A gG |
| Short-circuit withstand capability for max. mains-side overcurrent protection (ISCCR) | 50 kArms |
| Temporary overvoltage (TOV) [L-N] (UT) – Characteristic | 175 V / 5 sec. – Festigkeit, 230 V / 120 min. – sicherer Ausfall |
| Temporary overvoltage (TOV) [N-PE] (UT) - Characteristic | 1200 V / 200 ms – withstand |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Number of ports | 1 |
| Cross-sectional area (min.) | 1.5 mm2 solid / flexible |
| Cross-sectional area (max.) | 35 mm2 stranded / 25 mm2 flexible |
| For mounting on | 35 mm DIN rails acc. to EN 60715 |
| Enclosure material | thermoplastic, red, UL 94 V-0 |
| Place of installation | indoor installation |
| Degree of protection | IP 20 (integrated) |
| Capacity | 4 Standard DIN module, DIN 43880 |
| Approvals | UL |
| Type of remote signalling contact | changeover contact |
| Switching capacity (a.c.) | 250 V / 0.5 A |
| Switching capacity (d.c.) | 250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A |
| Cross-sectional area for remote signalling terminals | max. 1.5 mm2 solid / flexible |
| Test values according to UL 1449 | |
| Rated Voltage (AC, 50/60 Hz) | 120 V |
| MCOV (AC, 50/60 Hz) [L-N]/[L-G]/[N-G] | 150 V |
| Nominal discharge current (8/20µs) ( In) | 15 kA |
| Maximum ambient temperature | 85 °C |
| UL 1449 edition | 5th edition |
| Type (SPD classification) | Type 4 component assembly |
Questions & answers
What is the delivery time of DEHN 952328 DG M TT 150 FM surge arrester Type2 guard M 4p for TT- and TN-S-systems?
The article DEHN 952328 DG M TT 150 FM surge arrester Type2 guard M 4p for TT- and TN-S-systems is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 952328 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 952328 DG M TT 150 FM surge arrester Type2 guard M 4p for TT- and TN-S-systems always at the best possible price. We can give you a discount of 2% on DEHN 952328 DG M TT 150 FM surge arrester Type2 guard M 4p for TT- and TN-S-systems if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of DEHN 952328 DG M TT 150 FM surge arrester Type2 guard M 4p for TT- and TN-S-systems we can offer you a price of 460,52 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
