DEHN 952111 DG M TT 2P 385 surge arrester Type2 guard M 1ph.TT- and TN-systems

Your rating:
Average rating
product review for DEHN 952111 DG M TT 2P 385 surge arrester Type2 guard M 1ph.TT- and TN-systems
( 4.1 / 5 ) 8 ratings

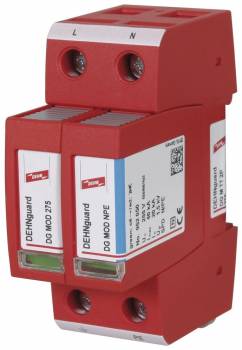

DEHN 952111
This image may differ from the desired article.
DEHN 952111DEHN 952111DEHN 952111
227,91 EUR 230,57 EUR
( 271,21 EUR incl. VAT )
≈ £190.76  |  ≈ $250.47
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 952111 DG M TT 2P 385 surge arrester Type2 guard M 1ph.TT- and TN-systems
Datasheet:file_download Download
Lieske Part No.:938484
Mfg Part No: 952111
UPC/EAN: 4013364119420
Weight:0.248 kg
Type:DG M TT 2P 385
Graduated prices net
From piecesPrice per pieces
5214,24 EUR
10200,56 EUR
15186,89 EUR
20173,21 EUR

Product information for DEHN 952111:

Mehrpoliger Überspannungsableiter DEHNguard M, Typ 2 nach EN 61643-11, bestehend aus Basisteil und gesteckten Schutzmodulen. Hohe Gerätesicherheit durch Ableiterüberwachung mit Thermo-Dynamik-Control. Zum Schutz von Niederspannungs-Verbraucheranlagen vor Überspannungen. Zum Einsatz im Blitz-Schutzzonen-Konzept an den Schnittstellen 0B - 1 und höher.

Technical data
Energy coordination with terminal equipment (≤ 10 m)type 2 + type 3
Nominal voltage (a.c.) (UN)230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (UC)385 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (UC)255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In)20 kA
Max. discharge current (8/20 µs) (Imax)40 kA
Combination wave [L-N] (UOC)20 kV
Combination wave [N-PE] (UOC)6 kV
Voltage protection level [L-N]/[N-PE] (UP)≤ 1.75 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (UP)≤ 1.35 / ≤ 1.5 kV
Protective conductor current (IPE)≤ 10 µA
Response time [L-N] (tA)≤ 25 ns
Response time [N-PE] (tA)≤ 100 ns
Max. mains-side overcurrent protection125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (ISCCR)25 kArms
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic335 V / 5 sec. – Festigkeit, 440 V / 120 min. – Festigkeit
Temporary overvoltage (TOV) [N-PE] (UT) - Characteristic1200 V / 200 ms – withstand
Operating temperature range (TU)-40 °C ... +80 °C
Operating state / fault indicationgreen / red
Number of ports1
Cross-sectional area (min.)1.5 mm2 solid / flexible
Cross-sectional area (max.)35 mm2 stranded / 25 mm2 flexible
For mounting on35 mm DIN rails acc. to EN 60715
Enclosure materialthermoplastic, red, UL 94 V-0
Place of installationindoor installation
Degree of protectionIP 20 (integrated)
Capacity2 Standard DIN module, DIN 43880
ApprovalsDEKRA


Product data sheet
Datasheet for DEHN 952111, EAN: 4013364119420

Questions & answers

What is the delivery time of DEHN 952111 DG M TT 2P 385 surge arrester Type2 guard M 1ph.TT- and TN-systems?

The article DEHN 952111 DG M TT 2P 385 surge arrester Type2 guard M 1ph.TT- and TN-systems is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 952111 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 952111 DG M TT 2P 385 surge arrester Type2 guard M 1ph.TT- and TN-systems always at the best possible price. We can give you a discount of 2% on DEHN 952111 DG M TT 2P 385 surge arrester Type2 guard M 1ph.TT- and TN-systems if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 952111 DG M TT 2P 385 surge arrester Type2 guard M 1ph.TT- and TN-systems we can offer you a price of 214,24 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
